ZF Hinge Lever Micro Switch Left Angle PCB Terminal 50mA 125V ac 30V dc SPDT IP40 DG23-B3LA

Free Delivery in India | Lowest Global Shipping Charges

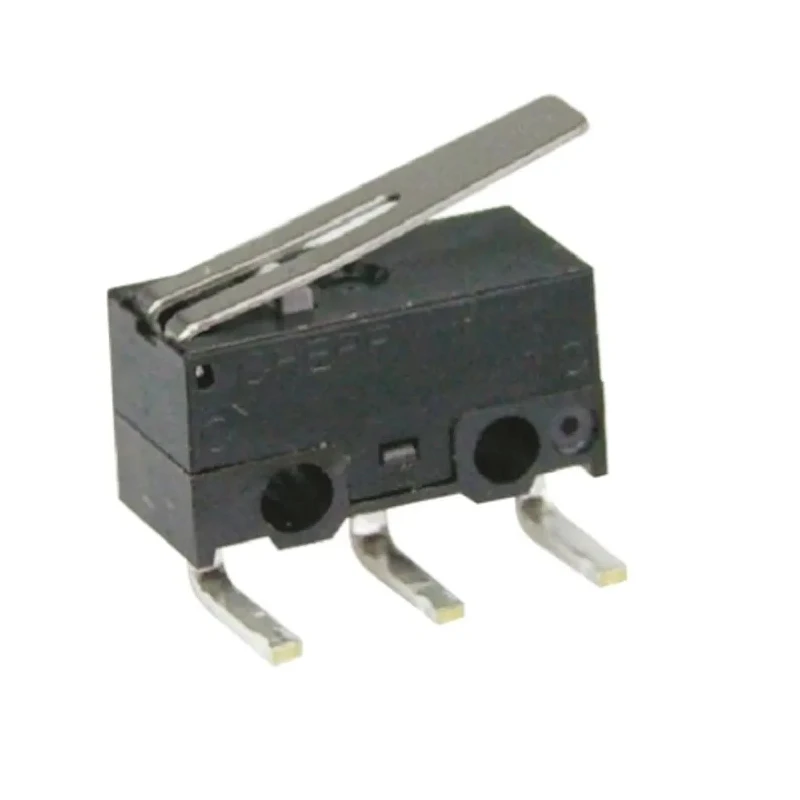

ZF Hinge Lever Micro Switch Left Angle PCB Terminal 50mA 125V ac 30V dc SPDT IP40 DG23-B3LA



Category Micro Switches Brand ZF Condition New

Specifications

Country of Origin	China
Brand	ZF
Operating Temperature Range	-25 to +85°C
Length	12.8mm
Model	DG23-B3LA
IP Rating	IP40
Housing Material	Polyphenylene Sulphide
Series	DG Sub-Miniature
Maximum Operating Temperature	85°C
Contact Configuration	SPDT
Actuator Type	Hinge Lever
Minimum Operating Temperature	-25°C
Terminal type	Left Angle PCB Terminal
Standards/Approvals	RoHS
Contact DC Voltage	30V dc
Switch Contact Current	50mA
Operating Force	0.44N
Mechanical Life	1000000Operations
Contact AC Voltage	125V ac
Microswitch Type	DG Subminiature

Key Features

Operates with a hinge lever actuator designed for precise switching applications.
Left angle PCB terminals facilitate easy PCB mounting.
Silver-plated SPDT contacts support reliable current switching up to 50mA.
Housing made from durable polyphenylene sulphide material compliant with UL94V-0 flame rating.
Operates reliably in temperatures ranging from -25°C to 85°C.
Mechanical life rated at 1,000,000 operations for long-term durability.
Compact length of 12.8 mm suitable for subminiature applications.
Meets RoHS environmental compliance standards.

Product Description

ZF DG23-B3LA is a subminiature hinge lever micro switch designed for precise electrical switching within industrial, automation, and electronics applications. Featuring a left angle PCB terminal configuration, this micro switch is optimized for compact PCB mounting while maintaining excellent electrical performance.

The switch supports a contact current of 50mA and is rated for contact voltages of 125 V ac and 30 V dc, suitable for low power control circuits. The SPDT (Single Pole Double Throw) contact configuration enables versatile switching options for various control scenarios.

Constructed using polyphenylene sulphide housing material that complies with UL94V-0 flammability standards, the micro switch offers enhanced durability and safety. It is rated IP40, providing protection from solid objects larger than 1mm and ensuring reliable operation in controlled industrial environments.

It is designed to perform reliably across a wide temperature range from -25°C to 85°C, allowing use in diverse environmental conditions. The mechanical life expectancy of one million operations contributes to the switch's longevity and minimal maintenance in production settings.

The compact length of 12.8 mm fits well in space-constrained assemblies, making it ideal for miniature electrical switches on PCBs. This model complies with RoHS standards, ensuring environmentally responsible manufacturing and use.

Operates with a hinge lever actuator for precise switching. Left angle PCB terminals for streamlined PCB mounting. Silver-plated SPDT contacts for reliable electrical connections. Durable polyphenylene sulphide housing with UL94V-0 rating.

Wide operating temperature range from -25°C to 85°C. Mechanical life up to 1,000,000 operations. Compact 12.8 mm length suitable for subminiature applications. Compliance with RoHS environmental standards. IP40 ingress protection rating.

Certified UL recognized and CSA certified for safety.

This ZF DG23-B3LA micro switch is widely applicable in industrial automation systems, electronic control devices, HVAC equipment, manufacturing machinery, and laboratory instruments requiring reliable micro-switching functions.

Explore more industrial-grade switches and micro switch models to meet your exact application needs with EnvMart’s comprehensive product range.

Explore more products in our Micro Switches category.
