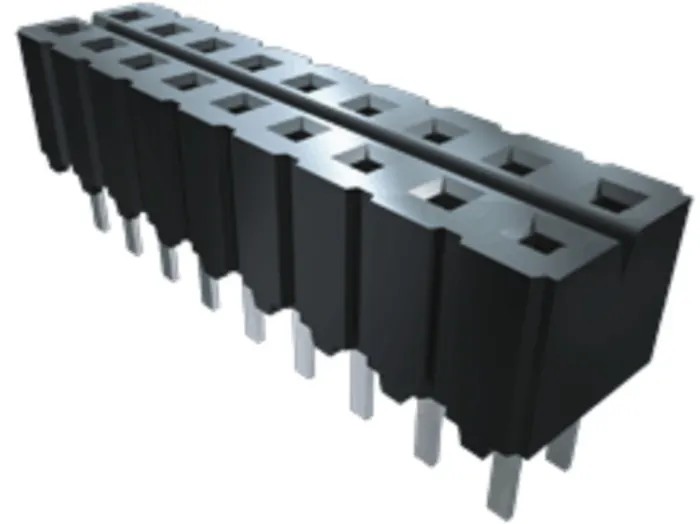

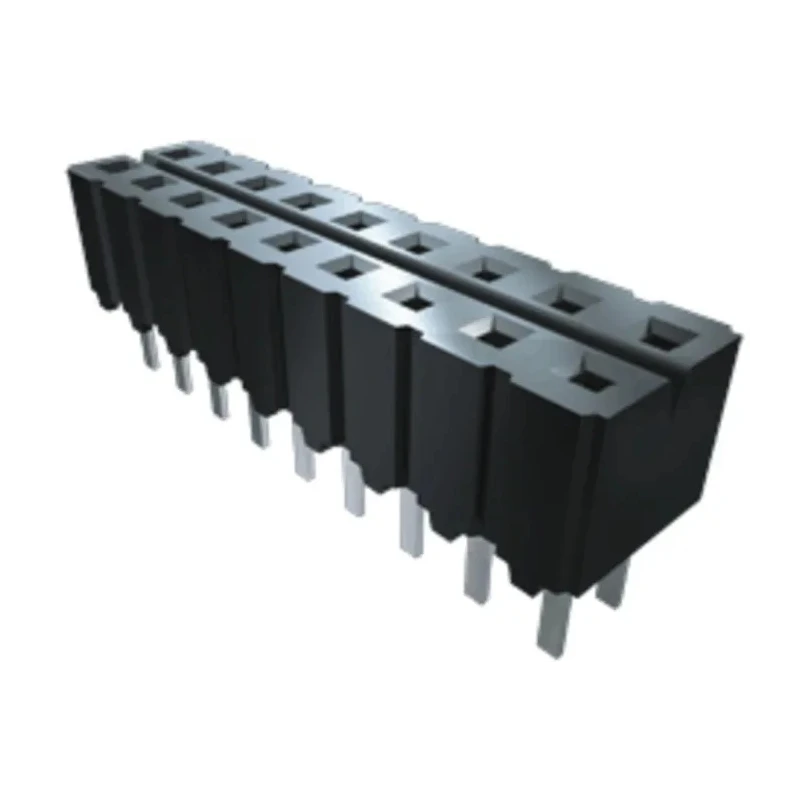

Samtec CES Series Straight Through Hole PCB Socket, 18-Contact, 2 Row, 2.54 mm Pitch Solder CES-109-01-T-D

Samtec CES-109-01-T-D is a high-quality PCB socket from the CES series featuring 18 contacts arranged in 2 rows with a 2.54 mm pitch designed for through-hole mounting. Its black glass filled polyester housing provides robust insulation and mechanical strength, suitable for various industrial and electronic assembly scenarios.

The socket's phosphor bronze contact material with gold over tin plating ensures excellent electrical conductivity and corrosion resistance, supporting a continuous current of up to 5.5 A per pin. It is engineered for straight orientation and solder termination for reliable board-to-board connections.

The CES-109-01-T-D socket operates across a wide temperature range from -55°C to 125°C, making it appropriate for harsh environments commonly found in industrial, laboratory, manufacturing, and commercial electronics applications.

This product meets RoHS compliance, reflecting adherence to environmental and safety standards. The low profile and closed entry design of the CES series socket facilitate compact PCB designs without compromising performance or durability.

Features 18 phosphor bronze contacts plated with gold over tin. Constructed with a black glass filled polyester housing for durability. Supports a current rating of 5.5 A per contact. Designed for straight orientation and solder termination.

Operates reliably from -55°C to 125°C. Part of the CES series with a low profile, closed entry design. Ideal for electronic, industrial, and laboratory PCB assembly applications. Compliant with RoHS standards for environmental safety.
