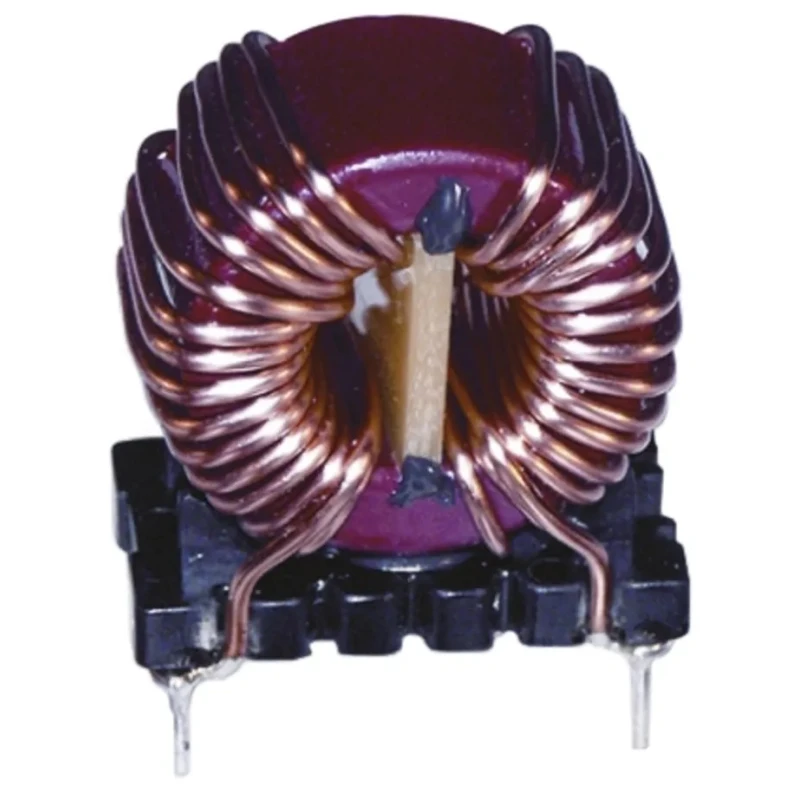

Wurth Elektronik 1.8 mH Ferrite Common Mode Choke Through Hole, Max SRF 10 kHz, 14 A Idc, 7.9 mΩ Rdc, 250V AC 7448261418

Wurth Elektronik 7448261418 is a 1.8 mH ferrite common mode choke with a through-hole mount designed for effective suppression of asymmetrical electromagnetic interferences. It operates with a maximum DC current of 14 A and features a low DC resistance of 7.9 mΩ, ensuring minimal energy loss in power line filters and electronic circuits.

The choke is rated for a maximum voltage of 250V AC and possesses a maximum self-resonant frequency of 10 kHz, enabling efficient filtering within specified frequency bands. Its operational temperature range from -40°C to +125°C guarantees performance stability across diverse environmental conditions.

Constructed with a ferrite core and equipped with a lead pitch of 10 mm for through-hole mounting, this component offers a compact design measuring 43 mm in length, diameter, and height with a depth of 23.5 mm. Its termination style is solder, providing reliable electrical connections.

The product complies with international standards including ENEC 10, REACH, RoHS, and VDE, ensuring safety and environmental considerations are met. It is well suited for motor noise suppression, power line input/output filtering, power electronics, and devices without ground connection, making it indispensable in industrial, laboratory, commercial, and manufacturing applications.

Key features include broadband screening via an anti-capacitance coiling technique incorporated into the design, yielding high current capacity for such a compact component. Compact ferrite core design for effective noise suppression.

Maximum DC current rating of 14 amperes ensures high performance. Rated voltage of 250 volts AC suitable for various electronic circuits. Operating temperature range from -40°C to 125°C for reliability. Maximum self-resonant frequency of 10 kHz for frequency-specific applications.

Lead pitch of 10 mm compatible with through-hole mounting. Low DC resistance of 7.9 milliohms reduces power loss. Compliant with ENEC 10, REACH, RoHS, and VDE standards. Core made of ferrite material to enhance inductive performance.

Ideal for suppression of common mode noise and radio interference in motors and power electronics. Explore the complete range of Wurth Elektronik Inductors and common mode chokes at EnvMart for industrial and commercial electronics solutions.
