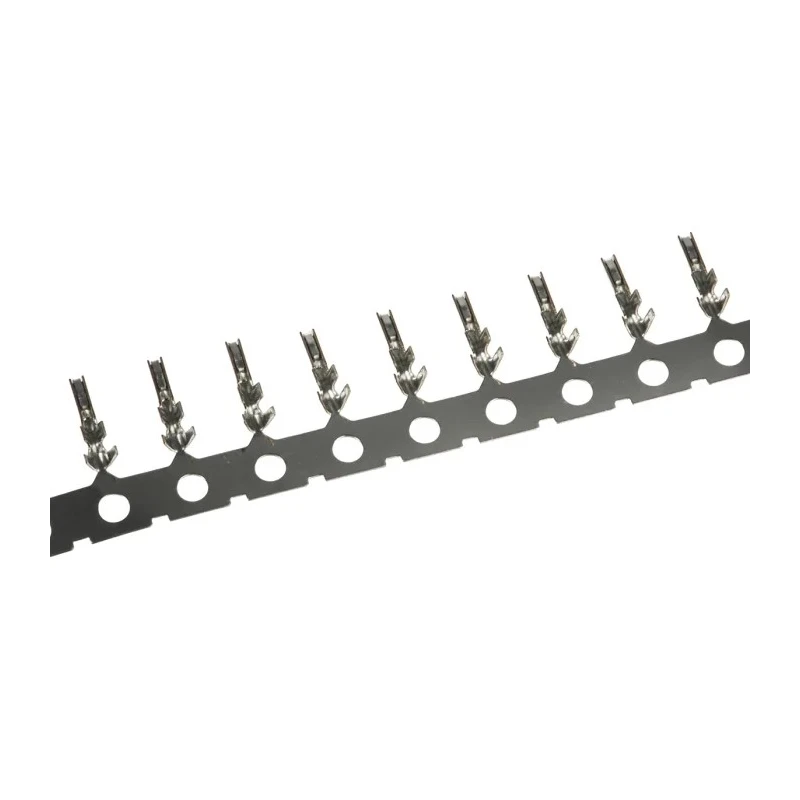

JST GH Series Female Crimp Terminal 30 AWG Min Crimp, 26 AWG Max SSHL-002T-P0.2

JST SSHL-002T-P0.2 is a female crimp terminal from the GH Series specifically engineered for 30 AWG minimum to 26 AWG maximum wire sizes, facilitating secure and efficient wire-to-board connections. This crimp terminal features phosphor bronze contact material providing excellent electrical conductivity and mechanical strength, combined with tin plating to protect against corrosion and ensure long-lasting reliability.

The terminal supports a maximum continuous current of 1 ampere and operates effectively within the temperature range of -25°C to 85°C, making it suitable for various electronic applications requiring durability under moderate temperature fluctuations. The design is optimized for 1.25mm pitch GH connector housings, commonly used in electronic equipment such as PDP and LCD displays, as well as other precision electronics.

The crimp termination ensures stable mechanical and electrical connection for small diameter wires within the specified AWG range, minimizing contact resistance to an excellent maximum of 30 milliohms, which maintains signal integrity across connections. The terminal's robust construction and compliance with precise manufacturing standards from Japan guarantee performance and reliability.

This JST GH Series Female Crimp Terminal is ideal for engineers and technicians involved in assembling and repairing small electronic devices where compact, reliable connections are critical. The low insertion force and secure locking design facilitate easy yet firm assembly in manufacturing environments, enhancing production efficiency and product quality.

The terminal is made of phosphor bronze for excellent conductivity and durability. Features tin plating to ensure corrosion resistance and reliable contact. Rated for a maximum current of 1 ampere, ideal for low-current electronic applications.

Operates reliably within a temperature range of -25°C to 85°C. Termination type is crimp for secure and efficient wire attachment. Compatible with GH connector housings featuring a 1.25mm pitch for precise insertion. Offers a maximum contact resistance of 30 milliohms to maintain signal integrity.

Manufactured in Japan adhering to quality standards for electronic components. Designed for use in compact electronics such as PDP, LCD displays, and other small devices. Explore the extensive range of electronic components available on EnvMart for reliable and high-quality industrial and commercial applications.
