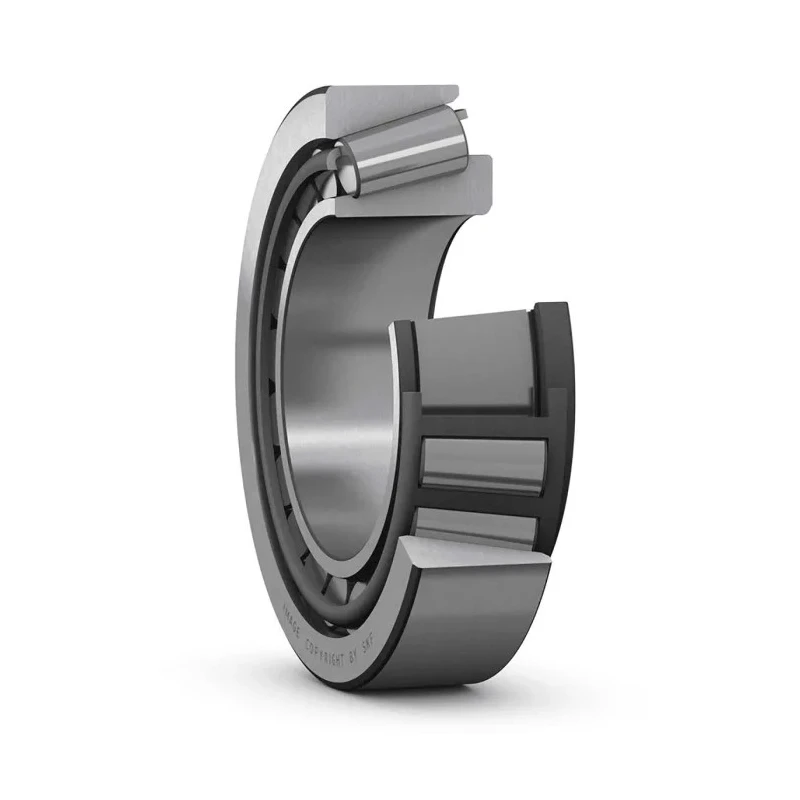

SKF Single Row Tapered Roller Bearing 105 mm ID, 160 mm OD, 3800 RPM Limiting Speed 32021 X

Free Delivery in India | Lowest Global Shipping Charges

SKF Single Row Tapered Roller Bearing 105 mm ID, 160 mm OD, 3800 RPM Limiting Speed 32021 X



Category Tapered Roller Bearing Brand SKF Condition New

Specifications

Country of Origin	Germany
Brand	SKF
Model	32021 X
Outside diameter	160mm
Inside Diameter	105mm
Number of Rows	1
Limiting Speed	3800rpm
End Type	Shielded
Bore Type	Parallel
Bearing Type	Taper
Static Load Rating	335kN
Cone Width	35mm
Bearing Dynamic Load Rating	248kN
Cup Width	26mm
RS PRO 32021-X Taper 105 mm ID Roller Bearing, 160 mm ODRS Stock No.	248-2823Brand: RS PROManufacturers Part No.: 32021-X

Key Features

Single row tapered roller bearing with separable cone and cup components.
Designed to accommodate axial loads due to increasing contact angle.
Robust bearing with a limiting speed of 3800 rpm for high-performance operation.
Shielded end type for protection against contaminants.
Manufactured in Germany to ensure high quality and durability.
Rigid bearing application achievable through preload adjustment with a second bearing.
Enhanced operational reliability with low frictional moments and running-in period with reduced temperature peaks.
Typical applications include industrial, mechanical power transmission, and heavy machinery environments.

Product Description

SKF 32021 X is a high-quality single row tapered roller bearing featuring a 105 mm inside diameter and 160 mm outside diameter. This bearing is specifically engineered to manage combined radial and axial loads, making it suitable for demanding industrial and mechanical applications.

The tapered design ensures the projection lines of the raceways meet at a common bearing axis point providing true rolling action with low frictional moments during operation. The axial load carrying capacity improves with the size of the contact angle, typically between 10° and 30°, which correlates with the calculation factor e for design optimization.

This bearing has a limiting speed of 3800 rpm and features a shielded end type that protects against dust and contaminants, ensuring longevity and reliability in harsh environments. The bearing consists of separable and interchangeable cone and cup components facilitating easier mounting, dismounting, and maintenance inspections.

Manufactured in Germany, the SKF 32021 X bearing delivers enhanced operational reliability and rigidity. It is commonly used in heavy industrial machinery, mechanical power transmission systems, and various construction and manufacturing equipment where performance and durability are critical.

Single row tapered roller bearing designed for combined radial and axial loads. Separable cone and cup units for flexible mounting and maintenance. Shielded end type enhances protection from contaminants. High limiting speed of 3800 rpm suitable for industrial machinery.

Manufactured to high standards in Germany for durability and precision. Enables rigid bearing applications with preload adjustment. Low frictional moments improve operational efficiency and reduce wear. Ideal for mechanical, HVAC, manufacturing, and power transmission uses.

Explore the wide range of SKF Tapered Roller Bearings on EnvMart for reliable performance in industrial tools and machinery applications.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The SKF 32021 X tapered roller bearing has an inside diameter of 105 mm and an outside diameter of 160 mm.

This model has a limiting speed of 3800 rpm, making it suitable for high-performance applications.

The bearing features a shielded end type, which provides protection against dust and contaminants.

This bearing is a single row tapered roller bearing, which contributes to its compact design and efficiency.

The static load rating is 335 kN, while the dynamic load rating is 248 kN, indicating its capacity to handle different loads.

The cone width is 35 mm and the cup width is 26 mm, which are important dimensions for installation and compatibility.

This model is manufactured in Germany, ensuring adherence to high-quality standards.

Yes, it features separable cone and cup components, facilitating easier mounting, dismounting, and maintenance inspections.

It is commonly used in heavy industrial machinery, mechanical power transmission systems, and various construction and manufacturing equipment.

This model is a tapered roller bearing, designed to accommodate axial loads due to its increasing contact angle.

The tapered design ensures true rolling action with low frictional moments, which improves operational efficiency and reduces wear.
