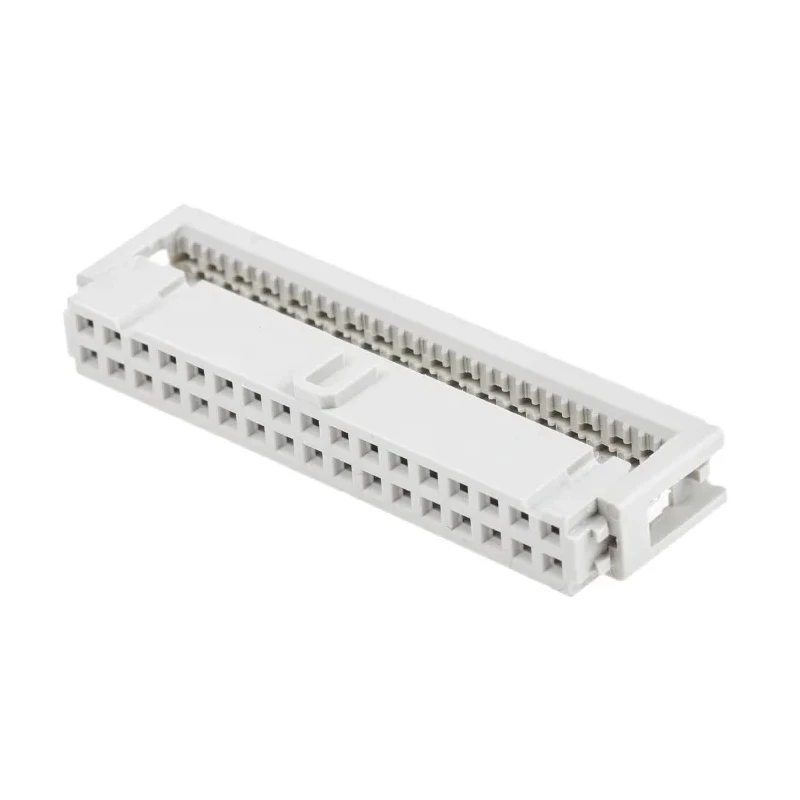

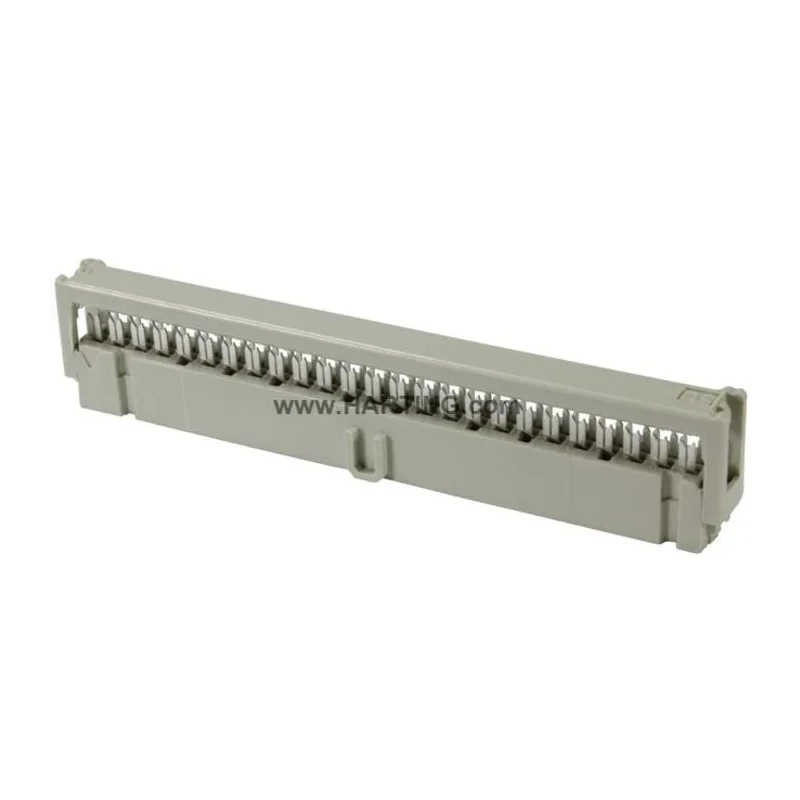

HARTING 34-Way IDC Connector Female for Cable, 2 Row, 2.5A Current, 2.54mm Pitch, 320V AC, SEK 18 Series 09185347803

Free Delivery in India | Lowest Global Shipping Charges

HARTING 34-Way IDC Connector Female for Cable, 2 Row, 2.5A Current, 2.54mm Pitch, 320V AC, SEK 18 Series 09185347803

Name: HARTING 34-Way IDC Connector Female for Cable, 2 Row, 2.5A Current, 2.54mm Pitch, 320V AC, SEK 18 Series 09185347803
Brand: HARTING
SKU: 213154
Price: 4.04 USD
Availability: InStock



Category IDC Connector Brand HARTING Condition New

Specifications

Country of Origin	India
Voltage	320V ac
Brand	HARTING
Orientation	Right Angle
Current	2.5A
Mount Type	Cable
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	SEK 18
Termination Type	IDC
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	34
Contact Gender	Female
Connector Gender	Female
Shrouded/Unshrouded	Shrouded
HARTING 34-Way IDC Connector Female for Cable, 2 RowBrand	HARTING

Key Features

This connector supports a 2.5A current rating for moderate power applications.
It features a shrouded female connector design with gold-plated copper alloy contacts.
Operating voltage is rated at 320V AC with cable mount and right-angle orientation.
The housing is made of durable polybutylene terephthalate material suitable for harsh environments.
The connector is designed for termination by insulated displacement contact (IDC) with central polarization.
It operates reliably from -55°C to 125°C temperature range.
The series complies with IEC 60 603-13 standards and offers multiple performance levels.
Available with options such as open or closed end covers and strain reliefs for cable protection.

Product Description

HARTING 09185347803 is a 34-way female IDC connector designed for cable termination within the SEK 18 series, providing a secure and reliable connection solution for industrial and electronic applications. This connector includes 2 rows with a 2.54mm pitch, suited for moderate current capacity of 2.5A and an operating voltage up to 320V AC.

Constructed with gold-plated copper alloy contacts, the connector ensures good conductivity and corrosion resistance. Its housing is manufactured from polybutylene terephthalate, offering robust mechanical strength and chemical resistance for long-term usage. The connector features a shrouded female design with right-angle cable orientation, facilitating convenient cable routing and assembly.

Designed to meet IEC 60 603-13 standards, this SEK 18 series connector supports mounting with strain reliefs and open or closed end covers depending on the variant, enhancing cable security and durability under mechanical stress.

The IDC termination type enables fast, reliable, and tool-free connections by displacing insulation to contact the conductor directly, optimizing assembly efficiency in manufacturing or maintenance environments.

Operating temperature ranges from -55°C to 125°C, making it suitable for harsh industrial, electronic, and electrical environments. These connectors are commonly used in automation, control systems, instrumentation, and other electrical assemblies where reliable multi-contact connections are required.

This 34-way female IDC connector ensures optimum electrical performance with gold-plated contacts. Cable mount design with right-angle orientation improves installation flexibility. High durability housing material provides resistance against physical and chemical stresses.

Applicable in various industrial electronics and electrical connector applications. Meets IEC standards for safety and compatibility with other devices. Offers varying performance classes and design options for specific cable requirements.

Choose HARTING IDC Connectors for proven quality and durability in demanding electronic connector tasks. Explore more in our connectors and electrical components category for compatible parts and accessories.
