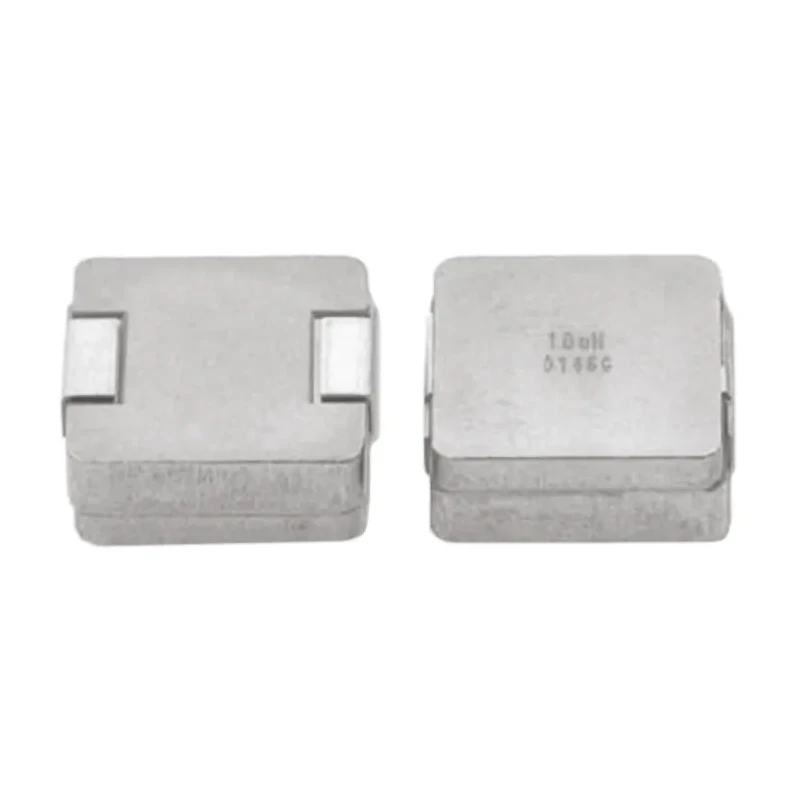

Vishay 5050 Shielded Surface Mount Inductor with Metal Composite Core 1 μH ±20 % 29 A IDC IHLP5050EZER1R0M01
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 5mm |
| Length | 13.2mm |
| Model | IHLP5050EZER1R0M01 |
| Depth | 12.9mm |
| Packaging | Reel |
| Series | IHLP-5050EZ-01 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Metal Composite |
| Inductance | 1μH |
| Standards/Approvals | RoHS |
| Package/Case | 5050 |
| Maximum DC Current | 29A |
| Maximum DC Resistance | 2.5mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 5MHz |
| Inductor Construction | Shielded |
Key Features
- Features a metal composite core ensuring magnetic shielding.
- Inductance tolerance is ±20 percent for reliable performance.
- Maximum DC resistance is 2.5 milliohms to minimize power loss.
- Operates efficiently between -55 °C and 125 °C temperature range.
- Designed for high current applications with ultra low buzz noise.
- Shielded wire wound construction for stability and high transient current handling.
- Suitable for PDA, notebook, desktop, server devices, and low profile power supplies.
- Package style is 5050 surface mount with a height of 5 mm and depth of 12.9 mm.
Product Description
Vishay IHLP5050EZER1R0M01 is a 5050 shielded surface mount inductor featuring a metal composite core that ensures excellent magnetic shielding and high current performance. This inductor provides an inductance of 1 μH with a tolerance of ±20 percent, designed to handle a maximum DC current of 29 A. Its ultra low buzz noise characteristic stems from its composite construction, making it suitable for noise-sensitive high current circuits.
The device operates reliably within a wide temperature range from -55 °C to 125 °C, maintaining a low maximum DC resistance of 2.5 milliohms to reduce power loss and heat generation. With a maximum self-resonant frequency of 5 MHz and shielded wire wound construction, it is optimized for efficient performance in high frequency and transient current applications.
Typical use cases include PDAs, notebooks, desktops, servers, high current POL converters, low profile power supplies, battery-operated devices, and DC/DC converters especially for Field Programmable Gate Arrays (FPGA). The 5050 package dimensions include a length of 13.2 mm, height of 5 mm, and depth of 12.9 mm. Termination style is surface mount, making it ideal for modern automated assembly processes with reel packaging provided for efficient manufacturing.
Metal composite core provides shielded inductance. Handles high transient current spikes without saturation. Low DC resistance improves power efficiency. Wide operating temperature range from -55 °C to 125 °C. Suitable for various electronic industrial and commercial applications.
Ultra low buzz noise due to composite construction. Compact 5050 surface mount package for space-saving designs. RoHS compliant ensuring environmental standards.
This Vishay inductor is developed for demanding electrical and electronic environments in industries such as telecommunications, power management, computing, and embedded systems. Its rugged construction and shielding make it an excellent choice for high performance and reliable power regulation circuits.
Explore more surface mount Inductors and other electronic components at EnvMart for comprehensive industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 1 μH with a tolerance of ±20 percent.
It can handle a maximum DC current of 29 A.
The inductor operates efficiently between -55 °C and 125 °C.
The maximum DC resistance is 2.5 milliohms, which helps minimize power loss.
The package dimensions are 13.2 mm in length, 5 mm in height, and 12.9 mm in depth.
It features a metal composite core that provides excellent magnetic shielding.
The maximum self-resonant frequency is 5 MHz.
This inductor uses a surface mount termination style, suitable for automated assembly processes.
It is suitable for PDAs, notebooks, desktops, servers, and low profile power supplies, among others.
Yes, this model is RoHS compliant, ensuring it meets environmental standards.
It has a shielded wire wound construction, which enhances stability and transient current handling.
