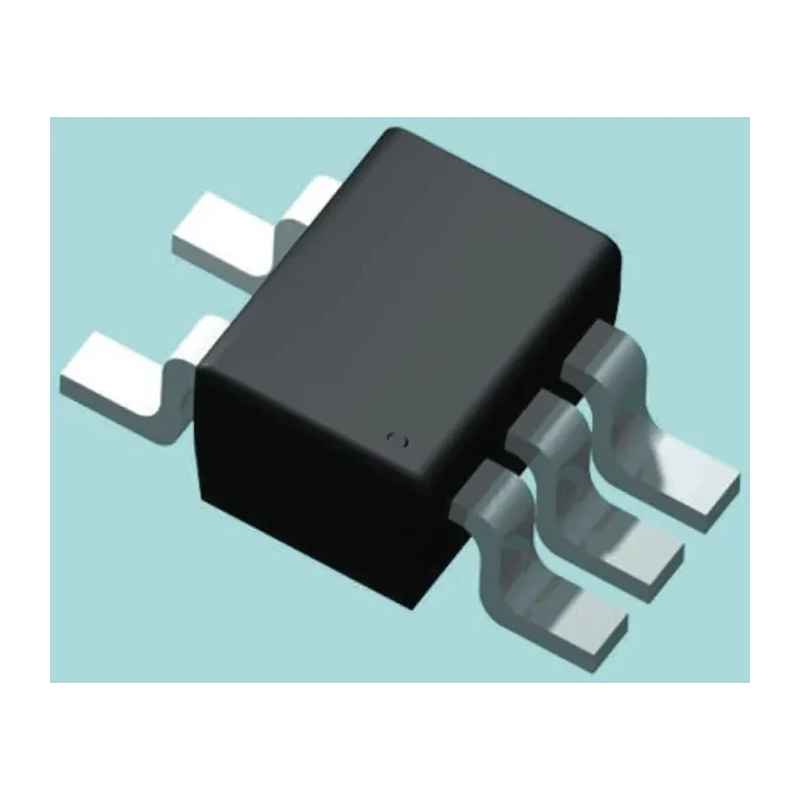

onsemi High Side 2 Output Power Switch IC, Surface Mount TSOP 5-Pin, 2.5-5.5V Supply NCP380HSN10AAT1G

Free Delivery in India | Lowest Global Shipping Charges

onsemi High Side 2 Output Power Switch IC, Surface Mount TSOP 5-Pin, 2.5-5.5V Supply NCP380HSN10AAT1G

Name: onsemi High Side 2 Output Power Switch IC, Surface Mount TSOP 5-Pin, 2.5-5.5V Supply NCP380HSN10AAT1G
Brand: onsemi
SKU: 104319



Category Power Switch ICs Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	1mm
Length	3mm
Model	NCP380HSN10AAT1G
Width	1.5mm
Mount Type	Surface
Number of inputs	2
Series	NC
Maximum Operating Temperature	125°C
Package Type	TSOP
Minimum Operating Temperature	-40°C
Operating Current	1A
Number of outputs	2
Standards/Approvals	AEC-Q100, IEC61000-4-2 (Level 4), UL CB Schem
Pin Count	5
Automotive Standard	AEC-Q100
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	2.5V

Key Features

Features 2 outputs and 2 inputs for effective power management.
Designed for surface mounting with a compact TSOP 5-pin package.
Supports operating temperature range from -40°C to 125°C.
Minimum supply voltage of 2.5V and maximum supply voltage of 5.5V.
Operating current of 1A suitable for moderate load applications.
Conforms to industry standards including AEC-Q100 and IEC61000-4-2 (Level 4).
Automotive standard compliant (AEC-Q100) making it suitable for automotive environments.

Product Description

onsemi NCP380HSN10AAT1G is a high side power switch IC designed for precise voltage and current management in various electronic applications. The device features 2 outputs and 2 inputs and is housed in a compact 5-pin TSOP surface mount package, making it suitable for space-constrained designs.

Operating efficiently over a wide temperature range of -40°C to 125°C, it supports a minimum supply voltage of 2.5V and a maximum of 5.5V, accommodating multiple power supply configurations. The IC delivers an operating current of up to 1A, ideal for moderate load power distribution needs.

Physically, the package measures 3mm in length, 1.5mm in width, and 1mm in height, providing a low-profile solution for printed circuit boards.

Key certifications include AEC-Q100 quality standard and IEC61000-4-2 Level 4 for electrostatic discharge robustness, alongside compliance with UL CB Scheme, ensuring reliable performance and safety.

This power management IC is suitable for automotive, industrial, and consumer electronics requiring stable high side switching performance and current limiting features. Features 2 outputs and 2 inputs for effective power control.

Compact 5-pin TSOP package for surface mounting and space-saving design. Wide operating temperature range from -40°C to 125°C. Power supply voltage range supports 2.5V to 5.5V operations. 1A operating current capacity for moderate load applications.

Compliance with automotive standard AEC-Q100 for automotive design integration. Meets electrostatic discharge level IEC61000-4-2 (Level 4) for enhanced durability. Compact dimensions: 3mm length, 1.5mm width, 1mm height.

The onsemi NCP380HSN10AAT1G Power Switch IC is ideal for use in power distribution, consumer electronics, automotive electronic modules, and industrial control equipment where compact, reliable high side switching is required.
