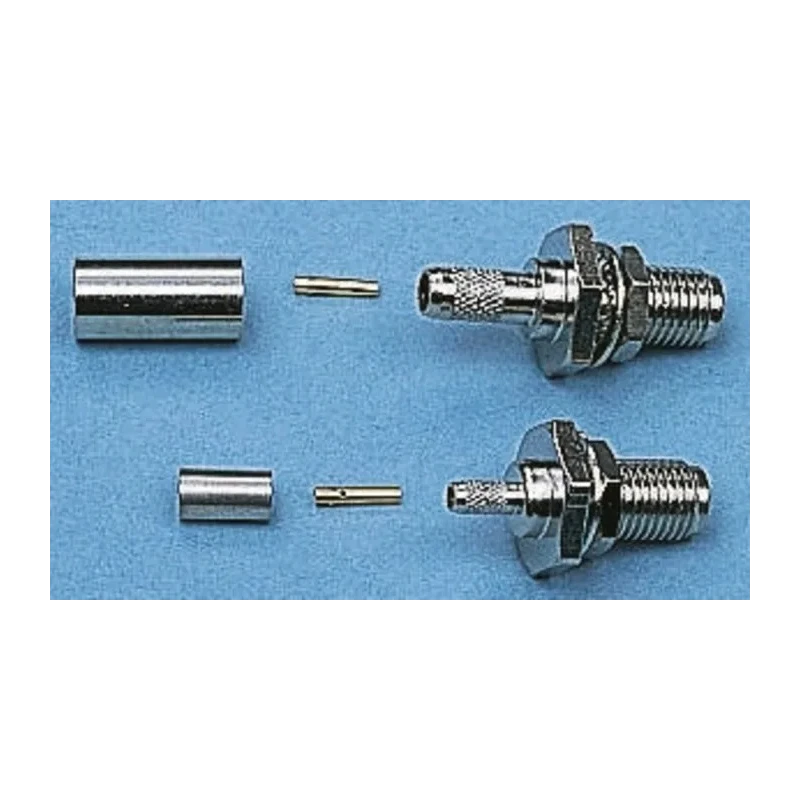

Telegartner SMA Series Coaxial Connector Panel Mount Female SMA 50 Ω Straight Body Crimp J01151A0019
Specifications
| Country of Origin | Germany |
|---|---|
| Size | Standard |
| Brand | Telegartner |
| Orientation | Straight |
| Model | J01151A0019 |
| Mount Type | Panel Mount |
| Operating Frequency | 12.4GHz |
| Contact Material | Beryllium Copper Alloy |
| Series | SMA |
| Termination Type | Crimp |
| Maximum Operating Temperature | 165°C |
| Cable Type | RG400/U, RG223/U, RG142B/U |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold over Nickel over Copper |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | SMA |
| Body Plating | Nickel |
Key Features
- Offers a standard size fit suitable for RG400/U, RG223/U, and RG142B/U cables.
- Constructed with a brass housing and PTFE insulation ensuring durability and signal integrity.
- Features gold-plated beryllium copper alloy contacts for superior conductivity and corrosion resistance.
- Nickel plating on the body provides excellent protection against environmental factors.
- Operating frequency supports up to 12.4 GHz for reliable RF performance.
- Designed for a wide temperature range from -65°C to 165°C, suitable for various industrial applications.
- Includes a female contact gender with normal polarity, ensuring compatibility with standard SMA connectors.

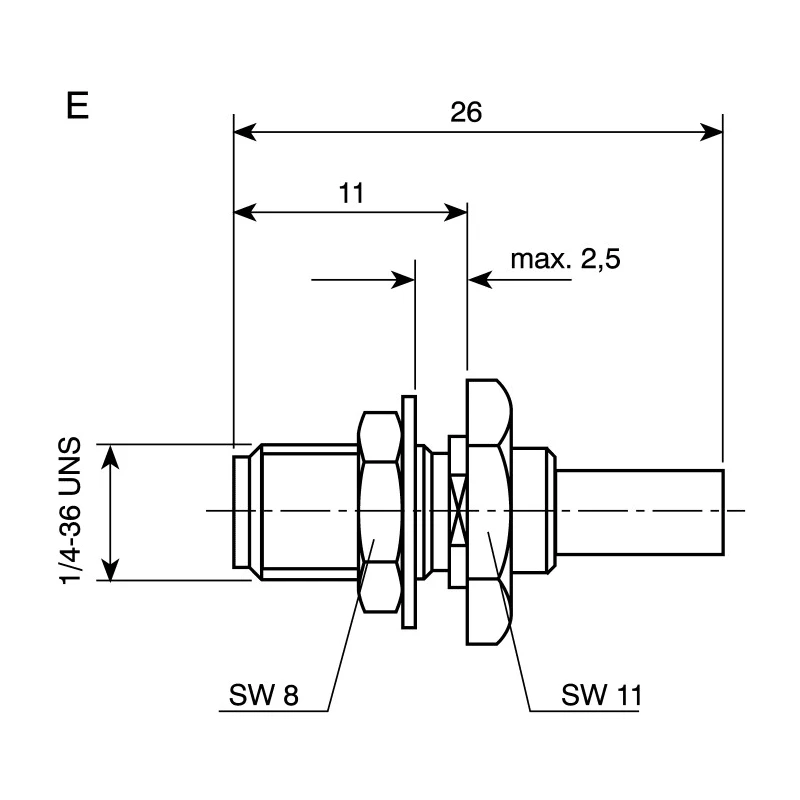

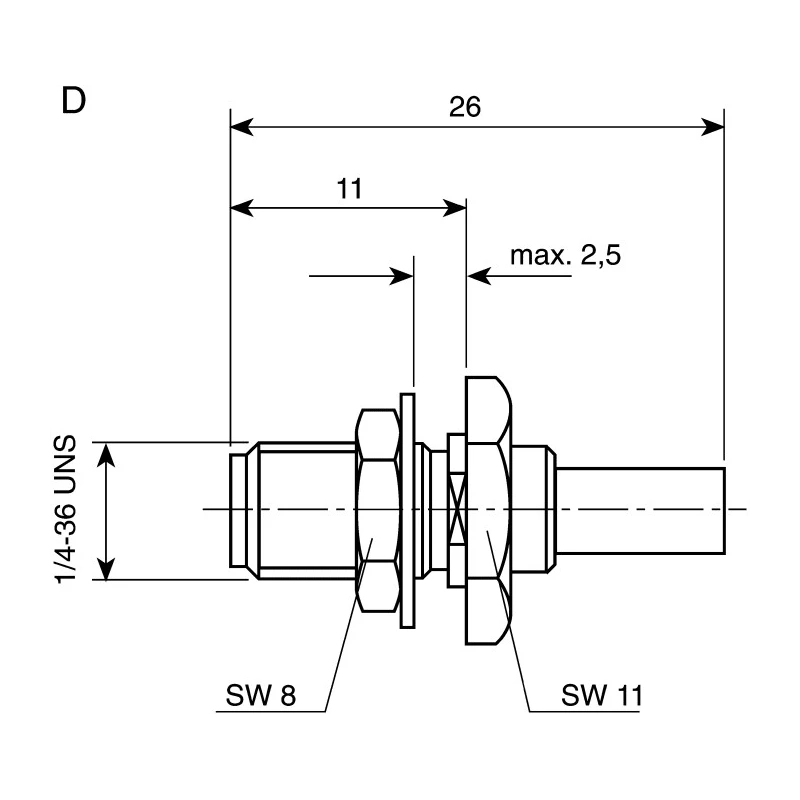

- Bulkhead panel mount design allows secure and sturdy installation on equipment panels.
Product Description
Telegartner J01151A0019 SMA Series Coaxial Connector is a premium panel mount female SMA connector featuring a 50 Ω impedance and straight body designed for crimp termination. It operates at frequencies up to 12.4 GHz, making it ideal for high-frequency RF applications.
This coaxial connector is equipped with a brass housing combined with high quality PTFE insulation, ensuring excellent electrical performance and structural durability. The contact material is beryllium copper alloy plated with gold over nickel over copper for enhanced electrical conductivity and corrosion resistance.
The connector body is nickel plated, providing robust protection against environmental and mechanical wear. It supports a wide temperature range from -65°C minimum to 165°C maximum, making it suitable for industrial, laboratory, telecommunications, and electronic equipment where reliable signal integrity is crucial.
The female SMA connector has a normal polarity and is designed for use with RG400/U, RG223/U, and RG142B/U coaxial cables. The panel mount bulkhead design ensures secure and stable mounting on enclosure panels or equipment racks. The crimp termination method ensures tight and durable cable connections, suitable for both field installation and factory assembly.
Manufactured in Germany, this coaxial connector meets high quality manufacturing standards, although it does not carry specific approvals or certifications. Standard size fits common coaxial cable types RG400/U, RG223/U, RG142B/U.
Gold-plated beryllium copper alloy contacts ensure excellent conductivity. Nickel-plated brass housing for environmental resistance. Operating temperature range from -65°C to 165°C supports varied applications. Frequency handling up to 12.4 GHz suitable for advanced RF communications.
Panel mount bulkhead style allows rugged installation. Crimp termination supports reliable and stable cable connections. Normal polarity female SMA connector. Made in Germany ensuring engineering quality.
This Telegartner coaxial connector is widely applicable in electronic industries including telecommunications, measurement, laboratory instrumentation, defense, broadcasting, and industrial RF systems.
Browse further into the Electronics Components category at EnvMart to explore a comprehensive range of Coaxial Connectors and related accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports an operating frequency of up to 12.4 GHz, making it suitable for high-frequency RF applications.
This model is designed to fit standard coaxial cables such as RG400/U, RG223/U, and RG142B/U.
It operates within a wide temperature range from -65°C to 165°C, suitable for various industrial applications.
The connector features a brass housing with PTFE insulation and gold-plated beryllium copper alloy contacts for enhanced conductivity and corrosion resistance.
It has a panel mount bulkhead design, allowing for secure and stable installation on equipment panels.
The connector has an impedance rating of 50Ω, which is standard for SMA connectors.
It uses a crimp termination method, ensuring tight and durable cable connections suitable for both field installation and factory assembly.
The connector features a female contact gender with normal polarity, ensuring compatibility with standard SMA connectors.
The contacts are gold-plated over nickel over copper, enhancing electrical conductivity and corrosion resistance.
It is manufactured in Germany, ensuring high-quality engineering standards.
It is widely applicable in telecommunications, measurement, laboratory instrumentation, defense, broadcasting, and industrial RF systems.
This model has a straight body orientation, which is typical for panel mount connectors.
