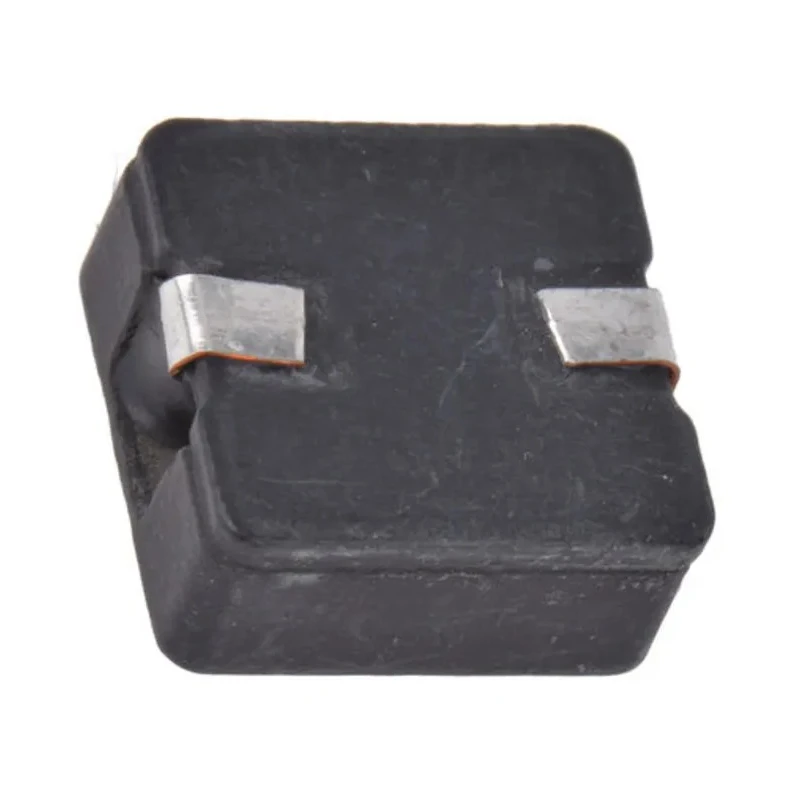

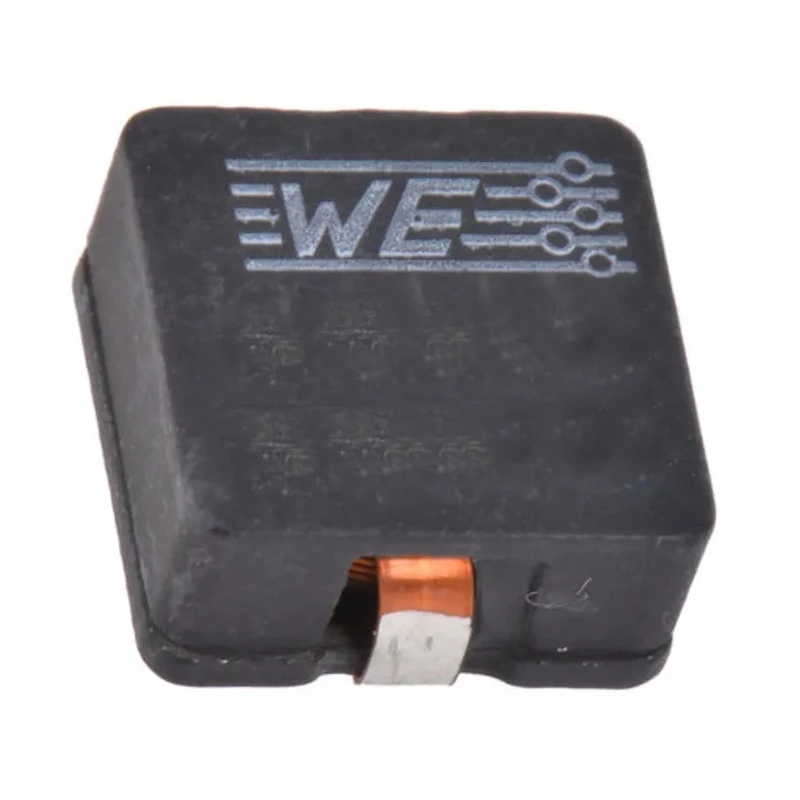

Wurth Elektronik WE-HCI 7040 Shielded Wirewound Surface Mount Inductor with WE-Superflux Core 2.2μH 9A 11.4mΩ 744311220
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 3.8mm |
| Length | 7mm |
| Depth | 6.9mm |
| Packaging | Tape & Reel |
| Series | WE-HCI |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Core Material | WE-Superflux |
| Inductance | 2.2μH |
| Standards/Approvals | REACH, IEC 61249-2-21, JEDEC JS709B, RoHS |
| Package/Case | 7040 |
| Maximum DC Current | 9A |
| Pin Count | 2 |
| Maximum DC Resistance | 11.4mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 52MHz |
| Inductor Construction | Flat Wire Winding |
| Automotive Standard | AEC-Q200 |
Key Features
- Utilizes magnetically shielded wire wound construction for minimal stray fields.
- Flat wire winding construction reduces DC resistance to 11.4mΩ.
- Built to withstand operating temperatures between -40°C and 150°C.
- Features a compact 7040 package size with 7mm length and 3.8mm height.
- Offers a maximum self-resonant frequency of 52MHz suitable for switching regulators.
- Complies with automotive standard AEC-Q200 and environmental standards including RoHS and REACH.
- Supplied in tape & reel packaging ready for surface mount assembly processes.
- Core material made of WE-Superflux for improved performance in industrial electronics.
Product Description
Wurth Elektronik 744311220 is a high-performance shielded wirewound surface mount inductor featuring the WE-HCI 7040 series. This inductor is designed with a WE-Superflux core and flat wire winding construction to deliver excellent magnetic shielding and very low DC resistance of 11.4mΩ, optimizing efficiency in high current applications up to 9 amperes. It operates reliably within a temperature range of -40°C to 150°C, making it suitable for industrial and automotive environments.
Measuring 7mm in length, 6.9mm in depth, and 3.8mm in height, the compact 7040 package is designed for surface mount technology (SMT) applications. The inductor's maximum self-resonant frequency is 52MHz, ensuring stable operation in switching regulators, DC-DC converters, and other power electronics requiring high frequency response. It meets automotive standard AEC-Q200 and complies with international environmental standards including RoHS, REACH, IEC 61249-2-21, and JEDEC JS709B.
Ideal for use in industrial computers, laptops, graphic cards, motherboards, and polyphase switching regulators, this inductor delivers reliable performance with minimal electromagnetic interference due to its magnetic shielding. The tape & reel packaging facilitates efficient automated placement and assembly.
Magnetically shielded wire wound construction minimizes stray magnetic fields. Flat wire coil design lowers DC resistance and improves current capacity. High temperature tolerance ensures stable operation up to 150°C. Compact 7040 package size for SMT applications.
Compatible with automotive industry standards (AEC-Q200). Compliant with RoHS, REACH, IEC, and JEDEC environmental standards. Maximum DC current rating of 9A supports high power density applications. WE-Superflux core material enhances magnetic performance.
Included in tape & reel for automated manufacturing processes.
The Wurth Elektronik WE-HCI 7040 shielded wirewound inductor series is engineered for demanding power electronics requirements, supporting efficient power conversion and robust operation in automotive and industrial sectors. Browse more Surface Mount Inductors at EnvMart to find suitable components for your electronic designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 2.2μH.
It has a maximum DC current rating of 9A, making it suitable for high power density applications.
The maximum self-resonant frequency is 52MHz, which is suitable for stable operation in switching regulators.
This inductor measures 7mm in length, 6.9mm in depth, and 3.8mm in height.
It operates reliably within a temperature range of -40°C to 150°C.
It features a flat wire winding construction, which helps reduce DC resistance to 11.4mΩ.
It complies with automotive standard AEC-Q200 and environmental standards including RoHS and REACH.
The inductor is supplied in tape & reel packaging, which is ready for surface mount assembly processes.
The core material is made of WE-Superflux, which enhances its performance in industrial electronics.
The maximum DC resistance is 11.4mΩ, optimizing efficiency in high current applications.
It is ideal for use in industrial computers, laptops, graphic cards, motherboards, and polyphase switching regulators.
This model features a pin count of 2, suitable for surface mount technology.
