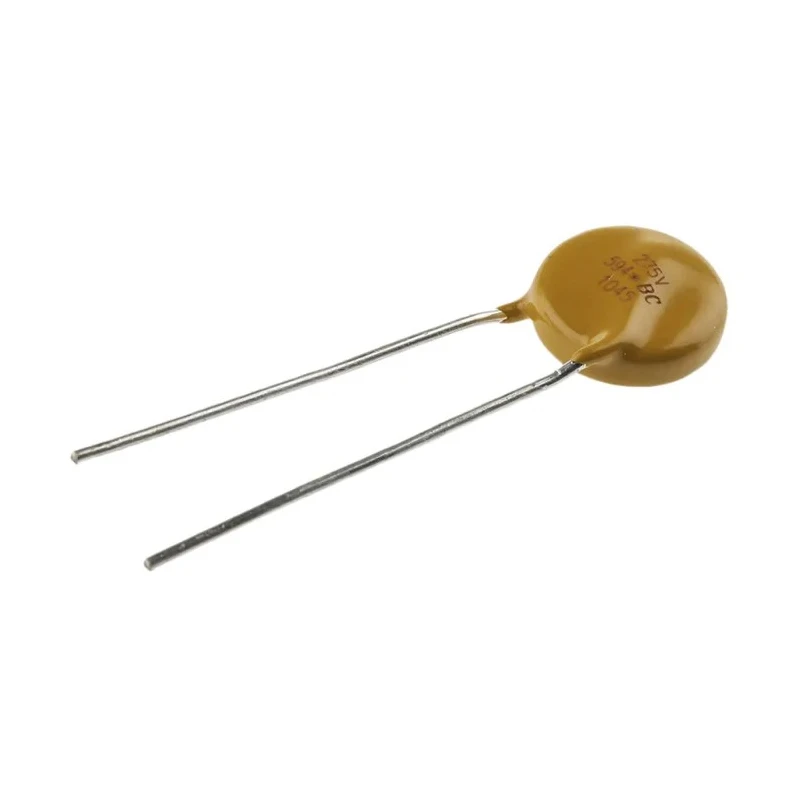

Vishay VDRS Metal Disc Varistor 6500 pF Capacitance 50 A Clamping Current 376 V VDRS10P275BSE
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 20mm |
| Brand | Vishay |
| Material | Metal |
| THICKNESS | 1.1mm |
| Length | 32mm |
| Model | VDRS10P275BSE |
| Mount Type | Through Hole |
| Series | VDRS |
| Energy Rating | 496J |
| Maximum Operating Temperature | 85°C |
| Capacitance | 6500pF |
| Minimum Operating Temperature | -40°C |
| Maximum dc Voltage | 895V dc |
| Standards/Approvals | CSA, UL 1449, IEC 61051-1, VDE |
| Package/Case | Disc |
| Pin Count | 2 |
| Termination Style | Radial |
| Lead Pitch | 7.5mm |
| Maximum AC Voltage | 680V ac |
| Clamping Voltage VC | 376V |
| Clamping Current | 50A |
| Maximum Surge Current | 6.5kA |
| Varistor Voltage | 18 to 895 V |
| Has a wide variety of applications, the most common including | clipping, relay coil contact protection, voltage stabilisation |
| Panasonic, V Surge Absorber 270pF 25A, Clamping 710V, Varistor 430VBrand | Panasonic |
| Vishay, VDRS Varistor 270 pF 50 A, Clamping 376 V, Varistor 430 V, DiscBrand | Vishay |
Key Features
- Operates with varistor voltage range from 18 to 895 V.
- Clamping voltage of 376 V ensures protection against voltage surges.
- Designed for through-hole mounting with radial termination style.
- Constructed with metal material providing durability and reliability.
- Maximum AC voltage rating of 680 V and DC rating of 895 V.
- Compact disc case with 20 mm diameter and 32 mm length.
- Can handle surge currents up to 6.5 kA and energy rating of 496 joules.
- Operating temperature range from -40°C to 85°C suitable for diverse environments.
Product Description
Vishay VDRS10P275BSE is a metal disc varistor engineered for transient voltage suppression in electrical and electronic circuits. This varistor features a capacitance of 6500 pF and supports clamping currents up to 50 A, providing effective protection by clipping voltage spikes ranging from 18 to 895 V.
Its construction with metal material and radial termination via through-hole mount ensures robust mechanical strength and reliable installation. The device operates safely at maximum AC voltages of 680 V and DC voltages of 895 V, making it suitable for a wide range of power applications.
Measuring 20 mm in diameter and 32 mm in length with a thickness of 1.1 mm, the disc case design facilitates compact integration in circuit assemblies. The varistor withstands surge currents as high as 6.5 kA and absorbs up to 496 joules of energy, protecting sensitive components from damage during transient events.
Operational over a temperature range of -40°C to +85°C, the VDRS10P275BSE varistor is reliable under various environmental conditions. Compliance with industry standards including CSA, UL 1449, IEC 61051-1, and VDE underscores its quality and safety for industrial, laboratory, and commercial applications involving surge protection.
Operates with varistor voltage from 18 to 895 V across diverse circuits. Provides clamping voltage of 376 V to protect against voltage surges. Metal disc construction enhances durability and longevity. Through-hole radial mounting ensures stable and secure installation.
Capacitance of 6500 pF suits use in filtering and transient suppression. Maximum AC voltage 680 V, maximum DC voltage 895 V for flexible applications. Surge current capacity of 6.5 kA addresses high-energy transient events.
Energy rating of 496 J suitable for protecting electronic components. Temperature range from -40°C to 85°C for versatility in operating conditions. Certified under CSA, UL 1449, IEC 61051-1, and VDE standards for assured quality.
This Varistor is widely used in electrical equipment for clipping, relay coil contact protection, and voltage stabilization, making it essential in industrial, laboratory, HVAC, manufacturing, and commercial applications requiring surge protection.
Explore more reliable surge protection solutions by browsing our Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this varistor is 6500 pF.
The maximum clamping current for the VDP275BSE is 50 A.
The clamping voltage of the VDP275BSE is 376 V.
This model operates within a temperature range of -40°C to +85°C.
The maximum AC voltage rating is 680 V, while the maximum DC voltage rating is 895 V.
The VDP275BSE can handle surge currents up to 6.5 kA.
The energy rating of the VDP275BSE is 496 joules.
This varistor has a diameter of 20 mm and a length of 32 mm, with a thickness of 1.1 mm.
The VDP275BSE is designed for through-hole mounting with a radial termination style.
This varistor is compliant with CSA, UL 1449, IEC 61051-1, and VDE standards.
It is commonly used for clipping, relay coil contact protection, and voltage stabilization in various electrical applications.
The varistor is constructed with metal material, which enhances its durability and reliability.
