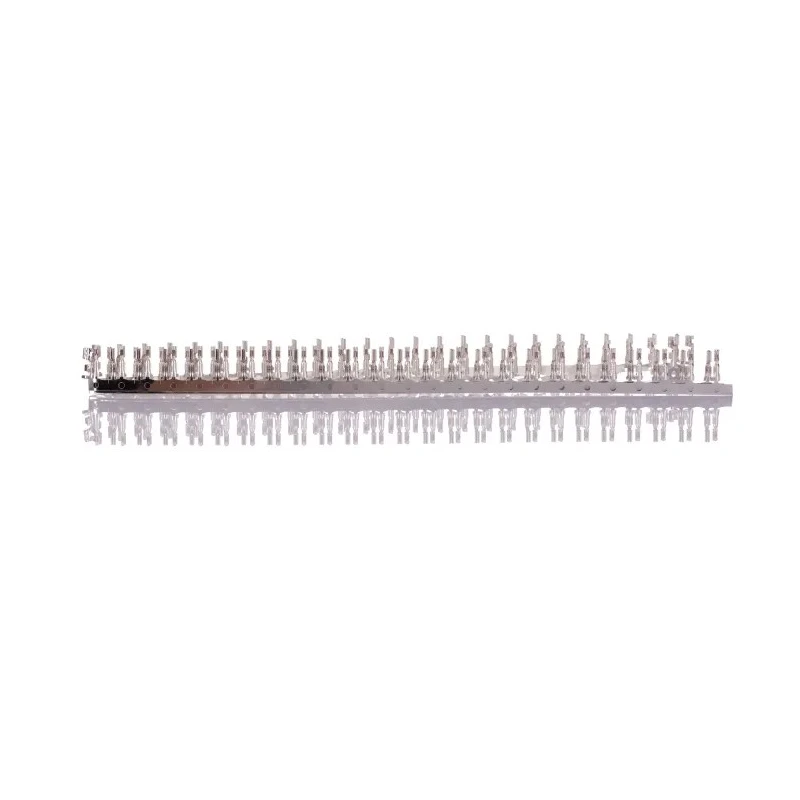

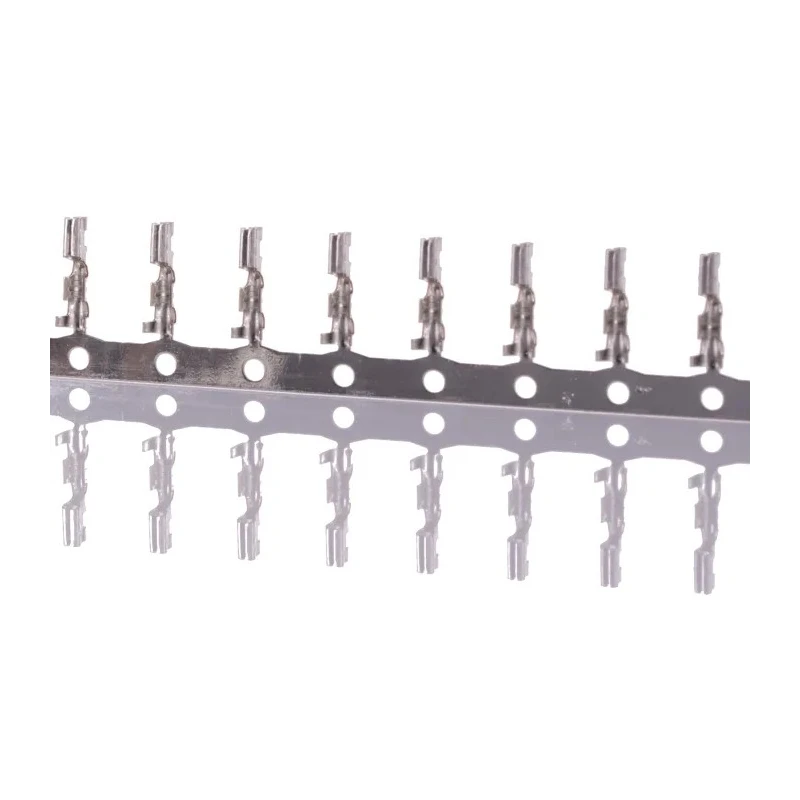

Molex 50802 Series Female Crimp Terminal 28 AWG Min Crimp 22 AWG Max 3A Tin Plated Phosphor Bronze 105°C 50802-8000

Free Delivery in India | Lowest Global Shipping Charges

Molex 50802 Series Female Crimp Terminal 28 AWG Min Crimp 22 AWG Max 3A Tin Plated Phosphor Bronze 105°C 50802-8000

Name: Molex 50802 Series Female Crimp Terminal 28 AWG Min Crimp 22 AWG Max 3A Tin Plated Phosphor Bronze 105°C 50802-8000
Brand: Molex
SKU: 103358
Price: 0.11 USD
Availability: InStock



Category Crimp Contacts Brand Molex Condition New

Specifications

Country of Origin	India
Brand	Molex
Current	3A
Gender	Female
Contact Material	Phosphor Bronze
Series	50802
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
For Use With	Mini-Latch Connector Housing
Contact Plating	Tin
Minimum Wire Size mm²	0.08mm²
Maximum Wire Size mm²	0.3mm²
Minimum Wire Size AWG	28AWG
Maximum Wire Size AWG	22AWG
Maximum Contact Resistance	20mΩ

Key Features

Constructed with phosphor bronze contacts for strength and corrosion resistance.
Tin contact plating ensures low resistance and efficient connectivity.
Supports current up to 3 amps for reliable electrical performance.
Compatible with Mini-Latch Connector Housing systems.
Operates efficiently in temperatures ranging from -40°C to 105°C.
Crimp termination type enables strong and moisture-resistant joins.
Compact 2.5mm pitch ideal for space-saving PCB layouts.
Suitable for factory automation, processing plant, and automotive production applications.

Product Description

Molex 50802-8000 is a female crimp terminal engineered for electronic component connections, supporting wire sizes from 0.08mm² (28 AWG) to 0.3mm² (22 AWG). This crimp contact is designed to complement Mini-Latch Connector Housing systems, providing reliable and efficient wire-to-board connectivity.

The terminal features phosphor bronze contacts which offer excellent mechanical strength and corrosion resistance, assuring a durable service life in industrial and commercial applications. Tin plating on the contact surfaces reduces electrical resistance, enhancing overall conductivity and performance.

Rated for a maximum current of 3 amps, this crimp terminal maintains safe operation within a wide thermal range from -40°C up to 105°C, making it suitable for challenging environments including factory automation and automotive manufacturing setups. The crimp termination ensures a tight bond that resists moisture ingress and other contaminants, preserving connection integrity over time.

The compact 2.5mm pitch facilitates space-efficient PCB design, allowing seamless integration into tight areas without sacrificing performance. This terminal is intended for use with hand crimping tools, enabling precise installation and consistent connection quality.

Phosphor bronze contacts provide strength and corrosion resistance for longevity. Tin plating offers low resistance for efficient electrical conduction. Supports wire sizes from 28 AWG (0.08mm²) to 22 AWG (0.3mm²). Designed for Mini-Latch Connector Housing compatibility.

Crimp termination type ensures moisture-resistant bonding. Operates within -40°C to 105°C for versatile industrial use. Suitable for applications in factory automation, processing plants, and automotive production.

This Molex 50802 Series Female Crimp Terminal is an essential component for electronics manufacturing, promoting reliable and secure connections across various industrial environments. Explore more products in the Crimp Contacts category at EnvMart to meet your electrical component needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This crimp terminal is rated for a maximum current of 3 amps, ensuring reliable electrical performance in various applications.

It supports wire sizes ranging from 28 AWG (0.08mm²) to 22 AWG (0.3mm²), making it versatile for different wiring needs.

The terminal operates efficiently within a temperature range of -40°C to 105°C, suitable for challenging industrial environments.

It features phosphor bronze contacts for strength and corrosion resistance, and is tin plated to ensure low electrical resistance.

Yes, it is designed for compatibility with Mini-Latch Connector Housing systems, facilitating reliable wire-to-board connections.

This model utilizes a crimp termination type, which ensures strong and moisture-resistant joins for reliable connections.

The terminal has a compact pitch size of 2.5mm, making it suitable for space-saving PCB layouts.

The maximum contact resistance for this crimp terminal is 20mΩ, which contributes to its efficient electrical performance.

It is suitable for applications in factory automation, processing plants, and automotive production, providing reliable connections in these environments.

This crimp terminal is female, designed to connect with corresponding male contacts in various applications.

The country of origin for this crimp terminal is India, where it is manufactured to meet industry standards.

This terminal is intended for use with hand crimping tools, which enable precise installation and consistent connection quality.
