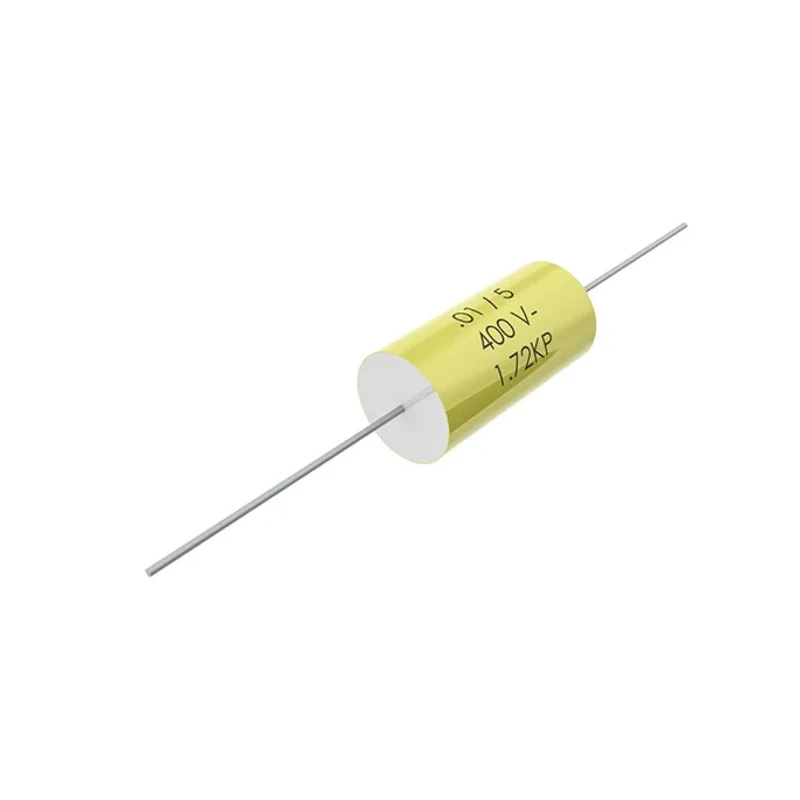

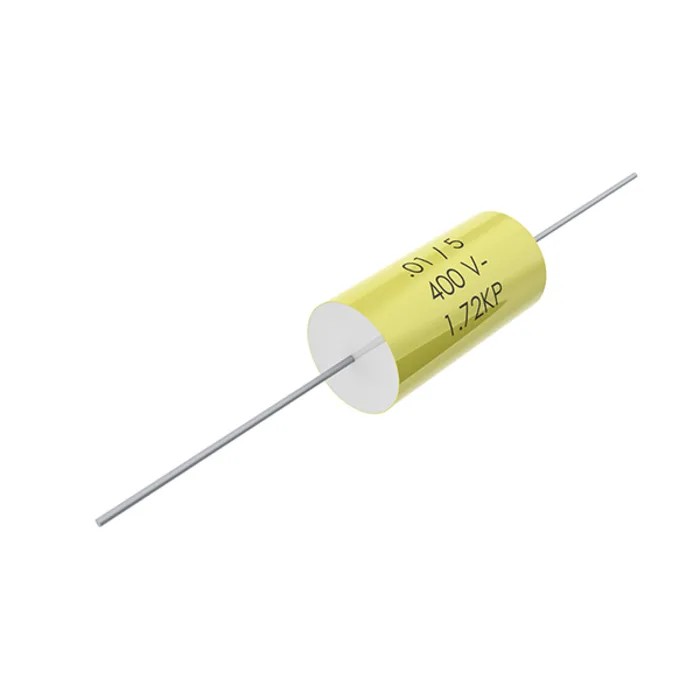

KEMET A72 Film Capacitor, 10 nF ±10 %, 1500 V DC, 450 V AC, Axial Lead Through Hole A72SQ2100AA00K
Specifications
| Country of Origin | Italy |
|---|---|
| Capacitance Range | 47 pF - 0.33 μF |
| Diameter | 5 - 22.5 mm |
| Brand | KEMET |
| Length | 28mm |
| Model | A72SQ2100AA00K |
| Width | 9.5mm |
| Mount Type | Through Hole |
| Series | A72 |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±10 % |
| Capacitance | 10nF |
| Minimum Operating Temperature | -55°C |
| Terminal type | Axial |
| Dissipation Factor | 0.1% |
| Lead Length | 40mm |
| Standards/Approvals | UL, IEC 60384-13 |
| Package/Case | Plastic |
| Pin Count | 2 |
| Rated AC Voltage | 450V ac |
| Rated DC Voltage | 1500V dc |
| Lead Diameter | 0.8mm |
| Capacitance tolerance | ±5%, ±10%, ±20% |
Key Features
- The capacitor has a capacitance of 10 nF with a tolerance of ±10 %.
- Designed for high frequency applications with rated AC voltage of 450 V and DC voltage of 1500 V.
- Constructed with polypropylene film and metal foil or metallized film and metal foil.
- Features axial leads with a lead length of 40 mm and lead diameter of 0.8 mm.
- Encapsulated in a plastic polyester tape wrapping case with thermosetting resin.
- Operating temperature range from -55°C to +105°C for versatile environmental usage.
- Complies with UL and IEC 60384-13 standards and approvals.
- Pin count of 2 and dissipation factor of 0.1 % ensure reliable electrical performance.
Product Description
KEMET A72SQ2100AA00K Film Capacitor is a precise passive electronic component with a capacitance of 10 nF and a tolerance of ±10 %, designed for use in demanding high-frequency applications. It is rated for a DC voltage of 1500 V and an AC voltage of 450 V, making it suitable for industrial, laboratory, and commercial electronics use.
This capacitor is constructed using polypropylene film and metal foil or metallized film and metal foil with axial leads made from tinned wire, which are electrically welded to the capacitor winding ends. The encapsulation is performed using a polyester tape wrapping case combined with thermosetting resin, providing robust environmental protection and electrical insulation.
The device features axial leads with a 40 mm lead length and 0.8 mm diameter, optimized for through-hole mounting. It measures 28 mm in length, 9.5 mm in width, and falls within a diameter range from 5 to 22.5 mm, making it compact for printed circuit board integrations.
Operating temperature ranges between -55°C and +105°C, enabling stable performance under extreme conditions. The capacitor complies with internationally recognized UL and IEC 60384-13 safety and quality standards. It also offers a low dissipation factor of 0.1 %, indicating energy efficiency and low power loss.
The pin count is 2, allowing straightforward integration into circuits. This product is lead-free in its terminations, supporting environmentally conscious manufacturing practices.
Applications are diverse across industrial electronics, power supplies, filtering circuits, signal processing, and high-frequency switching devices. Its construction ensures self-healing properties enhancing reliability and longevity.
Manufactured in Italy, this KEMET Film Capacitor blends trusted engineering with performance excellence. The set does not include additional components and is packaged as a single capacitor unit, ready for direct installation.
Explore more electronics components from KEMET and similar high-performance capacitors on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The KEMET A72 Film Capacitor has a capacitance of 10 nF with a tolerance of ±10 %.
It is rated for a DC voltage of 1500 V and an AC voltage of 450 V.
The operating temperature range is from -55°C to +105°C.
The axial leads have a length of 40 mm and a diameter of 0.8 mm.
It measures 28 mm in length, 9.5 mm in width, and has a diameter range from 5 to 22.5 mm.
The dissipation factor is 0.1 %, indicating low power loss.
It complies with UL and IEC 60384-13 standards and approvals.
This capacitor is designed for through-hole mounting.
It is constructed using polypropylene film and metal foil or metallized film and metal foil.
This model has a pin count of 2.
It is suitable for industrial electronics, power supplies, filtering circuits, signal processing, and high-frequency switching devices.
This KEMET Film Capacitor is manufactured in Italy.
