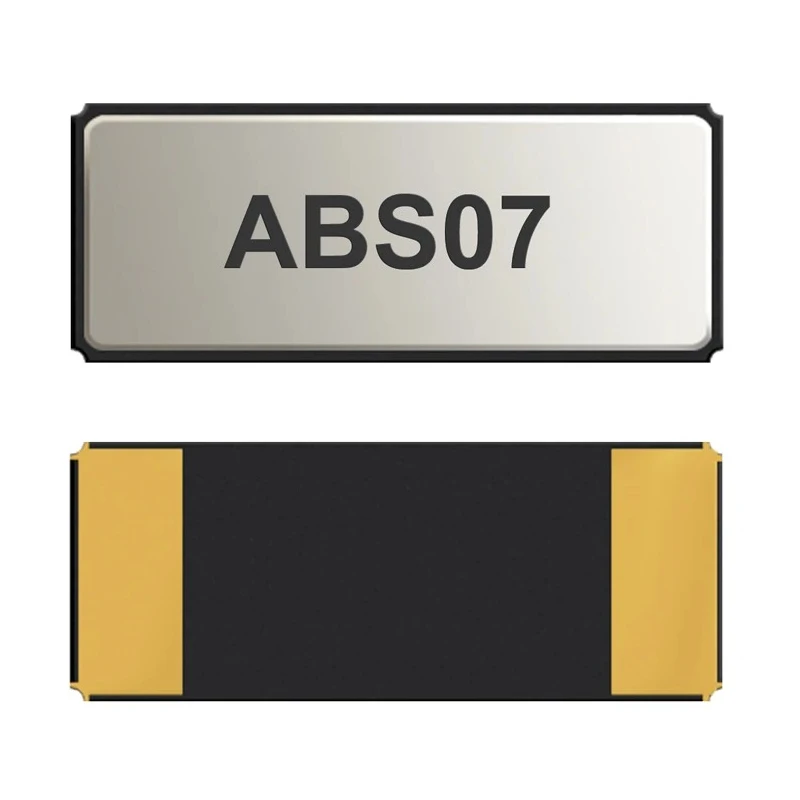

Abracon 32.76 kHz Crystal Unit ±20 ppm Surface Mount 2-Pin 0.9 mm Height 3.2 mm Length 1.5 mm Width ABS07-32.768kHz-9-H-T

Abracon ABS07-32.768kHz-9-H-T is a 32.76 kHz crystal unit designed for precise frequency control in electronic circuits. This surface mount device features a small 2-pin ceramic package with a height of 0.9 mm, length of 3.2 mm, and width of 1.5 mm, making it ideal for high density circuit board applications. The crystal unit offers a frequency tolerance of ±20 ppm and a load capacitance of 9 pF, delivering stable timing performance in a wide range of commercial and industrial electronic devices.

This crystal unit operates reliably between -40°C and 125°C, suitable for harsh environments and extended temperature applications including wireless communications, measuring equipment, PDAs, and smartphones. The ceramic seam-sealed package provides excellent environmental and thermal resistance, ensuring longevity and stability of oscillation frequencies.

With a maximum series resistance of 70 kΩ, the ABS07 series crystal unit supports low frequency crystal oscillators requiring consistent resonance characteristics. This component is RoHS compliant, reflecting adherence to international environmental standards.

The unit is supplied in tape and reel packaging facilitating efficient automated mounting on printed circuit boards in manufacturing processes. It is best suited for applications in communication, industrial control, and portable consumer electronics.

Standard frequency of 32.76 kHz suitable for timing circuits. Compact surface mount package with 0.9 mm height for space-saving PCB design. ±20 ppm frequency tolerance for reliable timing accuracy. Package dimensions: 3.2 mm length x 1.5 mm width x 0.9 mm height.

Load capacitance of 9 pF for precise oscillation settings. Operating temperature range from -40°C to 125°C for extended use cases. Series resistance up to 70 kΩ for stable frequency response. RoHS compliant ceramic package with excellent environmental resistance.

Packaged in tape and reel for automated assembly processes.

This Abracon Crystal Unit is widely utilized in industrial, commercial, wireless communication, and measuring equipment applications. It offers reliable frequency control essential for embedded systems and precision electronic designs. Explore more electronics components on EnvMart for your project requirements.
