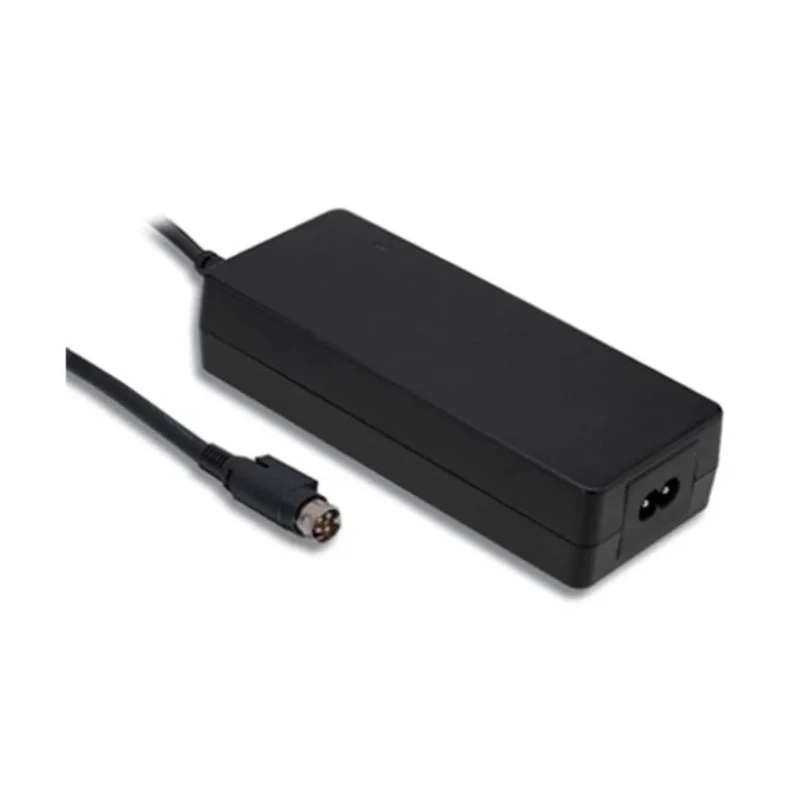

MEAN WELL Medical Grade AC/DC Adapter Type C 264V AC Input 3.34 A 48 V DC Output GSM160B48-R7B
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Model | GSM160B48-R7B |
| Cable Length | 1200mm |
| Overall Length | 175mm |
| Series | GSM160B |
| Overall Width | 72mm |
| Maximum Operating Temperature | 70°C |
| Plug Type | Type C |
| Maximum Input Voltage | 264V ac |
| Maximum Output Current | 3.34A |
| Standards/Approvals | CE, UL 60950-1, IEC 60950-1 |
| Minimum Input Voltage | 80V ac |
| Overall Depth | 35mm |
| Minimum Output Voltage | 48V dc |
| Output Connector Type | DC Jack |
| Input Connector Type | IEC 320-C8 |
| Better World Verification | UL Energy Verified |
Key Features
- Equipped with Type C plug and IEC 320-C8 3-pole AC inlet for stable power input.
- Maximum output current rating of 3.34 A and output voltage of 48 V DC.
- Compact size with overall dimensions 175 mm length, 72 mm width, and 35 mm depth.
- Fanless design with operating temperature range up to 70°C providing silent and reliable operation.
- Meets CE, UL 60950-1, and IEC 60950-1 standards ensuring safety and quality compliance.
- High energy efficiency rated at Level VI with low no-load power consumption.
- Integral active power factor correction for improved energy efficiency.
- Fully protected against short circuit, overload, over voltage, and over temperature conditions.
Product Description
MEAN WELL GSM160B48-R7B is a medical grade AC/DC adapter designed to deliver reliable 160 W power for a variety of applications. Featuring a Type C plug and IEC 320-C8 AC inlet, it supports a wide input voltage range from 80 V AC to 264 V AC. The power supply outputs a regulated 48 V DC voltage with a maximum output current of 3.34 A.
This adapter is engineered for safety and energy efficiency, meeting CE, UL 60950-1, IEC 60950-1 certifications, and Level VI energy efficiency standards. Its fanless design enables silent operation within an operating temperature range of -30 to +70°C, making it suitable for medical and industrial environments.
The GSM160B48-R7B includes integral active power factor correction (PFC), which helps reduce energy losses and improve power quality. The fully enclosed casing complies with 94V-0 flame retardant standards, ensuring durability and fire safety. Protection features include safeguards against short circuit, overload, over voltage, and over temperature, combined with an LED power status indicator for user convenience.
Typical applications for this adapter include mobile clinical workspaces, breath machines, medical computer monitors, oral irrigators, and portable hemodialysis machines. Its reliable and energy-efficient design makes it ideal for medical equipment power management and other industrial uses.
Equipped with Type C plug and IEC 320-C8 3-pole AC inlet for stable power input. Maximum output current rating of 3.34 A and output voltage of 48 V DC. Compact size with overall dimensions 175 mm length, 72 mm width, and 35 mm depth.
Fanless design with operating temperature range up to 70°C providing silent and reliable operation. Meets CE, UL 60950-1, and IEC 60950-1 standards ensuring safety and quality compliance. High energy efficiency rated at Level VI with low no-load power consumption.
Integral active power factor correction for improved energy efficiency. Fully protected against short circuit, overload, over voltage, and over temperature conditions. LED indication for power status and fully enclosed flame retardant casing (94V-0 rated).
Explore a range of quality AC/DC Adapters and power supplies in the Electronics & Electricals category at EnvMart for your industrial, medical, and general power management needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output current of this model is 3.34 A.
It supports a wide input voltage range from 80 V AC to 264 V AC.
The output voltage is regulated at 48 V DC.
The overall dimensions are 175 mm in length, 72 mm in width, and 35 mm in depth.
It is equipped with a Type C plug and an IEC 320-C8 3-pole AC inlet.
It meets CE, UL 60950-1, and IEC 60950-1 standards for safety and quality compliance.
The operating temperature range is from -30°C to +70°C.
Yes, it is fully protected against short circuit, overload, over voltage, and over temperature conditions.
It is rated at Level VI energy efficiency with low no-load power consumption.
The output connector type is a DC jack.
The cable length is 1200 mm.
