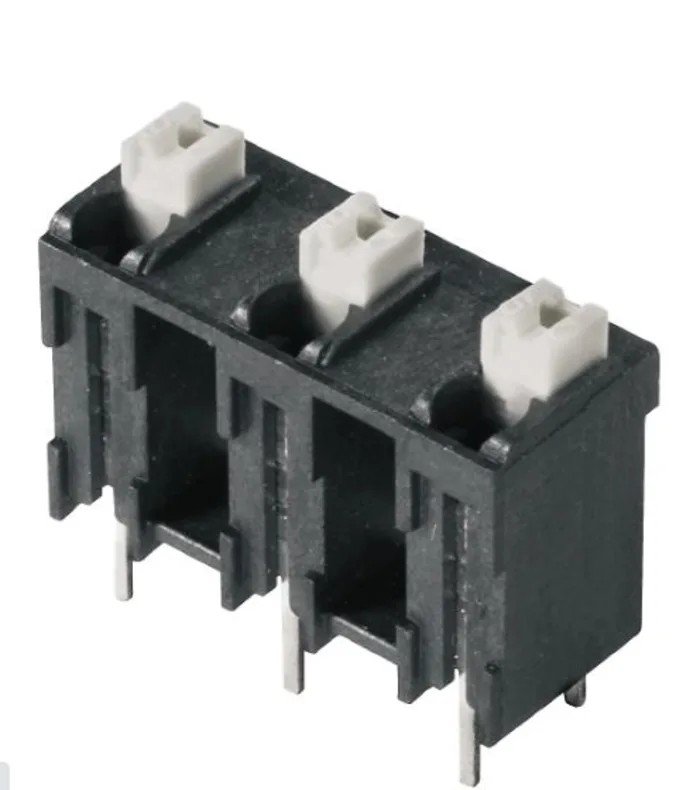

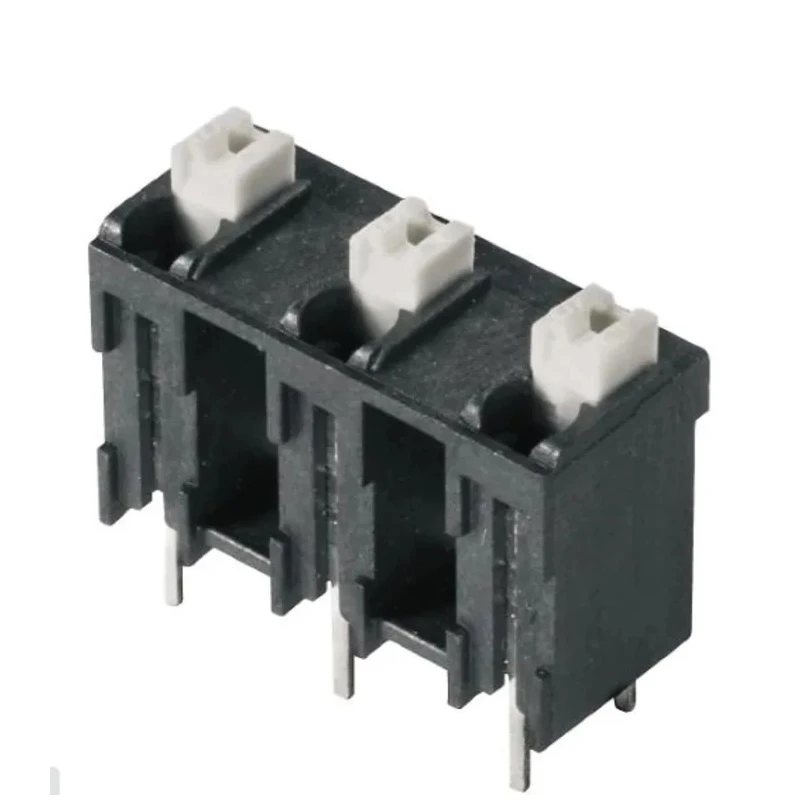

Weidmüller PCB Terminal Block LSF Series 5-Contact 7.5 mm Pitch 1 Row 800V 17.5A 1826160000
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 800V |
| Brand | Weidmüller |
| Colour | Black |
| Orientation | 180° |
| Current | 17.5A |
| Length | 3.5mm |
| Depth | 7.8mm |
| Width | 34.2mm |
| Housing Material | Fibreglass Liquid Crystal Polymer |
| Series | LSF |
| Number of Rows | 1 |
| Pitch | 7.5mm |
| Standards/Approvals | RoHS, UL |
| Number of Contacts | 5 |
| Minimum Wire Size mm² | 0.13mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 14AWG |
| Wire Connection Method | Push-in |
Key Features
- The terminal block utilizes a push-in wire connection method for ease of installation.
- Constructed from fibreglass liquid crystal polymer providing robust housing.
- Supports wire sizes ranging from 0.13 mm² to 1.5 mm² (28 AWG to 14 AWG).
- Features a compact design with a length of 3.5 mm, width of 34.2 mm, and depth of 7.8 mm.
- Ensures secure 180° orientation for reliable circuit connections.
- Compatible with automated SMT reflow soldering processes.
- Clear marking of potentials and clamping points with coloured push buttons.
- Certified to RoHS and UL standards for quality and safety.
Product Description
Weidmüller 1826160000 PCB Terminal Block LSF Series is a technical-grade 5-contact terminal block designed for PCB mounting with a 7.5 mm pitch and a single row configuration. It supports a voltage rating of 800V and current rating of 17.5A, ideal for industrial and electronic applications.
The terminal block features a push-in connection method enabling tool-free, efficient conductor insertion and quick slider operation, both from the top, which simplifies wiring during assembly.
Its housing is made of fibreglass liquid crystal polymer ensuring high mechanical strength and heat resistance suitable for automated reflow soldering in SMT processes. The compact dimensions (length 3.5 mm, width 34.2 mm, depth 7.8 mm) facilitate use in space-sensitive electronic designs.
This product supports wire cross sections from 0.13 mm² (28 AWG) to 1.5 mm² (14 AWG), allowing versatile cable connection options. It maintains a 180° orientation, ensuring reliable and consistent connections.
The LSF Series is engineered with clear colour-coded push buttons marking potentials and clamping points for ease of installation and maintenance. The unit complies with RoHS and UL standards, assuring industry-standard quality, safety, and environmental regulations.
Applications span electronic circuit boards in industrial automation, power distribution, electronic assembly lines, and manufacturing equipment requiring durable and compact terminal connectors.
The terminal block provides tool-free push-in wire connection. High-performance fibreglass liquid crystal polymer housing. Supports a 5-contact configuration with a pitch of 7.5 mm. Designed for reflow soldering and automated assembly processes.
Suitable for wire sizes 0.13 mm² to 1.5 mm². Certified to RoHS and UL standards ensuring compliance and safety. Compact dimensions enable use in space-constrained applications. Voltage and current ratings of 800V and 17.5A respectively.
Explore more Weidmüller PCB Terminal Blocks and related products on EnvMart’s extensive electronics components category for industrial and commercial use.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block has a voltage rating of 800V and a current rating of 17.5A.
It supports wire sizes ranging from 0.13 mm² to 1.5 mm², which corresponds to 28 AWG to 14 AWG.
The terminal block features a 7.5 mm pitch and has a single row configuration with 5 contacts.
The housing is made from fibreglass liquid crystal polymer, providing mechanical strength and heat resistance.
It utilizes a push-in connection method, allowing for tool-free and efficient conductor insertion.
The terminal block measures 3.5 mm in length, 34.2 mm in width, and 7.8 mm in depth.
Yes, it is designed for compatibility with automated SMT reflow soldering processes.
It maintains a 180° orientation to ensure reliable circuit connections.
It is certified to RoHS and UL standards, ensuring compliance with quality and safety regulations.
It is suitable for electronic circuit boards in industrial automation, power distribution, and electronic assembly lines.
The terminal block features clear colour-coded push buttons for marking potentials and clamping points, aiding installation and maintenance.
The terminal block is manufactured in India.
