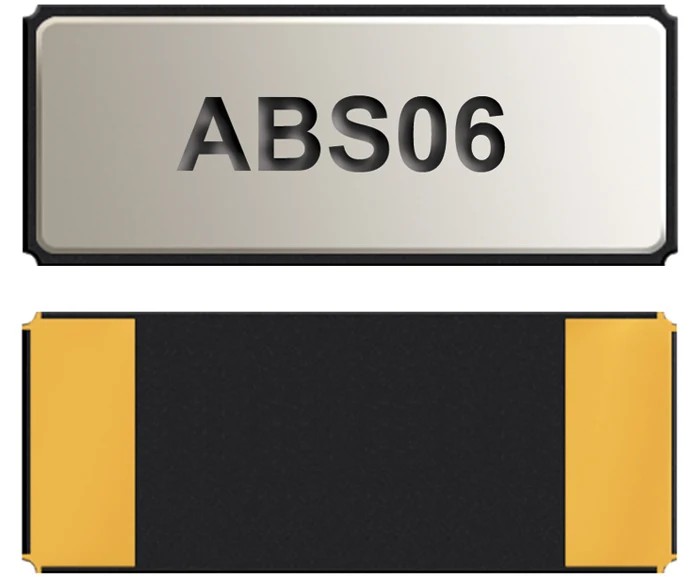

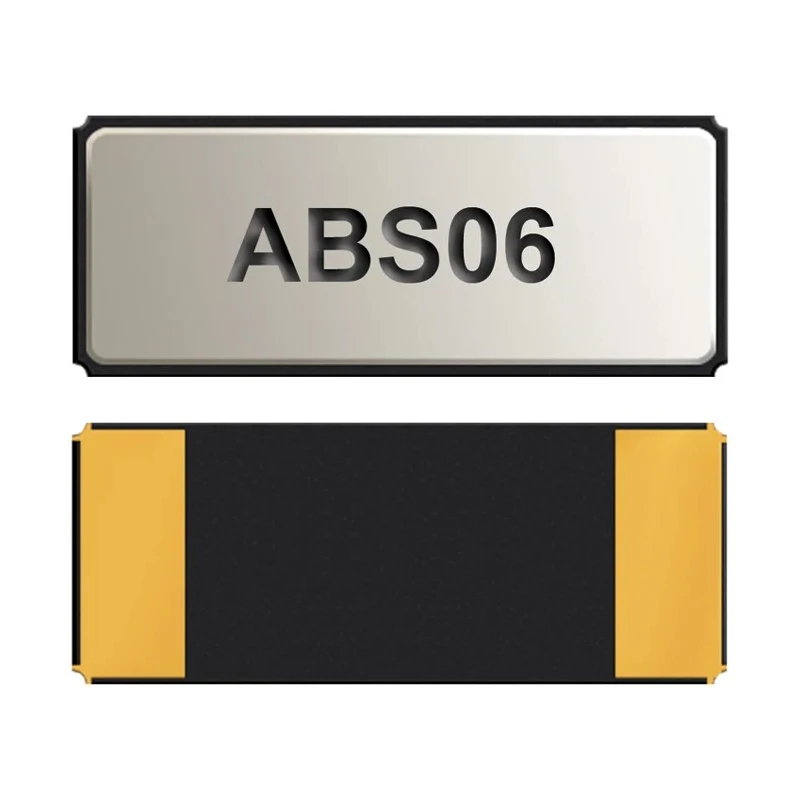

Abracon 32.768 kHz Crystal Unit ±10 ppm Surface Mount 2-Pin 0.6 mm Height 2 mm Length 1.2 mm Width ABS06-32.768KHZ-9-1-T

The Abracon ABS06-32.768KHZ-9-1-T is a high precision crystal unit featuring a standard frequency of 32.768 kHz with a frequency tolerance of ±10 ppm. Designed for surface mount applications, this 2-pin crystal unit measures 2 mm in length, 1.2 mm in width, and 0.6 mm in height, making it ideal for high-density printed circuit boards.

This crystal unit comes in a seam sealed ceramic package that ensures exceptional resistance to environmental and thermal stresses, extending its reliability across industrial and commercial applications. It operates efficiently over a wide temperature range from -40°C to 85°C, suitable for demanding conditions.

With a low maximum series resistance of 90 kΩ, it excels in low power consumption designs, particularly suited for power sensitive devices such as ST-Micro STM32L microcontroller-based solutions. Its load capacitance is rated at 9 pF, supporting stable oscillation frequency and performance.

The ABS06 series is packed in tape and reel format, facilitating automated pick-and-place manufacturing processes. This crystal unit is widely applied in communication devices, measurement equipment, PDAs, smartphones, and other consumer and wireless communication products.

Standard frequency of 32.768 kHz suitable for timekeeping applications. Surface mount package optimized for high-density circuit boards. Low series resistance of 90 kΩ ensuring low power consumption. Extended operating temperature range from -40°C to 85°C for industrial environments.

Compact dimensions of 2 mm length, 1.2 mm width, and 0.6 mm height. Tape and reel packaging for automated manufacturing processes. Seam sealed ceramic package provides excellent environmental and heat resistance. Ideal for power sensitive designs including STM32L MCU solutions.
