AKER 20 MHz Crystal ±30 ppm Surface Mount 4-Pin 0.75 mm Height 3.2 mm Length 2.5 mm Width C3E-20.000-12-3030-X

Free Delivery in India | Lowest Global Shipping Charges

AKER 20 MHz Crystal ±30 ppm Surface Mount 4-Pin 0.75 mm Height 3.2 mm Length 2.5 mm Width C3E-20.000-12-3030-X

Name: AKER 20 MHz Crystal ±30 ppm Surface Mount 4-Pin 0.75 mm Height 3.2 mm Length 2.5 mm Width C3E-20.000-12-3030-X
Brand: Aker
SKU: 101111
Price: 0.54 USD
Availability: InStock



Category Crystal Unit Brand Aker Condition New

Specifications

Country of Origin	Taiwan
Brand	AKER
Height	0.75mm
Length	3.2mm
Model	C3E-20.000-12-3030-X
Packaging	Tape & Reel
Width	2.5mm
Mount Type	Surface
Series	C3E
Maximum Operating Temperature	85°C
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	4
Standard Frequency	20MHz
Load Capacitance	12pF
Series Resistance	100Ω
MERCURY 20MHz Crystal ±30ppm SMD 4-Pin 3.2 x 2.5 x 0.7mmBrand	MERCURY

Key Features

This crystal unit operates at a standard frequency of 20 MHz.
It features a surface mount package with 4 pins.
Load capacitance is specified at 12 pF for accurate oscillation.
The device has a frequency tolerance and stability of ±30 ppm.
Operating temperature ranges from -40°C to 85°C ensuring wide environmental suitability.
Packaging method is tape and reel, suitable for automated PCB assembly.
Series resistance is rated at 100 Ω for low loss operation.
Constructed with a ceramic case and metal lid for durability and environmental resistance.

Product Description

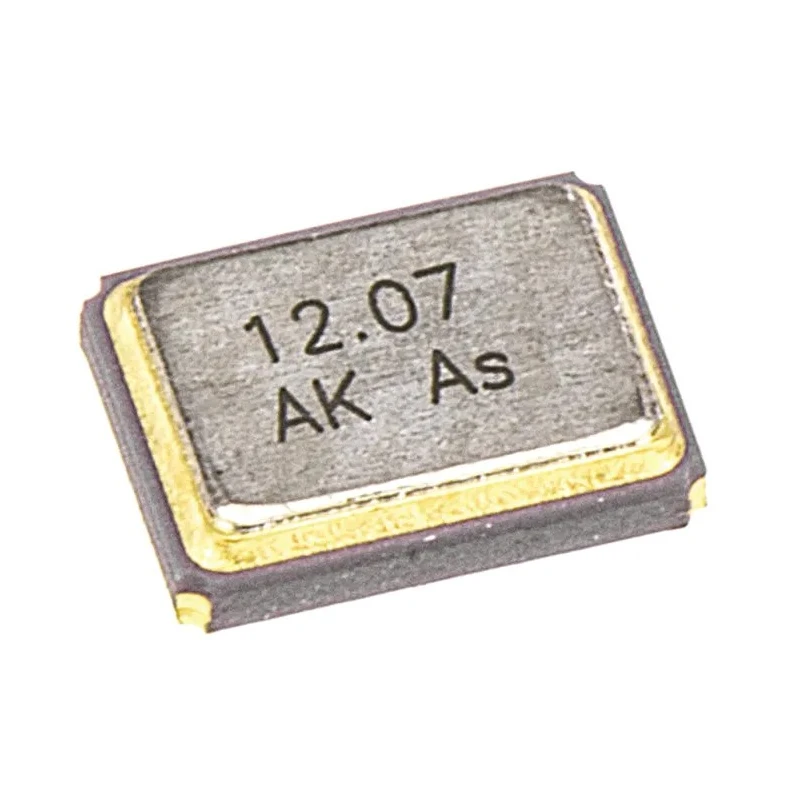

AKER C3E-20.000-12-3030-X is a 20 MHz microprocessor crystal unit designed for surface mount applications. This precision passive component offers a frequency tolerance of ±30 ppm, ensuring stable and reliable oscillations in electronic circuits.

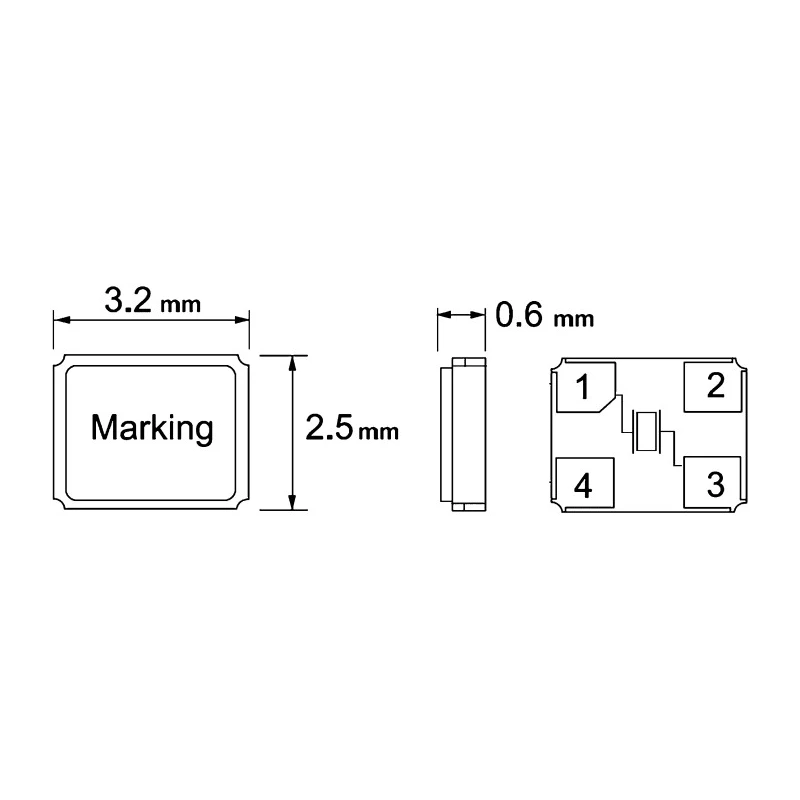

The crystal is packaged in a low-profile ceramic case measuring 3.2 mm in length, 2.5 mm in width, and 0.75 mm in height, with a sealed metal lid to provide excellent environmental protection. It features 4 pins suitable for automated surface mount technology (SMT) assembly processes and comes supplied in tape and reel packaging for mass production efficiency.

Operating over a broad temperature range of -40°C to 85°C, this crystal unit is built to withstand shock and vibration, making it suitable for robust industrial, electronic manufacturing, laboratory devices, and embedded microcontroller applications.

Key product characteristics include a load capacitance of 12 pF and a series resistance of 100 Ω, which support stable frequency output and low signal loss. The C3E series collection brings proven reliability and compliance with RoHS environmental standards.

Applications extend to timing circuits, oscillators for communication equipment, instrumentation, and other electronics requiring precise frequency control. This crystal unit operates at a standard frequency of 20 MHz. It features a surface mount package with 4 pins.

Load capacitance is specified at 12 pF for accurate oscillation. The device has a frequency tolerance and stability of ±30 ppm. Operating temperature ranges from -40°C to 85°C ensuring wide environmental suitability. Packaging method is tape and reel, suitable for automated PCB assembly.

Series resistance is rated at 100 Ω for low loss operation. Constructed with a ceramic case and metal lid for durability and environmental resistance. Country of origin is Taiwan, Province Of China. Explore more precision electronic components and Crystal Units from trusted brands at EnvMart for industrial and research applications.
