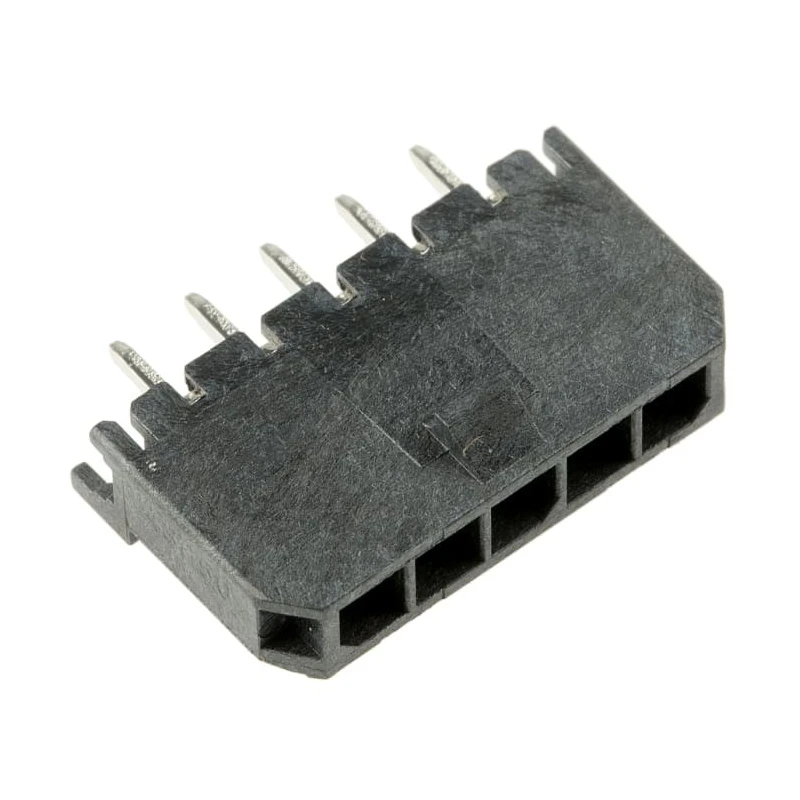

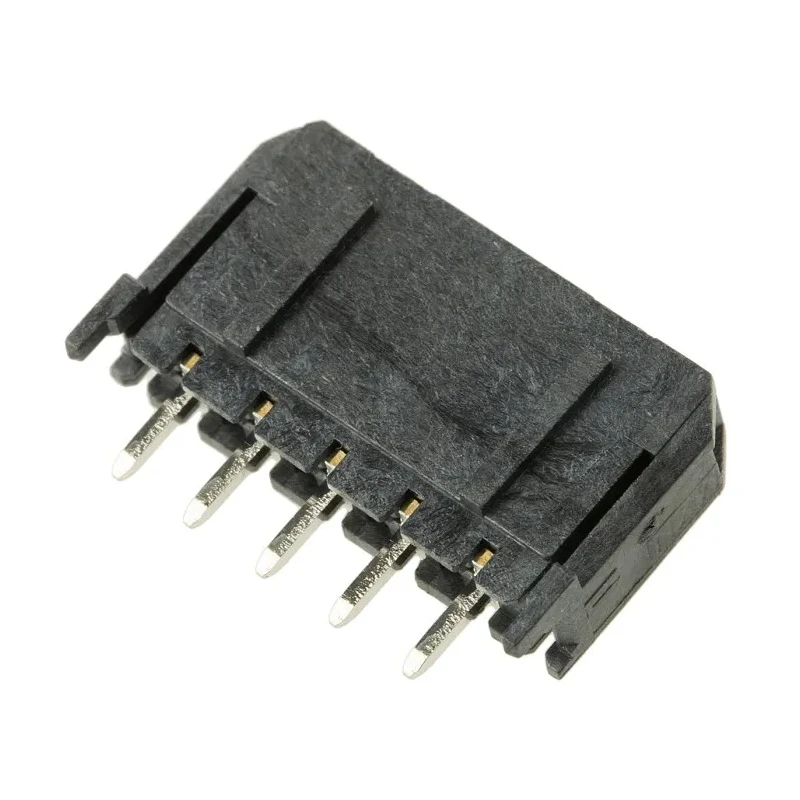

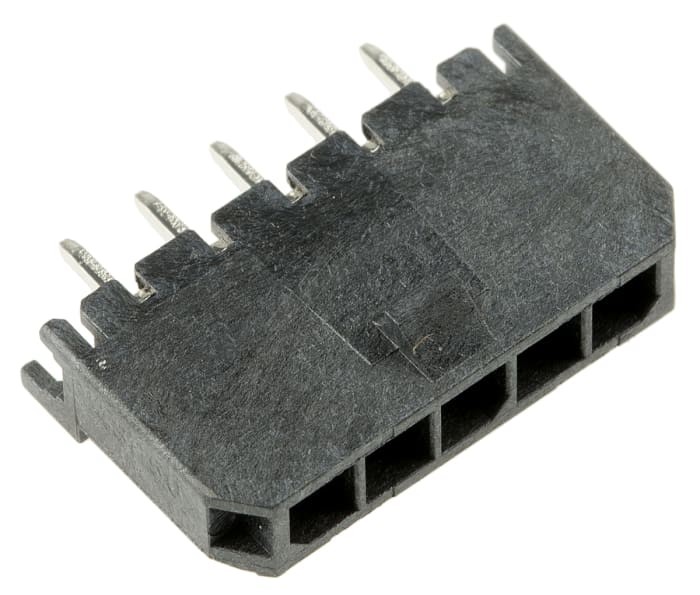

Molex Micro-Fit 3.0 Series Straight Through Hole PCB Header 5 Contacts 3 mm Pitch 1 Row Shrouded 43650-0527
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 5A |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | Micro-Fit 3.0 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 3mm |
| Contact Plating | Tin |
| Number of Contacts | 5 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- This PCB header supports wire-to-board connection with a 3 mm pitch for compact design.
- Contains 5 brass contacts plated with tin to ensure corrosion resistance.
- The housing material is thermoplastic rated for high temperatures up to 265°C during IR reflow soldering.
- Features positive latching and PCB polarizing pegs for secure and accurate mounting.
- Designed for through hole mounting but also SMT compatible to reduce processing costs.
- Operates reliably between -40°C and 105°C ambient temperatures.
- Suitable for applications in military, solar power, consumer electronics, telecommunications, and gaming terminals.
Product Description
Molex 43650-0527 Micro-Fit 3.0 Series straight through hole PCB header is a high-quality wire-to-board connector designed for low to mid-range power distribution. It features 5 male contacts arranged in a single row with 3 mm pitch spacing, housed in a thermoplastic body rated UL 94V-0 capable of withstanding high temperatures during soldering.
The shrouded header includes positive latching via locking ramps on the housing to prevent accidental disconnection and polarizing pegs to aid in proper alignment during PCB assembly. Contacts are made of brass and plated with tin for enhanced electrical conductivity and corrosion resistance. The through hole mounting style allows for robust PCB attachment, and the SMT compatibility reduces manufacturing complexity and cost.
This connector supports a current rating of 5A and a voltage of up to 250V, making it suitable for various electronic applications such as military commercial off-the-shelf equipment, solar power systems, consumer household appliances like dryers and refrigerators, telecommunications equipment, data communications hardware including routers and servers, medical devices, and gaming terminals.
Additional features include fully isolated dual beam terminals for reliable contact and glow wire compliance for safety. PCB polarizing pegs and optional kinked solder legs on some part numbers provide extra position security during manufacturing and operating conditions.
This PCB header supports wire-to-board connection with a 3 mm pitch for compact design. Contains 5 brass contacts plated with tin to ensure corrosion resistance. The housing material is thermoplastic rated for high temperatures up to 265°C during IR reflow soldering.
Features positive latching and PCB polarizing pegs for secure and accurate mounting. Designed for through hole mounting but also SMT compatible to reduce processing costs. Operates reliably between -40°C and 105°C ambient temperatures.
Suitable for applications in military, solar power, consumer electronics, telecommunications, and gaming terminals. Explore the full range of Molex connectors and PCB Headers on EnvMart for reliable electronic component solutions tailored to your industrial and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header has a current rating of 5A, making it suitable for low to mid-range power distribution applications.
It can handle a maximum voltage of 250V, suitable for various electronic applications.
This model operates reliably between -40°C and 105°C ambient temperatures.
The contacts are arranged with a pitch size of 3 mm, allowing for compact design in wire-to-board connections.
The housing is made of thermoplastic, and the contacts are brass plated with tin for enhanced conductivity and corrosion resistance.
This PCB header features 5 male contacts arranged in a single row.
Yes, it is designed for through hole mounting, providing robust attachment to PCBs.
Yes, it includes positive latching and PCB polarizing pegs to ensure secure and accurate mounting during assembly.
The termination type for this model is solder, which is common for PCB connections.
It is suitable for applications in military, solar power, consumer electronics, telecommunications, and gaming terminals.
The country of origin for this PCB header is India.
The housing material is rated for high temperatures up to 265°C during IR reflow soldering.
