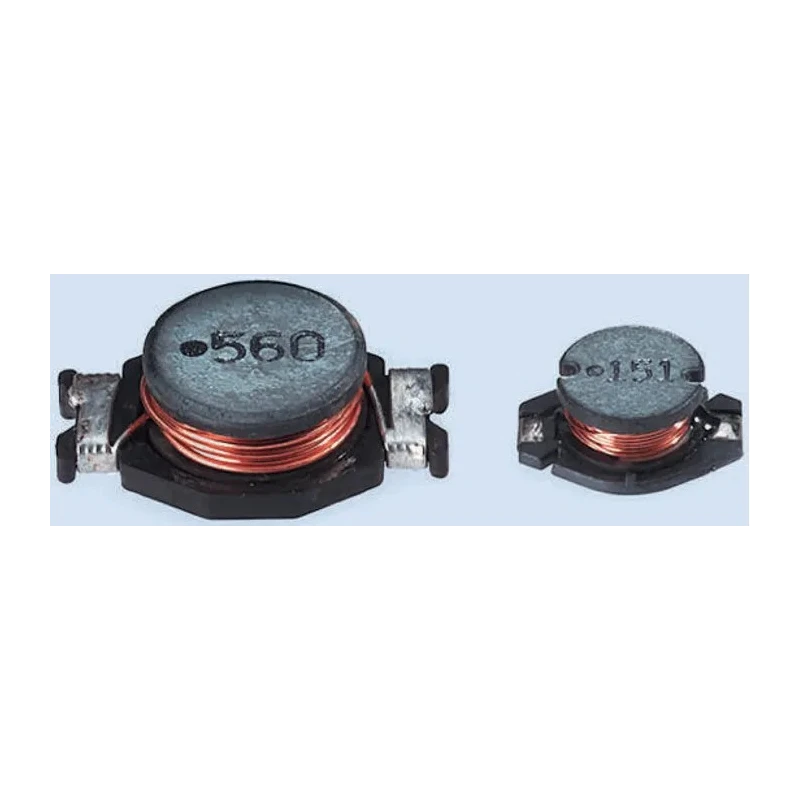

Wurth Elektronik WE-PD4 Unshielded Wirewound Surface Mount Inductor with Ferrite Core, 15μH ±20 %, 2.9 A Idc, 74456115

Wurth Elektronik 74456115 is a WE-PD4 series unshielded wirewound surface mount inductor featuring a ferrite core that offers an inductance of 15μH with ±20 % tolerance. It supports a maximum DC current of 2.9 A and operates within a wide temperature range from -40°C to 125°C. Its compact size of 12.7mm length, 7.6mm diameter, and 5mm height makes it suitable for space-constrained electronic designs.

The inductor utilizes a high-quality ferrite core and wirewound construction to provide efficient current handling with a maximum DC resistance of 60mΩ, minimizing power loss. It has a maximum self-resonant frequency of 17MHz, making it ideal for high-efficiency switch-mode power supplies (SMPS) and interference suppression applications.

Manufactured with industry compliance including JEDEC JS709B, REACH, and RoHS, this inductor ensures reliable performance and environmental safety. It is supplied on a tape & reel package to support automated PCB mounting and assembly processes, enhancing manufacturing productivity.

This product is well-suited for industrial, electronic manufacturing, and power supply applications where stable inductive components with compact footprints are required. It is designed for engineers and technicians seeking reliable surface mount power inductors with proven quality and compliance.

The inductor features unshielded wirewound construction for robust current capacity. Compact form factor fits tight PCB layouts with 12.7mm×7.6mm×5mm dimensions. Wide operating temperature range ensures durability in challenging environments.

Complies with JEDEC JS709B, REACH, and RoHS standards for safety and environmental compliance. Low DC resistance reduces heat generation and power losses for energy-efficient circuits. High self-resonant frequency supports operation at signals up to 17 MHz.

Packaging on tape & reel enables streamlined surface mount assembly. Ferrite core material provides stable magnetic properties. Surface mount termination style compatible with SMT processes. Part of the WE-PD4 series tailored for power inductors and choke applications.
