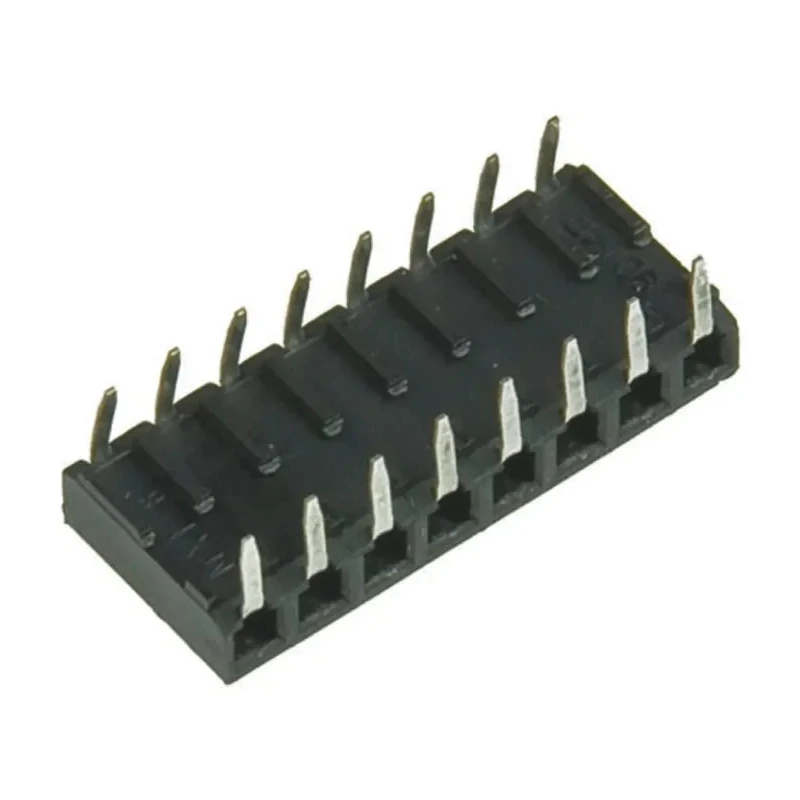

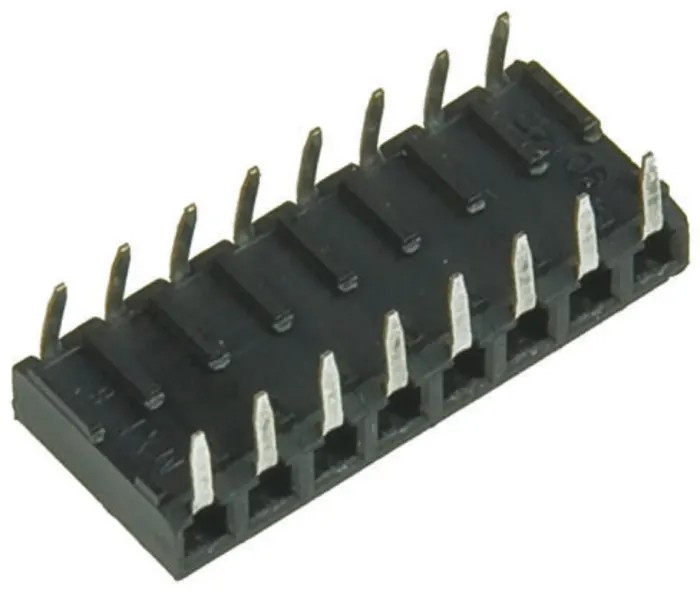

Molex C-Grid Series Right Angle Through Hole PCB Socket, 10-Contact, 1 Row, 2.54 mm Pitch, 12A Current, 350V 90148-1110
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 12A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Bronze |
| Series | C-Grid |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 10 |
| Contact Gender | Female |
| Connector System | Board-to-Board, Signal |
Key Features
- Constructed with polyester housing material for durability.
- Right angle orientation supports board-to-board signal connections.
- Contact material is bronze with tin plating for reliable conductivity.
- Mount type is through hole for robust PCB integration.
- Operates safely between -55°C and 125°C temperature range.
- Designed for 350V voltage operation and mating with 0.64 mm square pin headers.
- Part of the C-Grid series, providing standardized connector performance.
- Female contact gender suitable for signal connection plugs.
Product Description
Molex 90148-1110 C-Grid Series Right Angle Through Hole PCB Socket is a high-performance connector designed to provide reliable board-to-board signal transmission in industrial, electronic, and manufacturing applications. With 10 contacts arranged in a single row at a 2.54 mm pitch, this socket supports robust 12A current and 350V voltage, making it ideal for various electronic circuit designs.
The polyester housing ensures mechanical stability, while the bronze contacts plated in tin deliver excellent conductivity and corrosion resistance. This connector is intended for through-hole mounting, enhancing board retention and mechanical integrity in harsh environments.
It operates within a broad temperature range from -55°C to 125°C, suitable for diverse industrial and commercial electronics. The socket mates with 0.64 mm square pin headers, typically from the 90120 Series, available as straight or 90° pins, facilitating versatile PCB configurations.
Durable polyester housing material provides long-lasting mechanical support. Right angle orientation optimizes PCB space and connection layout. Bronze contact material with tin plating ensures consistent electrical performance.
Suitable for 12A current and 350V voltage electrical loads. Through hole mount type offers stable and secure PCB integration. Wide operating temperature range from -55°C to 125°C for varied environments. Compatible with 0.64 mm square pin headers, enhancing connectivity options.
Single row, 10-contact configuration at standard 2.54 mm pitch. Female contacts designed for signal connector applications.
Typical applications include industrial electronic circuits, laboratory instrumentation, automation equipment, communication devices, and other PCB-connected systems. The product is ideal for enhancing manufacturing efficiency and assembly reliability.
The set contains one Molex 90148-1110 PCB socket. For further design and mechanical modeling, 3D models, schematics, and footprints are available from design resources. Explore the Molex brand and C-Grid series PCB Sockets category on EnvMart for comprehensive connectivity solutions tailored to industrial and electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB socket supports a maximum current rating of 12A.
The socket is designed for operation at a voltage of 350V.
The contacts in this socket are arranged at a pitch size of 2.54 mm.
It operates within a temperature range of -55°C to 125°C.
This model uses a through hole mounting type for robust PCB integration.
The housing is made of polyester, and the contacts are bronze with tin plating.
This socket features 10 contacts arranged in a single row.
The orientation of this socket is right angle, which supports board-to-board connections.
It is designed for board-to-board signal connections.
The contacts in this socket are female, suitable for signal connection plugs.
This socket mates with 0.64 mm square pin headers, typically from the 90120 Series.
The country of origin for this socket is India.
