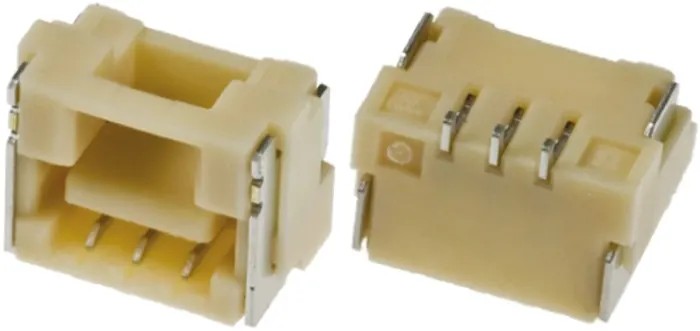

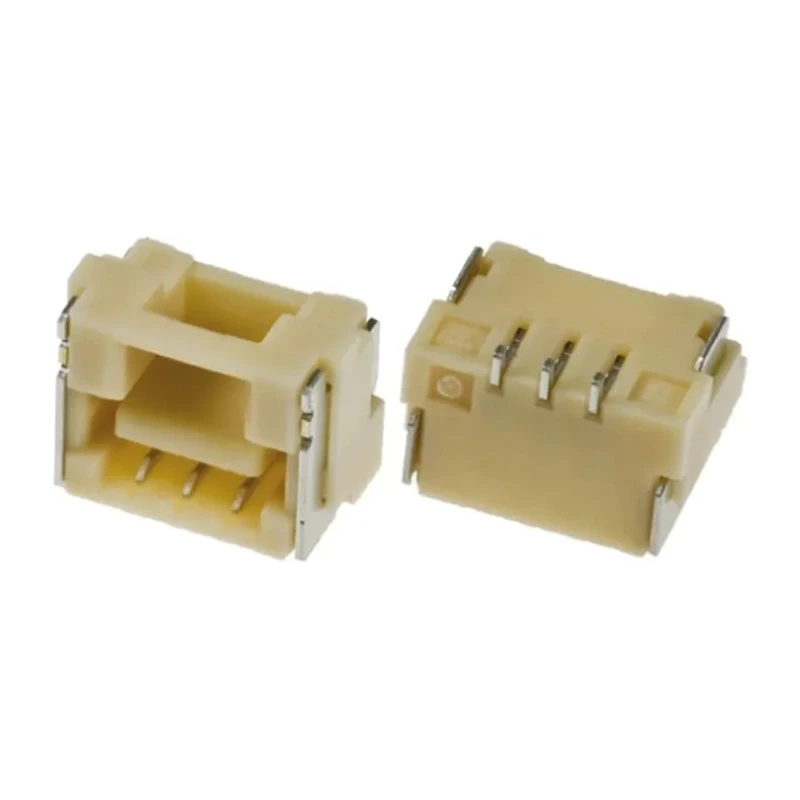

Molex CLIK-Mate Series Right Angle Surface PCB Socket, 3-Contact, 1 Row, 1.25 mm Pitch Solder 502386-0370

The Molex 502386-0370 CLIK-Mate Series Right Angle Surface PCB Socket is a high-quality electronic component designed for wire-to-board connections with a pitch of 1.25 mm. This PCB socket features 3 contacts arranged in a single row and supports a current rating of 12A at 50V, making it suitable for various low voltage electronic circuit applications.

Its right angle orientation and surface mount design facilitate compact PCB layouts and efficient space utilization, particularly advantageous in consumer electronics such as LCD TVs where higher pin density is needed.

The unique tuning-fork terminal design ensures low insertion force combined with secure mating contact, enhancing reliability during mechanical and electrical operation. The robust lock system guarantees superior mating retention and prevents disconnection under vibration or mechanical stress.

The component supports a wide temperature range from -25°C to 85°C, ensuring stable operation in various environments. Manufactured with copper contacts, it provides excellent conductivity and corrosion resistance, contributing to long-term durability.

The socket is fully compatible with SMT manufacturing processes, allowing for direct vacuum pick-and-place assembly without the need for capton tape, streamlining production. It also offers approximately 60% space savings compared to traditional 2.00 mm pitch dual-lock connectors, enabling more compact product designs.

This product complies with RoHS standards, reflecting its adherence to environmental regulations by restricting hazardous substances. Designed for robust wire-to-board connections with low profile right angle surface mount.

3-contact, 1-row configuration with 1.25 mm pitch ensuring compactness. Reliable copper contact material for superior electrical performance. Wide operating temperature range suitable for various environments. Lock design enhances mechanical retention and mating assurance.

Compatible with direct vacuum pick-and-place SMT assembly. Space-saving design ideal for high-density electronic applications. RoHS compliant for environmental safety.

This PCB socket is ideal for industrial, electronic manufacturing, consumer electronics, communication equipment, and other applications requiring compact and reliable board-to-wire connections.
