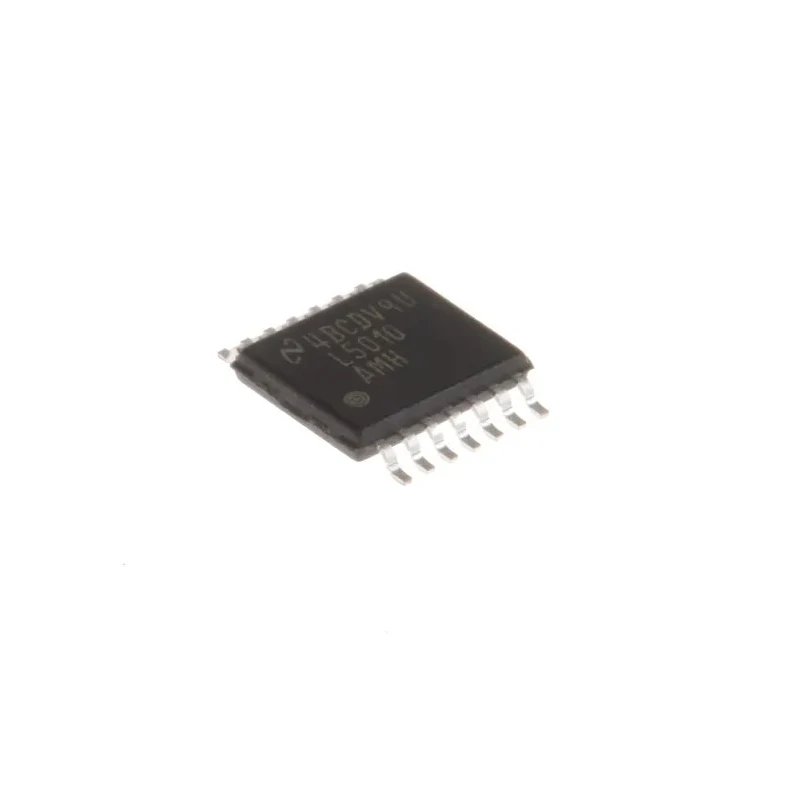

Texas Instruments 1-Channel High Voltage Buck Converter 1 A 6.6V 1000 kHz TSSOP 14-Pin LM5010AMH/NOPB

Free Delivery in India | Lowest Global Shipping Charges

Texas Instruments 1-Channel High Voltage Buck Converter 1 A 6.6V 1000 kHz TSSOP 14-Pin LM5010AMH/NOPB

Name: Texas Instruments 1-Channel High Voltage Buck Converter 1 A 6.6V 1000 kHz TSSOP 14-Pin LM5010AMH/NOPB
Brand: Texas Instruments
SKU: 100380
Price: 5.07 USD
Availability: InStock



Category Power Management ICs Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	0.9mm
Length	5mm
Model	LM5010AMH/NOPB
Width	4.4mm
Mount Type	Surface
Output type	Adjustable
Series	LM5010
Output Current	1A
Maximum Operating Temperature	125°C
Package Type	TSSOP
Minimum Operating Temperature	-40°C
Polarity	Positive
Regulator Type	High Voltage
Switching Frequency	1000kHz
Number of outputs	1
Maximum Input Voltage	75V
Output Voltage	6.6V
Quiescent Current	3.1mA
Line Regulation	0.01 %/V
Standards/Approvals	RoHS
Minimum Input Voltage	6V
Pin Count	14
Automotive Standard	AEC-Q100

Key Features

This high-frequency converter operates at 1000 kHz switching frequency for efficient voltage regulation.
The device supports an input voltage range from 6 V to 75 V for versatile applications.
It features a surface mount TSSOP 14-pin package measuring 5 mm in length, 4.4 mm in width, and 0.9 mm in height.
The converter has a low quiescent current of 3.1 mA and adjustable output voltage with positive polarity.
The product complies with RoHS standards and the Automotive AEC-Q100 standard, supporting automotive-grade applications.
It operates reliably from -40°C to 125°C, suitable for industrial environments.
The integrated switching regulator design allows for constant on-time step-down DC/DC conversion.
Ideal for use in power management of electronic and semiconductor equipment requiring compact and efficient voltage conversion.

Product Description

Texas Instruments LM5010AMH/NOPB is a highly integrated 1-channel high voltage buck converter designed for efficient step-down DC/DC voltage regulation applications. It delivers a maximum output current of 1 A with an adjustable output voltage of 6.6 V, optimized for compact power management needs.

The converter operates at a high switching frequency of 1000 kHz, allowing fast transient response and smaller external components. Its input voltage range spans from 6 V to 75 V, making it suitable for a wide range of industrial and automotive power supplies.

Housed in a compact TSSOP 14-pin surface mount package (5 mm × 4.4 mm × 0.9 mm), this device is designed for ease of PCB integration and space saving. The low quiescent current of 3.1 mA improves overall system efficiency, especially in battery-powered applications.

The LM5010AMH/NOPB meets RoHS compliance and the automotive AEC-Q100 qualification, ensuring reliability in harsh conditions and automotive environments. It supports operation from -40°C to 125°C, allowing it to withstand extreme temperatures.

The device's constant on-time control scheme delivers regulated voltage with minimal external components, supporting efficient power conversion in industrial, automotive, instrumentation, and embedded systems.

This high voltage DC/DC buck converter delivers 1 A output current. Operates at 1000 kHz switching frequency for improved transient response. Wide input voltage range of 6 V to 75 V for flexible deployment. Compact TSSOP 14-pin surface mount package facilitates PCB space saving.

Low quiescent current of 3.1 mA enhances efficiency. Meets automotive AEC-Q100 and RoHS standards for quality and compliance. Supports industrial and automotive applications with rugged temperature range. Adjustable output voltage with positive polarity for varied power requirements.

This product is critical for power management in electronics manufacturing, industrial automation, automotive electronics, and semiconductor devices. Explore more Power Management ICs and components from Texas Instruments on EnvMart for efficient system design and reliable operation.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The LM5010AMH/NOPB operates with an input voltage range of 6 V to 75 V, making it suitable for various applications.

This buck converter can deliver a maximum output current of 1 A.

It operates at a high switching frequency of 1000 kHz, which improves transient response and allows for smaller external components.

The TSSOP 14-pin package measures 5 mm in length, 4.4 mm in width, and 0.9 mm in height.

The LM5010AMH/NOPB features a low quiescent current of 3.1 mA, enhancing overall system efficiency.

It operates reliably within a temperature range of -40°C to 125°C, suitable for industrial environments.

Yes, the output voltage is adjustable with positive polarity, allowing for varied power requirements.

The LM5010AMH/NOPB complies with RoHS standards and the Automotive AEC-Q100 standard, ensuring reliability in automotive applications.

This model is classified as a high voltage buck converter, designed for efficient step-down DC/DC voltage regulation.

It features a single output, making it a 1-channel device.

The line regulation for this model is specified at 0.01 %/V, indicating its ability to maintain output voltage stability with varying input voltage.

This buck converter is suitable for power management in electronics manufacturing, industrial automation, automotive electronics, and semiconductor devices.
