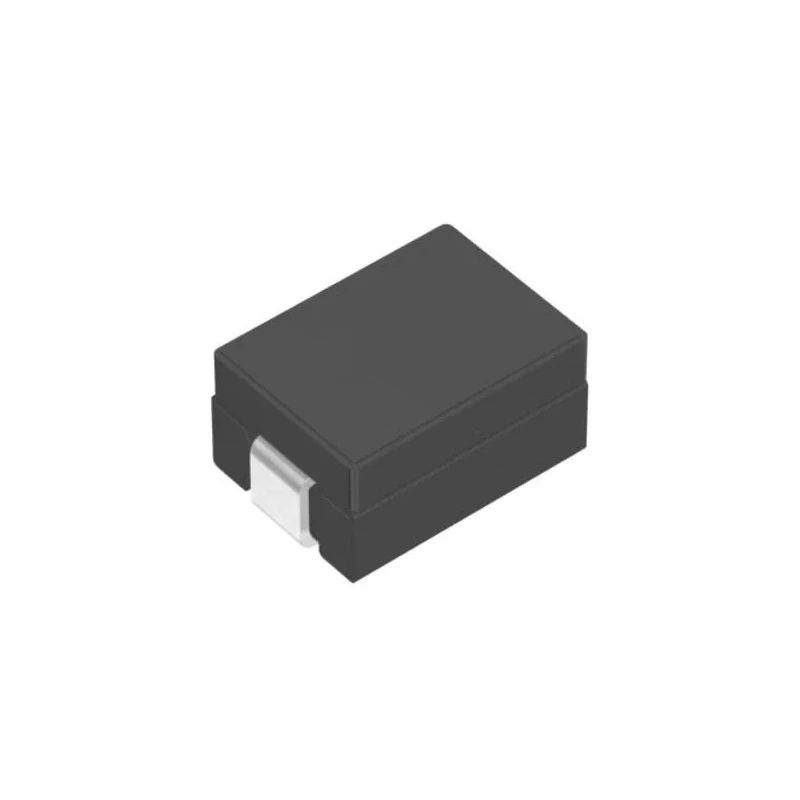

TDK Wirewound Surface Mount Inductor with Ferrite Core, 200nH ±20/±30 % Inductance, 37A DC Current, Package VLB10050HT-R20M
Specifications
| Country of Origin | China |
|---|---|
| Brand | TDK |
| Height | 4.8mm |
| Operating Temperature Range | - 40 to +125°C (including self-temperature rise) |
| Length | 9.8mm |
| Model | VLB10050HT-R20M |
| Depth | 6.7mm |
| Packaging | 500 pieces per reel |
| Series | VLB |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 200nH |
| Standards/Approvals | Halogen Free, Lead Free, REACH SVHC-Free, RoHS |
| Package/Case | 10050 |
| Maximum DC Current | 37A |
| Maximum DC Resistance | 371μΩ |
| Inductance Tolerance | ±20/±30 % |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
| High operating frequency | Up to 2MHz |
| High output processing capacity | Minimal copper loss |
Key Features
- The inductor has a low-profile package size 10050 with dimensions of 9.8mm length, 4.8mm height, and 6.7mm depth.
- It offers shielding and minimal copper loss for high output processing capacity.
- Inductance tolerance is ±20/±30 %, supporting high saturation current and low DC resistance of 371μΩ.
- Operates reliably in temperature range from -40°C to 125°C including self-temperature rise.
- Suitable for high-frequency applications up to 2MHz with wirewound construction.
- Package includes 500 pieces per reel, appropriate for volume assembly.
- Designed for applications in personal computers, servers, amusement equipment, and AV equipment.
- Complies with halogen-free, lead-free, REACH SVHC-free, and RoHS environmental standards.
Product Description
The TDK VLB10050HT-R20M is a high-current wirewound surface mount inductor featuring a ferrite core with an inductance of 200nH and ±20/±30 % tolerance. It is designed to handle a maximum DC current of 37A with a minimal copper loss to support high output processing capacity.
This component comes in a low-profile 10050 package with precise dimensions of 9.8mm length, 4.8mm height, and 6.7mm depth, optimized for space-constrained applications. It features shielding to reduce electromagnetic interference, enhancing performance in sensitive electronic assemblies.
The inductor exhibits a low DC resistance of 371μΩ, enhancing power efficiency. It is engineered to operate at frequencies up to 2MHz and withstands a wide operating temperature range from -40°C to 125°C, including self-generated temperature rises, making it highly reliable in demanding environments.
Each reel contains 500 pieces, ideal for mass production in industrial and commercial electronics manufacturing. The wirewound construction provides excellent saturation current handling and stable inductance across its tolerance range.
Its primary applications include use in personal computers, servers (such as voltage regulator modules), amusement equipment, and audiovisual products. The product complies with international environmental standards including halogen free, lead free, REACH SVHC-free, and RoHS directives.
The inductor has a low-profile 10050 package size suitable for compact PCB layouts. Features shielding and minimal copper loss for optimized electrical performance. Supports a maximum DC current of 37A and low DC resistance of 371μΩ.
Wide operating temperature range of -40°C to 125°C ensuring stability in harsh conditions. High operating frequency capability up to 2MHz. Wirewound construction ensures durability and consistent performance. Includes 500 pieces per reel for consistent supply in production lines.
Meets environmental compliance standards: halogen free, lead free, REACH SVHC-free, and RoHS.
This TDK Surface Mount Inductor is a reliable choice for industrial, electronic manufacturing, and commercial applications requiring efficient high-current inductors. Explore more inductors and other components in our Electronics Components category at EnvMart for your projects and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 200nH with a tolerance of ±20/±30 %.
It can handle a maximum DC current of 37A.
The dimensions of the 10050 package are 9.8mm in length, 4.8mm in height, and 6.7mm in depth.
It operates reliably within a temperature range of -40°C to 125°C, including self-temperature rise.
The DC resistance of this inductor is 371μΩ.
This inductor can operate at frequencies up to 2MHz.
It features a wirewound construction, which provides excellent saturation current handling.
Each reel contains 500 pieces of this inductor.
It complies with halogen-free, lead-free, REACH SVHC-free, and RoHS environmental standards.
It is suitable for applications in personal computers, servers, amusement equipment, and audiovisual products.
The core material of this inductor is ferrite.
The shielding reduces electromagnetic interference, enhancing performance in sensitive electronic assemblies.
