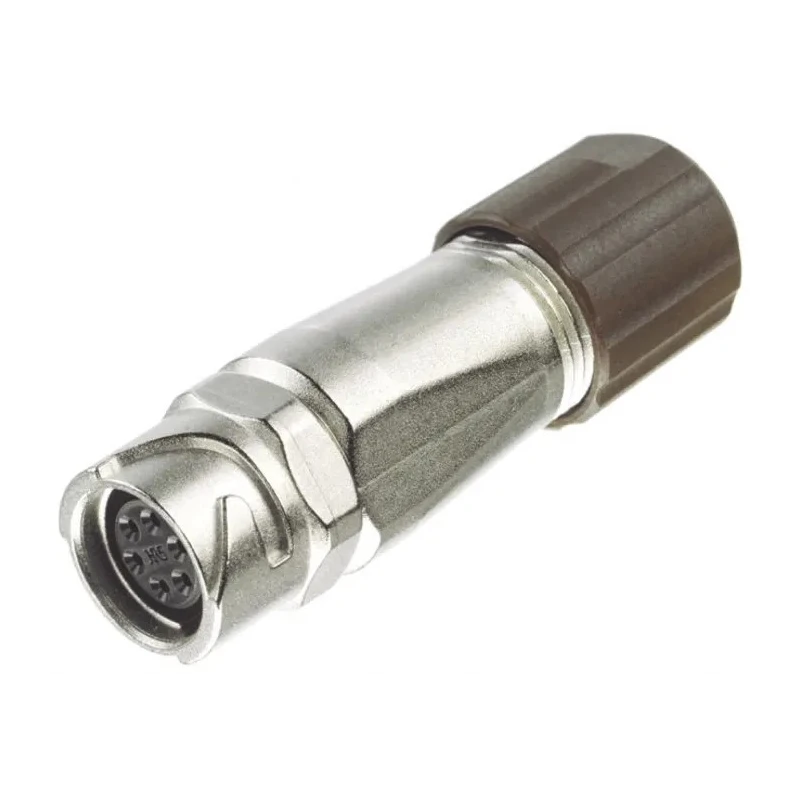

Hirose Circular Connector Miniature Cable Mount Socket Female 3 Contacts IP67 IP68 125V 5A LF07WBJ-3S
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125.0V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 5A |
| Model | LF07WBJ-3S |
| IP Rating | IP67, IP68 |
| Mount Type | Cable |
| Housing Material | Zinc Alloy |
| Contact Material | Bronze |
| Series | LF |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Pole Format | 3 |
| Contact Plating | Gold |
| Number of Contacts | 3 |
| Contact Gender | Female |
| Shell Size | 7 |
| Mating Type | Bayonet |
| Connector Size | Miniature |
| Plug/Socket | Socket |
Key Features
- This circular connector features a bayonet locking mechanism for secure mating.
- The connector is constructed with a zinc alloy housing and gold plated bronze contacts.
- Designed for miniature cable mounting with a shell size 7 and solder termination type.
- Operates reliably in temperatures from -25°C to 85°C.
- The straight orientation and compact dimensions make it suitable for industrial and electronic applications.
- Its IP67 and IP68 rating ensure protection against dust and water immersion.
- The connector is compatible with the LF series of Hirose miniature connectors.
Product Description
Hirose LF07WBJ-3S is a miniature circular connector designed for cable mounting applications featuring a socket with female contacts. Rated for 5 amperes carrying current and 125 volts operating voltage, this connector provides reliable performance in industrial, electronic, and power connection use cases.
Its housing is made from durable zinc alloy with gold-plated bronze contacts, ensuring excellent conductivity and resistance to corrosion. The connector supports three contact points with a pole format of 3, facilitating small-scale signal or power transmission.
Equipped with bayonet mating type, the LF07WBJ-3S ensures secure and quick engagement, suitable for environments requiring frequent connection cycles. Its IP67 and IP68 ingress protection ratings validate dust-tight sealing and resistance to temporary and continuous water immersion, making it ideal for harsh environmental conditions.
The connector's dimensional footprint includes an 11.5 mm diameter and 36.3 mm length, with shell size 7 and straight orientation optimizing PCB and cable assembly integration. Operating temperature range from -25°C up to 85°C further extends its applicability to diverse industrial and electronic settings.
Termination is by solder, supporting secure wiring and durability. This connector aligns with the Hirose LF series specifications, enabling system compatibility and interchangeability within the product line.
This circular connector features a bayonet locking mechanism for secure mating. The connector is constructed with a zinc alloy housing and gold plated bronze contacts. Designed for miniature cable mounting with a shell size 7 and solder termination type.
Operates reliably in temperatures from -25°C to 85°C. The straight orientation and compact dimensions make it suitable for industrial and electronic applications. Its IP67 and IP68 rating ensure protection against dust and water immersion.
The connector is compatible with the LF series of Hirose miniature connectors.
This product serves critical roles in industrial tools and electronic component assemblies, providing dependable connectivity in manufacturing, automation, instrumentation, and power distribution environments. Explore more Hirose Circular Connectors at EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Hirose LF07WBJ-3S has a current rating of 5 amperes and an operating voltage of 125 volts.
This connector has IP67 and IP68 ratings, ensuring it is dust-tight and resistant to temporary and continuous water immersion.
The housing is made from zinc alloy, and it features gold-plated bronze contacts for excellent conductivity and corrosion resistance.
It operates reliably within a temperature range of -25°C to 85°C.
The LF07WBJ-3S uses a solder termination type, which supports secure wiring.
This connector has a shell size of 7 and features a straight orientation.
It has three contacts configured in a female contact format.
The connector employs a bayonet mating type, ensuring secure and quick engagement.
Yes, it is compatible with the LF series of Hirose miniature connectors, allowing for system interchangeability.
The connector has a diameter of 11.5 mm and a length of 36.3 mm.
The country of origin for this connector is India.
It is suitable for industrial, electronic, and power connection applications, providing dependable connectivity in various environments.
