RS PRO Brushless Micro Water Pump 28V, 6 V, 8 bar Pressure, 550ml/min Flow Rate 125-3560

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Brushless Micro Water Pump 28V, 6 V, 8 bar Pressure, 550ml/min Flow Rate 125-3560

Name: RS PRO Brushless Micro Water Pump 28V, 6 V, 8 bar Pressure, 550ml/min Flow Rate 125-3560
Brand: RS PRO
SKU: 142798
Price: 563.67 USD
Availability: InStock



Category Water Pumps Brand RS PRO Condition New

Specifications

Country of Origin	United Kingdom
Brand	RS PRO
Body Material	Anodised Aluminium
Maximum Operating Pressure	8 bar
Inlet Connection Type	Push-Fit
Model	125-3560
IP Rating	IP45
Maximum Fluid Temperature	80°C
Input power	28W
Supply Voltage	28, 6V
Maximum Flow Rate	550ml/min
Inlet Connection Size	6 mm
Standards/Approvals	CMRT, SVCH, RoHS Directive 2011/65/EU, 3TG and REACH compliant
Inlet Thread Standard	BSP
RS PRO 6 → 24 V 8 bar Water Pump, 500ml/minBrand	RS PRO
RS PRO 12 V 6 bar Direct Coupling Centrifugal Pump, 460ml/minBrand	RS PRO

Key Features

Designed with a sensorless brushless motor for reliable and efficient operation.
Capable of pumping a wide range of liquids including high and low viscosity fluids.
Features a self-priming design enabling ease of use in various applications.
Body constructed from anodised aluminium providing chemical resistance and durability.
Equipped with push-fit 6 mm inlet and outlet connections with BSP threading for secure installation.
Operates at temperatures up to 80°C with an IP45 rating for protection against dust and water splashes.
Includes the EQI-MG1 process pump controller offering precise speed and flow control.
Suitable for medical, fuel cell, cooling system, and precision lubrication applications.

Product Description

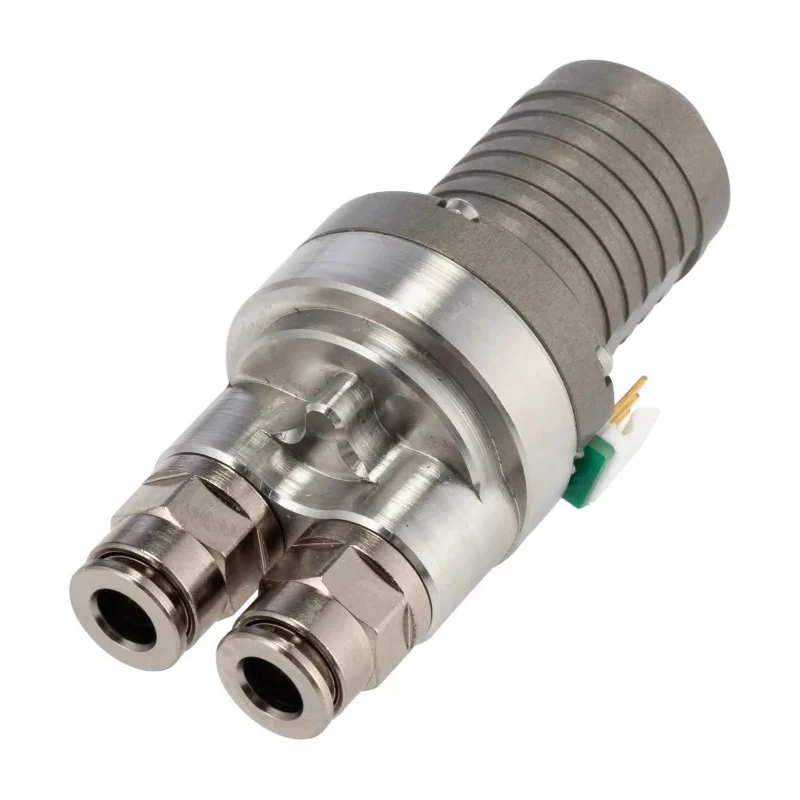

RS PRO 125-3560 is a high-performance brushless micro water pump designed to provide consistent and almost pulseless flow at variable pressures. Rated for a maximum flow of 550ml/min and an operating pressure of 8 bar, this pump supports supply voltages of 28 V and 6 V, making it suitable for diverse industrial and laboratory fluid handling tasks.

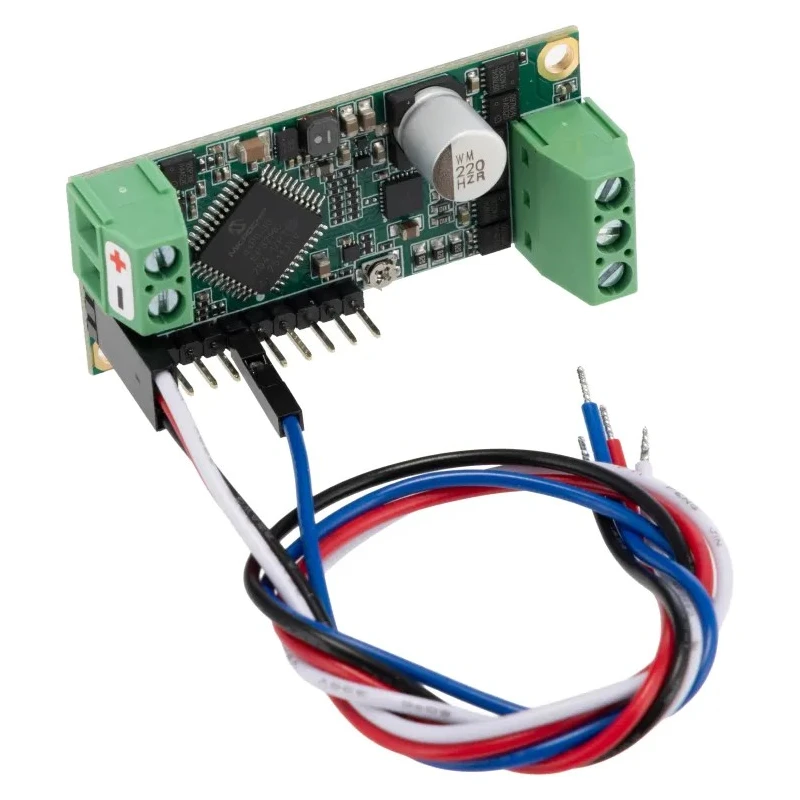

The pump incorporates a sensorless brushless motor controlled by the EQI-MG1 driver, which allows for fine speed and flow adjustments via onboard potentiometer or an external 0-4V analog signal. Its design includes reversible flow direction for flexible operation and self-priming capabilities that simplify installation and maintenance.

Constructed with an anodised aluminium body, this pump resists most chemicals and solvents, supporting fluids with varied viscosities. The push-fit 6 mm BSP inlet and outlet connections ensure reliable and leak-free pipe fittings.

Rated for fluid temperatures up to 80°C and protected with an IP45 ingress rating, the pump is engineered for challenging environments and demanding applications such as medical devices, fuel cells, high-pressure fuel pumps, cooling systems, and precision lubrication mechanisms.

Sensorless brushless motor provides efficient and maintenance-free operation. Self-priming technology allows operation without manual priming. Reversible flow direction enhances versatility in fluid management. High chemical resistance suitable for diverse fluid types.

Compact size enables installation in limited spaces. Integrated process pump controller for precise speed and flow control. Compliance with RoHS, 3TG, and REACH ensures environmental and safety standards. Operates across a broad voltage range (6-28V) to accommodate various power sources.

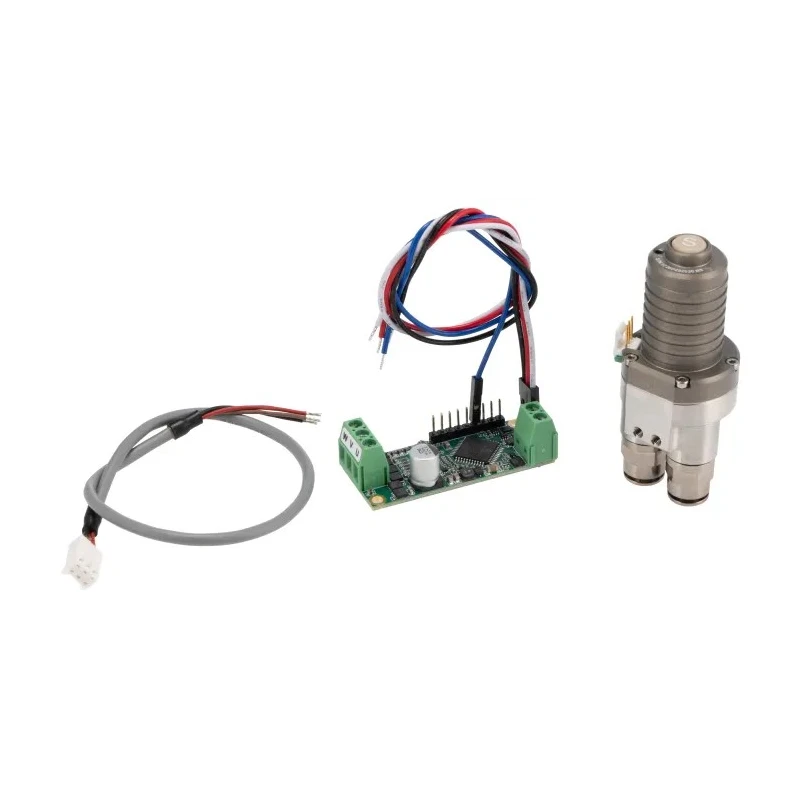

This product is suitable for industrial, laboratory, medical, HVAC, manufacturing, and commercial water pumping applications requiring precision and durability. Package includes the micro pump and EQi driver controller. Country of Origin: United Kingdom.
