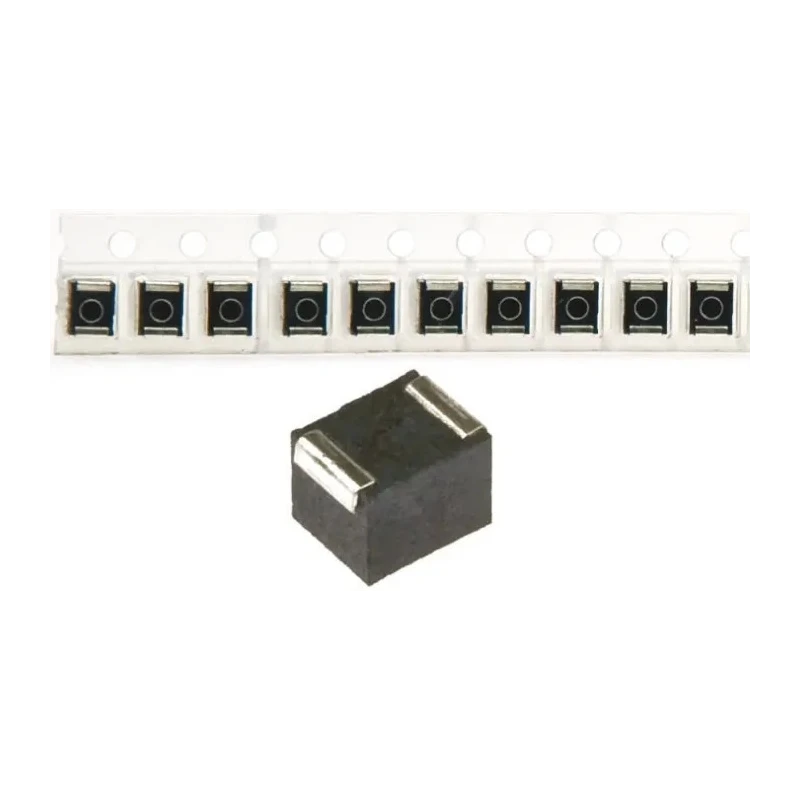

TDK 1210 Shielded Wirewound Surface Mount Inductor with Ferrite Core 6.8 μH ±5% 180 mA Idc Q:30 NLV32T-6R8J-PF
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | TDK |
| Height | 2.2mm |
| Length | 3.2mm |
| Model | NLV32T-6R8J-PF |
| Depth | 2.5mm |
| Series | NLV-PF |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 6.8μH |
| Standards/Approvals | RoHS |
| Package/Case | 1210 |
| Maximum DC Current | 180mA |
| Pin Count | 2 |
| Maximum DC Resistance | 1.8Ω |
| Inductance Tolerance | ±5 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 40MHz |
| Minimum Quality Factor | 30 |
| Inductor Construction | Wirewound |
| Applications include | TVs, VCRs, digital cameras, xDSL, car audio, ECU systems, HDDs, etc |
Key Features
- Features a shielded ferrite core construction ensuring stable performance.
- Complies with RoHS standards for environmental safety.
- Compact 1210 package size with dimensions 3.2mm length, 2.2mm height, and 2.5mm depth.
- Operates reliably between -40°C and 105°C temperatures.
- High quality factor (Q) of 30 for excellent frequency response.
- Maximum DC resistance of 1.8 Ω optimizing power efficiency.
- Designed for surface mount termination style with 2 pins.
- Suitable for a wide range of signal line applications in consumer electronics.
Product Description
TDK NLV32T-6R8J-PF is a 1210 shielded wirewound surface mount inductor featuring a ferrite core, providing 6.8 μH inductance with ±5% tolerance and a maximum DC current rating of 180 mA. This inductor excels in applications requiring high Q (minimum 30) and stable frequency response.
The device is enclosed in a highly heat-resistant thermoplastic resin package, molded for durability and performance. Its surface mount design with 2 pins facilitates easy PCB assembly and low profile installation. The inductor complies with RoHS environmental directives, ensuring hazardous substances are restricted.

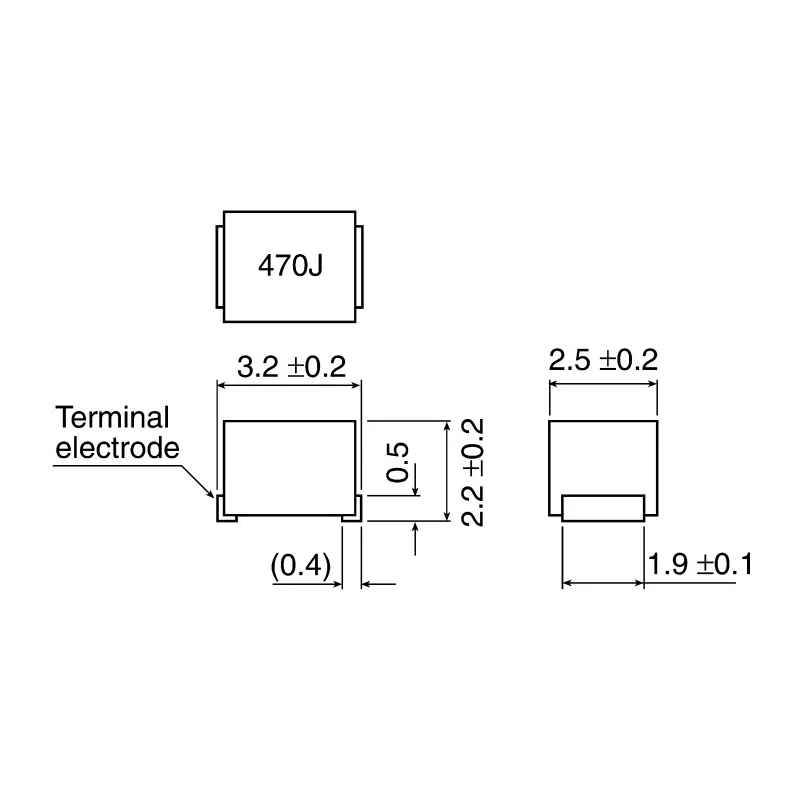

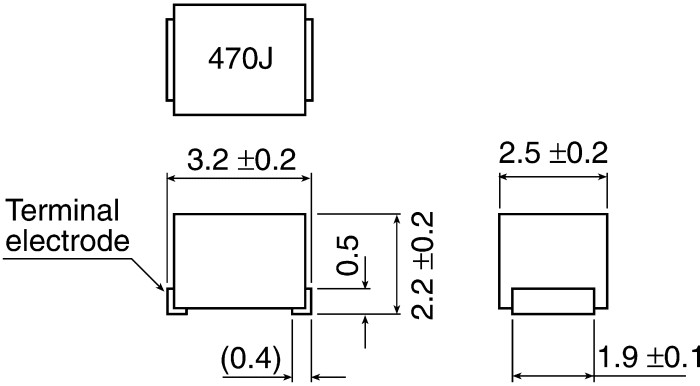

Key physical dimensions include a length of 3.2 mm, height of 2.2 mm, and a depth of 2.5 mm, optimized for compact electronics where board space is limited.
Operating temperature range extends from -40°C to 105°C, suitable for automotive and industrial environments. The maximum DC resistance of 1.8 Ω helps maintain power efficiency with minimal losses.
Applications include a broad spectrum of consumer and automotive electronics such as televisions, VCRs, digital cameras, xDSL broadband systems, car audio units, engine control units (ECU), and hard disk drives (HDDs).
Shielded ferrite core for EMI reduction and stable inductance. Compact 1210 SMD package for efficient PCB layout. High Q factor supporting sharp frequency response. Wide operating temperature range suitable for harsh environments.
RoHS compliant material construction. Low DC resistance for reduced power loss. Reliable surface mount termination style. Versatile usage across consumer and automotive electronics.
This high-quality TDK inductor is ideal for electronics manufacturers and engineers seeking dependable surface mount inductors with precise electrical characteristics. Explore similar Surface Mount Inductors in the Electronics Components category on EnvMart’s platform.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 6.8 μH with a tolerance of ±5%.
The maximum DC current rating for this inductor is 180 mA.
The dimensions of the 1210 package are 3.2 mm in length, 2.2 mm in height, and 2.5 mm in depth.
It operates reliably within a temperature range of -40°C to 105°C.
The maximum DC resistance is 1.8 Ω, optimizing power efficiency.
This model features a ferrite core construction, which helps in EMI reduction and stable performance.
The inductor has a minimum quality factor of 30, supporting excellent frequency response.
It is designed with a surface mount termination style and has 2 pins for easy PCB assembly.
This inductor is suitable for a wide range of applications including TVs, VCRs, digital cameras, xDSL systems, car audio, ECU systems, and HDDs.
It complies with RoHS standards, ensuring that hazardous substances are restricted.
The maximum self-resonant frequency is 40 MHz.
The country of origin for this inductor is Japan.
