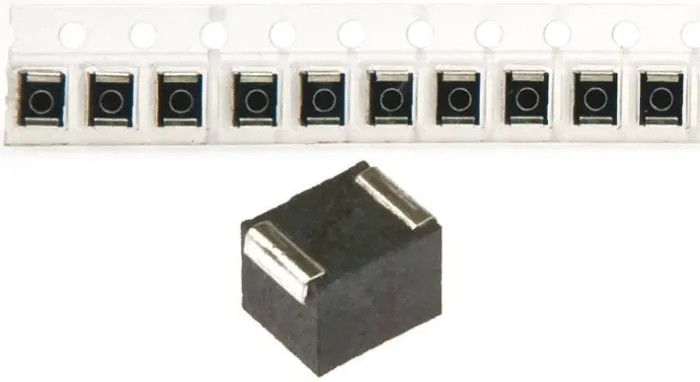

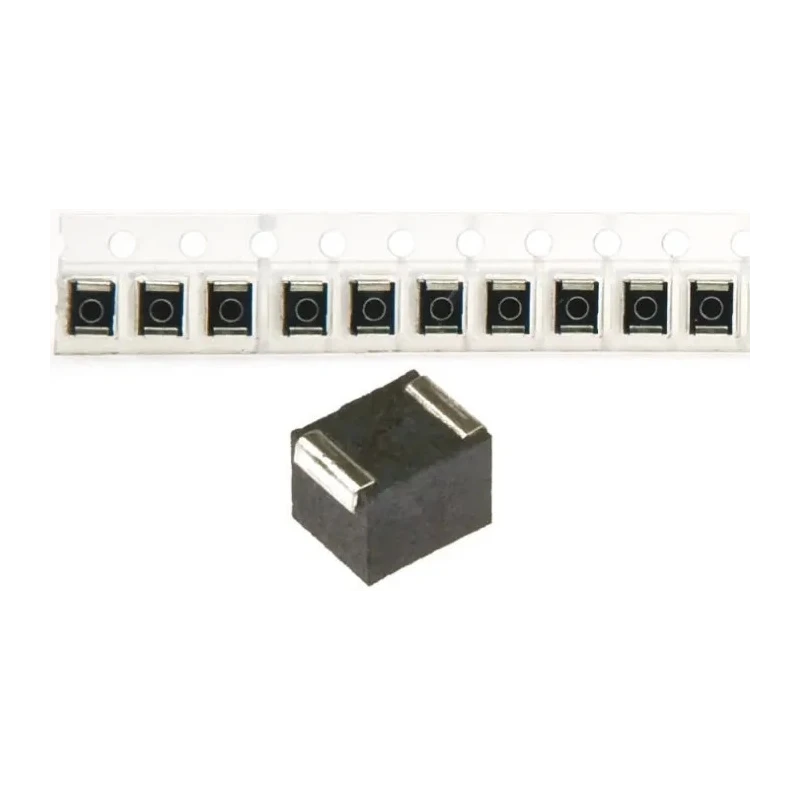

TDK 1210 Shielded Wirewound Surface Mount Inductor with Ferrite Core 100 μH ±5 % 40 mA Idc Q:20 NLV32T-101J-PF
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | TDK |
| Height | 2.2mm |
| Length | 3.2mm |
| Model | NLV32T-101J-PF |
| Depth | 2.5mm |
| Series | NLV-PF |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 100μH |
| Standards/Approvals | RoHS |
| Package/Case | 1210 |
| Maximum DC Current | 40mA |
| Pin Count | 2 |
| Maximum DC Resistance | 10Ω |
| Inductance Tolerance | ±5 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 10MHz |
| Minimum Quality Factor | 20 |
| Inductor Construction | Wirewound |
| Applications include | TVs, VCRs, digital cameras, xDSL, car audio, ECU systems, HDDs, etc |
Key Features

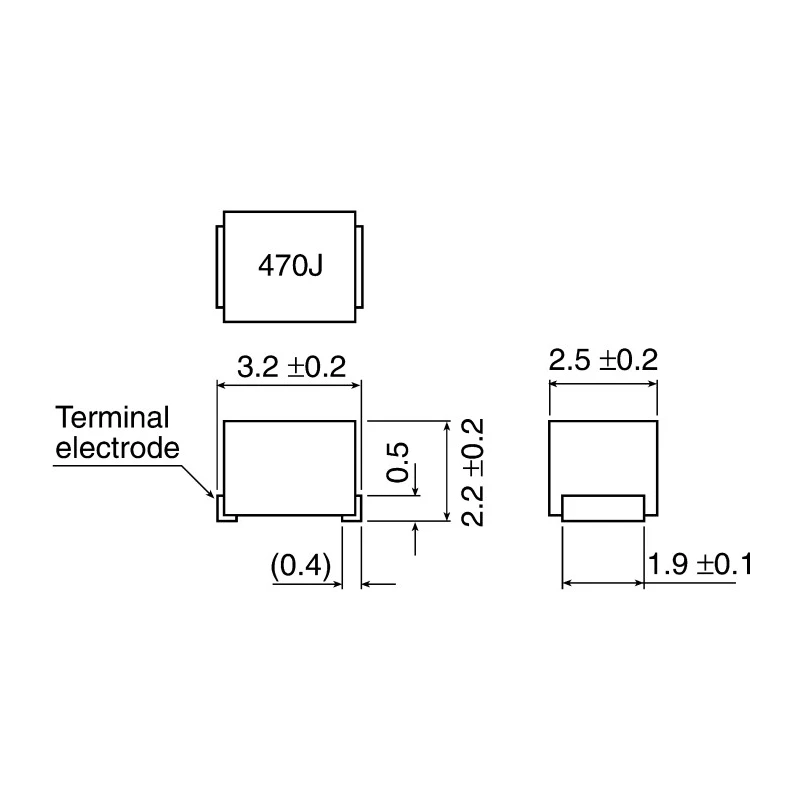

- Compact 1210 package with length 3.2 mm, height 2.2 mm, and depth 2.5 mm dimensions.
- Constructed with a ferrite core and wirewound inductor design for stability and performance.
- Features a thermoplastic resin exterior providing high heat resistance and moulding for durability.
- Operating temperature range from -40°C to 105°C to suit various environments.
- Shielded design reduces electromagnetic interference in signal line applications.
- Maximum DC resistance of 10 Ω ensuring low power loss in circuits.
- Maximum self-resonant frequency of 10 MHz suitable for high-frequency applications.
- Compliant with RoHS standards for environmental safety.
Product Description
TDK NLV32T-101J-PF wirewound surface mount inductor in a 1210 shielded package features a ferrite core and offers an inductance of 100 μH with ±5 % tolerance. Designed with a thermoplastic resin exterior, it provides high heat resistance and durability suitable for demanding industrial and commercial electronic applications.
This surface mount inductor supports a maximum DC current of 40 mA and exhibits a low maximum DC resistance of 10 Ω, ensuring efficient electrical performance. It is constructed with a high quality factor of 20 and a maximum self-resonant frequency of 10 MHz, making it well-suited for signal line filtering and noise suppression in electronic circuits.
Operating within a temperature range of -40°C to 105°C, the inductor is shielded to reduce electromagnetic interference, enhancing circuit reliability in environments such as consumer electronics, automotive ECU systems, and data storage devices.
Applications include use in televisions, video cassette recorders (VCRs), digital cameras, xDSL modems, car audio systems, engine control units, and hard disk drives, demonstrating versatility across diverse fields.
Manufactured in Japan, this product complies with RoHS environmental directives, ensuring safe usage in environmentally conscious manufacturing processes. Compact 1210 surface mount package with dimensions optimized for PCB integration.
Ferrite core and wirewound construction for stable inductive performance. Thermoplastic resin moulded exterior for high thermal durability. Wide operating temperature range and high heat resistance. Shielding to minimize electromagnetic interference.
Compliant with RoHS standards. Ideal for industrial, automotive, consumer electronics, and communications applications. Explore more high-quality Surface Mount Inductors and related electronics components on EnvMart for your manufacturing and engineering needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 100 μH with a tolerance of ±5%.
The maximum DC current supported by this inductor is 40 mA.
It has dimensions of 3.2 mm in length, 2.5 mm in depth, and 2.2 mm in height.
The maximum self-resonant frequency is 10 MHz, making it suitable for high-frequency applications.
The operating temperature range is from -40°C to 105°C.
The maximum DC resistance is 10 Ω, ensuring low power loss in circuits.
It is constructed with a ferrite core, which contributes to its stability and performance.
The minimum quality factor is 20, indicating good performance in filtering applications.
It is suitable for applications including TVs, VCRs, digital cameras, xDSL modems, car audio systems, ECU systems, and hard disk drives.
This inductor features a wirewound construction, enhancing its inductive performance.
Yes, it is compliant with RoHS standards for environmental safety.
The termination style for this model is surface mount, designed for easy PCB integration.
