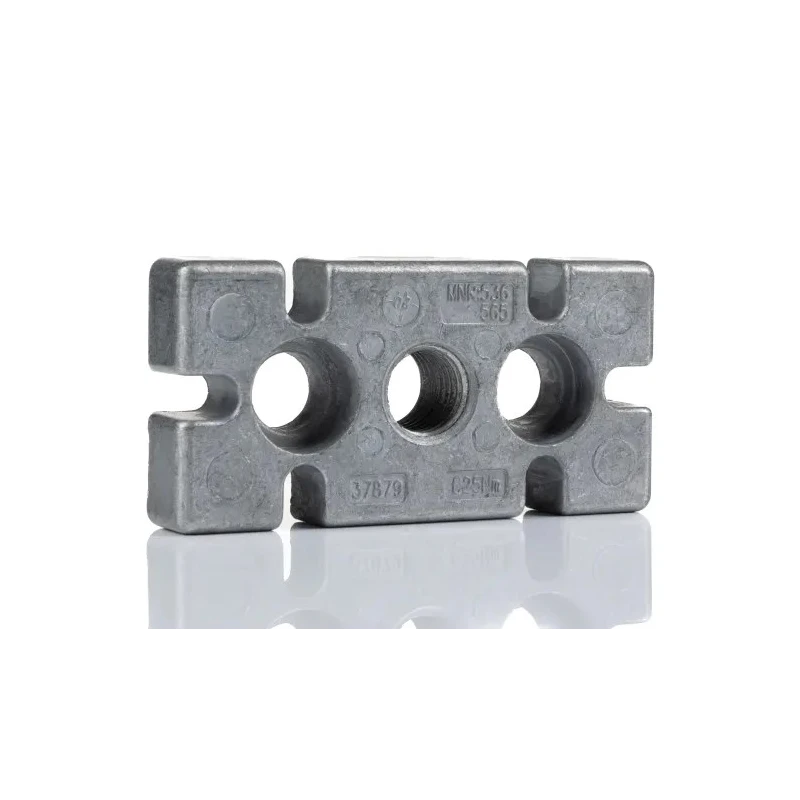

Bosch Rexroth M16 Levelling Foot Plate, Die-Cast Aluminium, Connecting Component, Strut Profile 45 mm, Groove 3842536564

Bosch Rexroth 3842536564 M16 levelling foot plate provides a robust solution for structural systems requiring secure, adjustable support. This connecting component features four M16 threads, enabling the fastening of levelling feet to strut profiles, particularly where central holes are absent. It is ideal for applications in machine building, mining, and construction, where reliable footing on uneven surfaces is essential.

Manufactured from high-quality die-cast aluminium, the plate offers excellent resistance to corrosion and impact, ensuring long-term use in demanding environments. Its compatibility with 45 mm strut profiles and groove sizes from 8 to 10 mm² allows for integration with a wide array of structural elements, providing flexibility across various industrial installations.

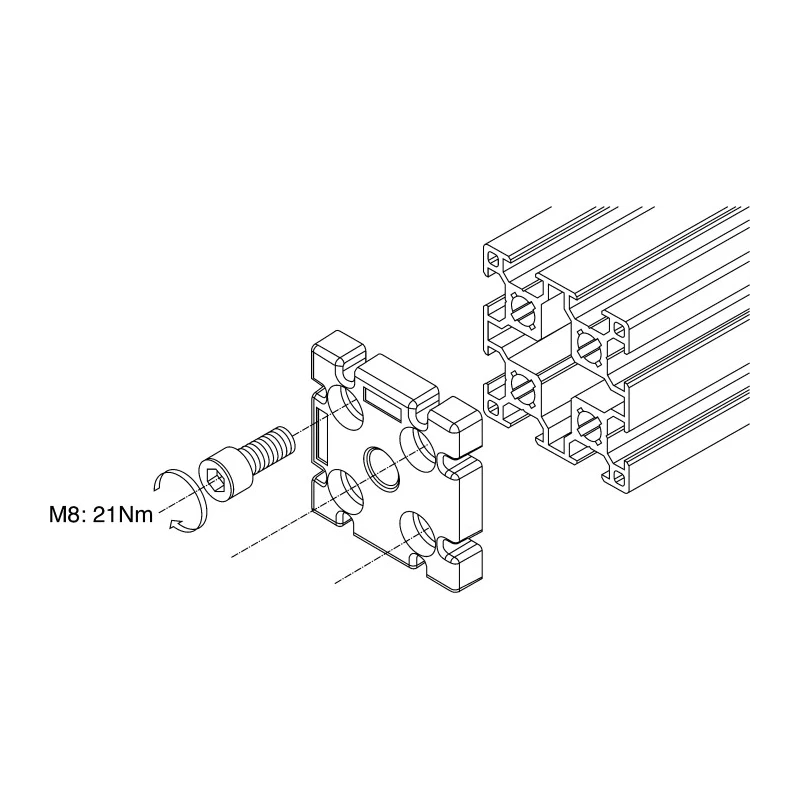

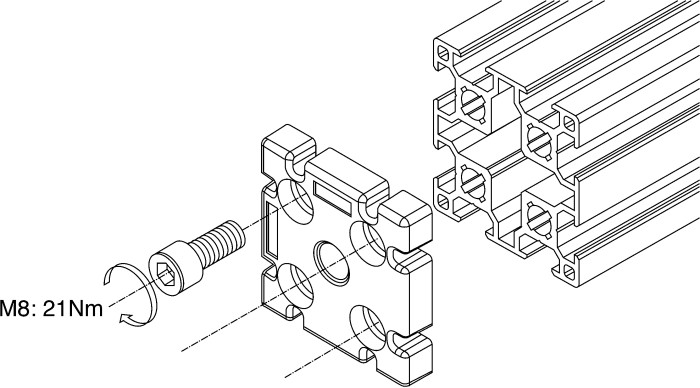

The levelling foot plate stands out for its impressive retention force, up to 20,000N, making it suitable for heavy-duty applications. It is also supplied with installation fittings and incorporates ESD protection to maintain safe operation around sensitive equipment. Installation is simple and quick, requiring the plate to be screwed onto the end of the strut, making it a practical choice for industrial engineers and plant maintenance teams.

This solution is designed for environments such as machine shops, industrial manufacturing floors, mining sites, and construction areas where vibration reduction, precise levelling, and robust connection are needed. Its compliance with DIN 7984 and RoHS exemption ensures conformity with recognised technical standards.

Whether you are assembling a new structural profile, upgrading machine mountings, or maintaining plant infrastructure, the Bosch Rexroth M16 levelling foot plate provides the necessary strength, versatility, and reliability for demanding industrial applications.

Four M16 threads enable secure installation of levelling feet for uneven surfaces. Constructed from corrosion-resistant die-cast aluminium for durability. Compatible with 45 mm strut profiles and groove sizes 8 to 10 mm² for versatile integration.

Retention force up to 20,000N supports heavy-duty machinery and structural applications. Installation is straightforward by screwing the plate onto the end of the strut. Provides ESD protection for safe use around sensitive electronic equipment.

Supplied with fittings for complete installation and secure connection. Explore more industrial connecting solutions in the Bosch Rexroth and Connecting Components categories on EnvMart.
