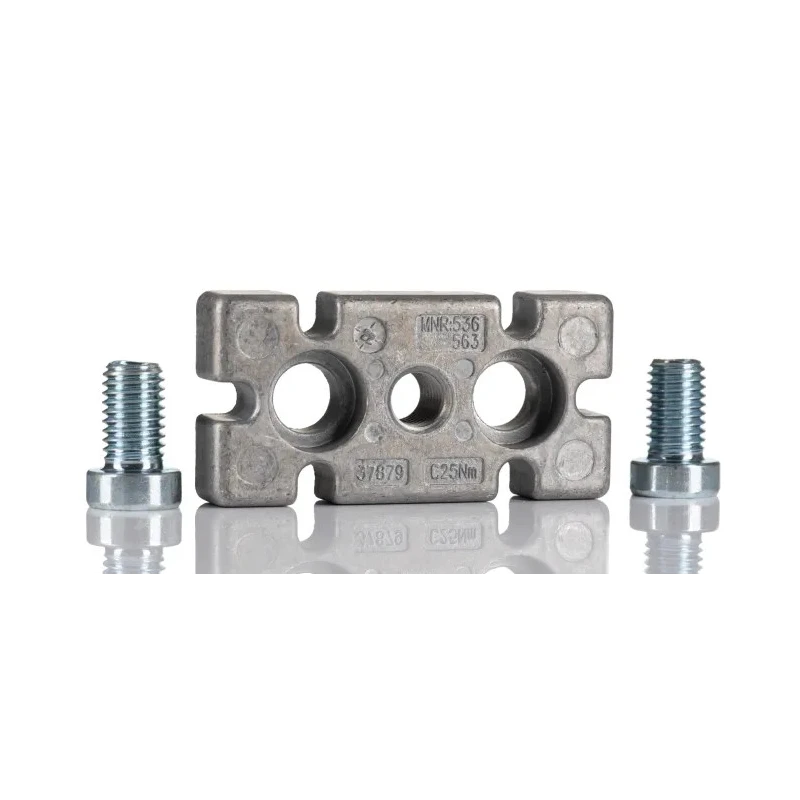

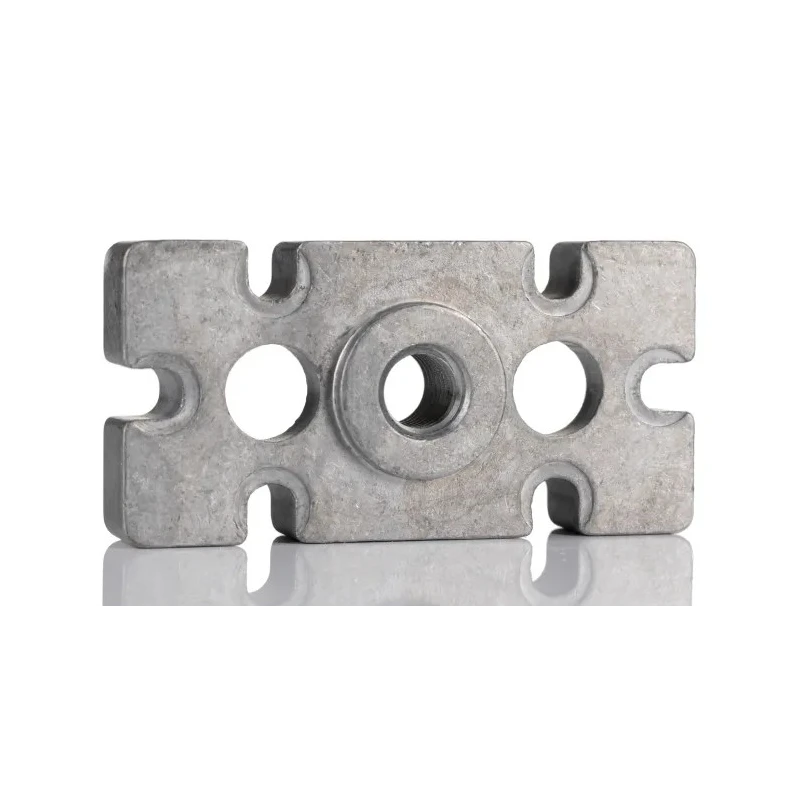

Bosch Rexroth M12 Levelling Foot Plate, Connecting Component, Die Cast Aluminium, Strut Profile 40 x 80 mm 3842536562

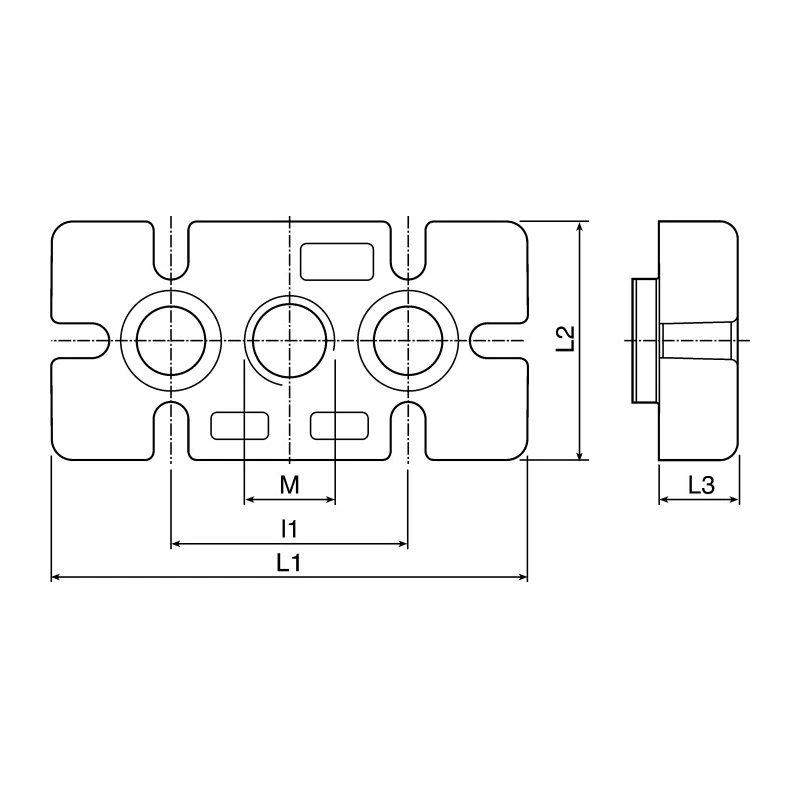

Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Bosch Rexroth |
| Material | Die Cast Aluminium |
| Length | 20mm |
| Connector Type | Levelling Foot Plate |
| Thread Size | M12 |
| Standards/Approvals | RoHS Status:Exempt, DIN 7984 |
| Structural Element Type | Strut Profile |
| Product System | MGE |
| Compatible Groove Size | 8 to 10 mm² |
| Compatible Strut Profile | 40 x 80 mm |
| Standards/ApprovalsRoHS Status | Exempt, DIN 7984 |
| RoHS Status | Exempt, DIN 7984 |
Key Features
- Robust M12 levelling foot plate connects securely to aluminium strut profiles for structural stability.
- Compatible with groove sizes from 8 to 10 mm² and designed for 40 x 80 mm profiles.
- Die cast aluminium material provides impact resistance and corrosion protection.
- Includes two fasteners for easy and reliable installation.
- Supports adjustment and mounting of hinged feet for precise levelling of assemblies.
- 20 mm plate length facilitates versatile mounting options in industrial setups.
- Lightweight at only 144 grams, making it suitable for movable structures.
- Ideal for gas plants, storage units, workshops, assembly lines, and processing facilities.
Product Description
Bosch Rexroth 3842536562 is a M12 levelling foot plate connecting component engineered for strut profiles of 40 x 80 mm and groove sizes 8 to 10 mm². Designed as part of the MGE modular system, this plate enables secure attachment and fine levelling of structural assemblies in demanding environments.
The tough die cast aluminium construction delivers high impact resistance and durability, ensuring long-term performance and stability in industrial installations. Its corrosion protection allows for use in diverse facility conditions, including gas plants, storage units, workshops, and manufacturing lines.

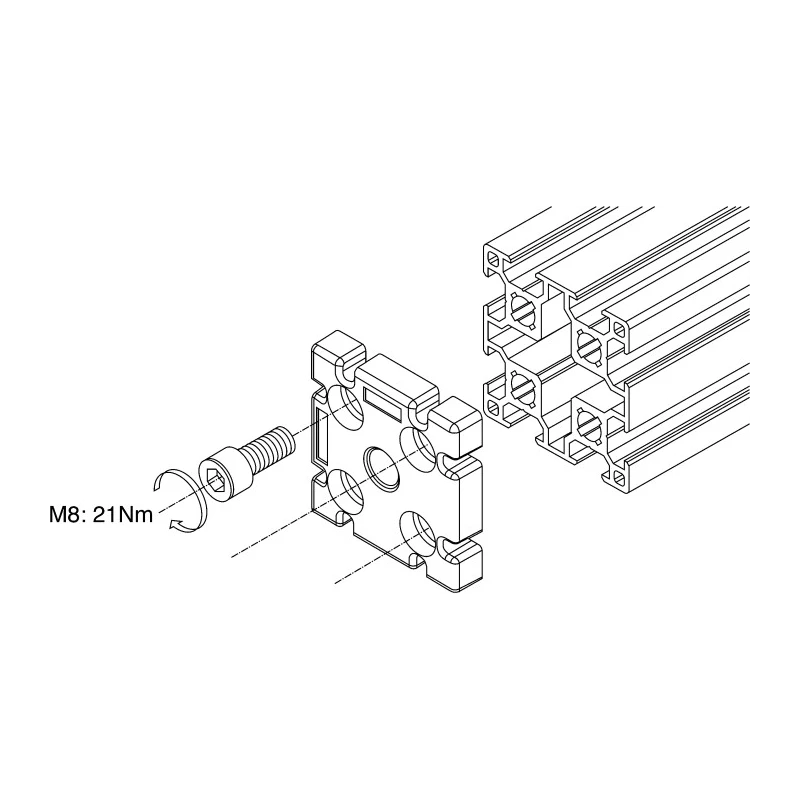

The connecting plate is purpose-built to connect hinged feet to coreless struts, assisting in precision adjustment to maintain frame alignment. It also functions as an end or T-connector, enhancing the rigidity and strength of modular structures.
Measuring 20 mm in length and weighing just 144 grams, the levelling plate simplifies handling and installation, making it suitable for assemblies that require mobility or frequent repositioning.
Installation is straightforward, thanks to two supplied fasteners for secure fitment. Compatibility with groove sizes from 8 to 10 mm² and the 40 x 80 mm strut profile means integration into Bosch Rexroth's MGE series modular systems is seamless.
Common applications include mechanical and fluid power structural systems, conveyor frameworks, assembly lines, and storage infrastructure, where stability, alignment, and modularity are key requirements.
Robust M12 levelling plate for modular industrial assemblies. Easy installation with included fasteners. Compatible with 40 x 80 mm strut profiles and 8 to 10 mm² grooves. Die cast aluminium construction for durability and corrosion resistance.
Lightweight for mobility and reduced structural load. Ideal for environments requiring precision levelling and modularity. Explore Bosch Rexroth structural components and connect with the complete EnvMart industrial product range for modular assembly solutions.
Explore more products in our Connecting Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The length of the M12 levelling foot plate is 20 mm.
It is constructed from die cast aluminium, providing impact resistance and corrosion protection.
This model is compatible with 40 x 80 mm strut profiles.
It accommodates groove sizes from 8 to 10 mm².
The weight of this levelling foot plate is 144 grams.
This product is a levelling foot plate, designed for connecting structural components.
It complies with RoHS status: Exempt and DIN 7984 standards.
The levelling foot plate includes two fasteners for easy and reliable installation.
It is suitable for applications in gas plants, storage units, workshops, assembly lines, and processing facilities.
The levelling foot plate is designed for precise levelling of assemblies and enhancing the stability of modular structures.
The M12 levelling foot plate is manufactured in Germany.
It is part of the Bosch Rexroth MGE modular system.
