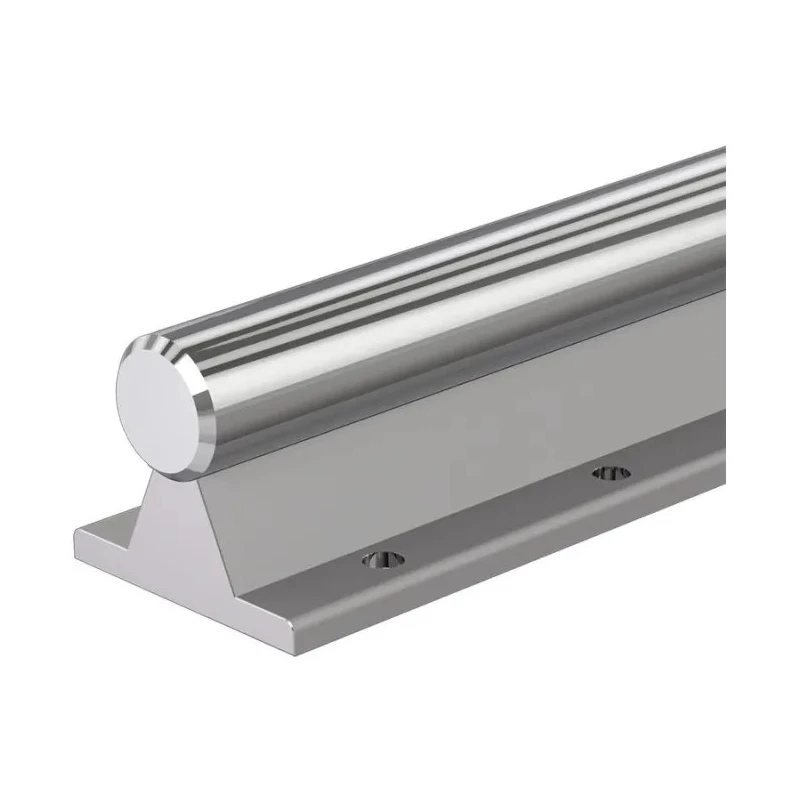

Bosch Rexroth 20 mm Shaft Diameter 800 mm Long Aluminium Steel Round Shaft Hardness 60 HRC h6 Tolerance R101402000, 800 MM

Bosch Rexroth R101402000 is an 800 mm long, 20 mm diameter round shaft consisting of aluminium and steel materials. It features a hardness rating of 60 HRC and h6 tolerance, ideal for precision linear motion applications.

This precision steel shaft comes equipped with ready-mounted aluminium shaft support rails that are flanged, providing extremely high height tolerance and additional rigidity. Designed for use with open linear bushings, it is suitable for long guides or high load scenarios that cannot employ self-supporting shafts due to potential warping issues.

The shaft support rail is made of aluminium, enabling unlimited shaft length extensions when using interconnecting shafts. This combination increases degrees of freedom around the shaft compared to standard profiled guide rails, making it particularly effective for applications with imprecise substructures where traditional linear guides may warp.

These linear shafts are frequently employed in industrial machinery, manufacturing equipment, automation systems, and other mechanical assemblies requiring precise linear motion and high load capacity.

The shaft hardness of 60 HRC ensures excellent wear resistance and durability. H6 tolerance allows for precise fits and minimal play in applications. Aluminium shaft support rails add extra rigidity and prevent shaft warping.

Suitable for open type linear bushings and guides in mechanical systems. Designed for industrial, manufacturing, and automation use cases involving linear motion.

Utilizing Bosch Rexroth linear shafts helps engineers and designers achieve reliable, precise motion control in mechanical systems. For further products within this category, explore the Linear Shafts section on EnvMart to find complementary components and accessories matching your requirements.
