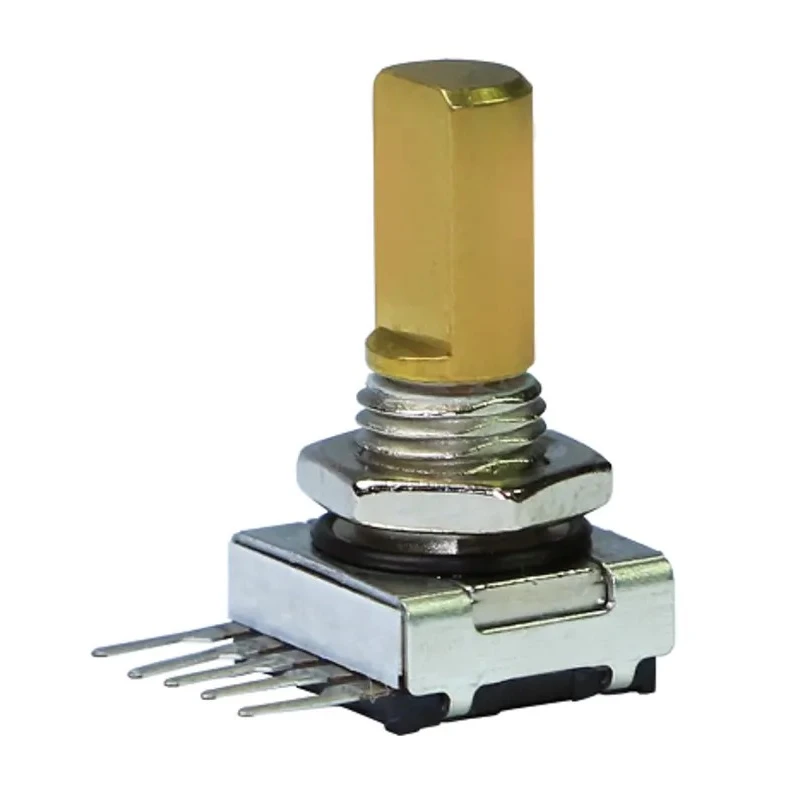

Elma Mechanical Rotary Encoder 16 Pulses Per Revolution 2 Bit Quadrature Digital Square Wave, Slotted Shaft 6 E33-CT652-M01T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Elma |
| Model | E33-CT652-M01T |
| Current Rating | 10mA |
| Series | E33 |
| Shaft Diameter | 6mm |
| Shaft Length | 16mm |
| Pulses per Revolution | 16ppr |
| Standards/Approvals | RoHS |
| Termination Style | Pin |
| Shaft Style | Slotted |
| Encoder Reading | 2 Bit Quadrature |
| Encoder Signal | Digital Square Wave |
| Maximum Operating Speed | 60rpm |
Key Features
- This mechanical rotary encoder supports a maximum operating speed of 60 rpm.
- It features a shaft length of 16 mm and a slotted style shaft for secure rotational measurement.
- The unit offers a current rating of 10 mA with pin termination style.
- The encoder complies with RoHS standards ensuring environmental safety.
- Its robust metal housing and gold plated contacts ensure long-lasting durability.
- Operating temperature ranges from -40 to +85 degrees Celsius.
- Resistant to environmental conditions with IP68 sealing on both shaft and front panel.
- The rotary encoder includes a pushbutton function activated by 6N push force.
Product Description
The Elma E33-CT652-M01T mechanical rotary encoder provides precise rotational position feedback with a resolution of 16 detent positions and a 2 bit quadrature digital square wave output signal. Its 6 mm slotted shaft and 16 mm shaft length allow easy integration into various industrial electronics systems requiring accurate rotational measurement.
Designed for robust industrial environments, this encoder features a metal housing with gold plated contacts which ensures reliable signal transmission and long service life. It offers an operating temperature range from -40 to +85 degrees Celsius, making it suitable for demanding applications.
With a maximum operating speed of 60 rpm and a current rating of 10 mA, it supports moderate speed rotary measurement tasks. The encoder is terminated with a pin style connector and complies with RoHS environmental standards.
Its IP68 rated sealing on both the shaft and front panel protects against dust and water ingress making it ideal for harsh conditions. Additionally, the built-in pushbutton function activates with a 6N push force, providing added versatility in control and feedback systems.
This mechanical rotary encoder is widely used in industrial automation, instrumentation, robotics, manufacturing process control, and other electronic sensor applications where reliable and accurate rotary feedback is essential.
Delivers 16 pulses per revolution with 2 bit quadrature output signal. Robust metal housing with gold plated contacts enhances durability. IP68 environmental sealing on shaft and front panel for harsh environments. Pushbutton function activated by 6N push force for multifunctional use.
Wide operating temperature range ensures performance under diverse conditions. Suitable for industrial, laboratory, manufacturing, and automation applications. Choose Elma Rotary Encoders at EnvMart for dependable measurement solutions in electronic components and sensor applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating speed of this rotary encoder is 60 rpm.
The shaft diameter of this model is 6 mm.
This encoder delivers 16 pulses per revolution (16 ppr).
It generates a 2 bit quadrature digital square wave output signal.
The current rating for this rotary encoder is 10 mA.
This encoder has an IP68 rating for environmental sealing on both the shaft and front panel, protecting it against dust and water ingress.
The operating temperature range for this model is from -40 to +85 degrees Celsius.
This encoder uses a pin termination style.
The housing of this rotary encoder is made of metal, which enhances its durability.
Yes, it includes a pushbutton function that is activated by a 6N push force.
Yes, it complies with RoHS standards, ensuring environmental safety.
This rotary encoder is suitable for industrial automation, instrumentation, robotics, and manufacturing process control applications.
