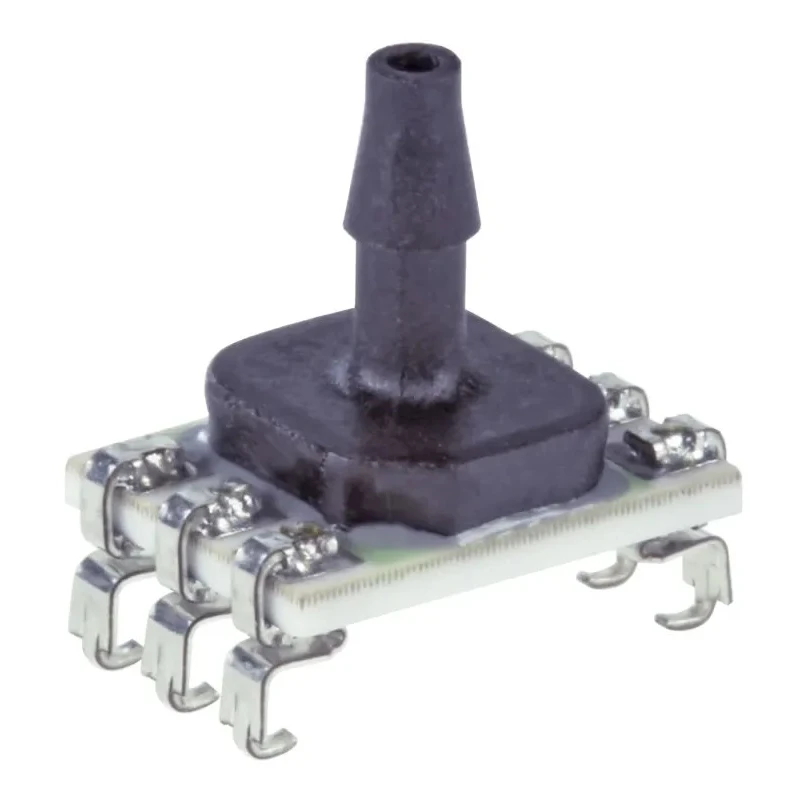

Honeywell Technologies ABP Series Gauge Pressure Sensor 15 psi Maximum Operating Pressure ±0.25% Accuracy ABPMANV015PGAA5

Honeywell Technologies ABPMANV015PGAA5 is a precision gauge pressure sensor from the ABP series designed for accurate pressure measurement up to 15 psi with an accuracy of ±0.25%. This board-mount sensor utilizes piezoresistive sensing technology providing both ratiometric analogue and 12-bit digital output options compatible with I2C or SPI communications.

Operating from a single low-voltage source of 3.3 V or 5 V, the sensor offers design flexibility for various embedded and industrial applications. Its compensated output ensures stable and reliable readings over a wide temperature range of -40°C to +85°C, suitable for harsh environments.

The device includes a single axial barbed port facilitating connection to dry gases or, with an optional gel coating, certain non-corrosive liquids, making it adaptable to diverse media. Fast response times are supported by 1 kHz analogue and 2 kHz digital update rates, while a low-power sleep mode optimizes battery-operated systems.

Manufactured under ISO 9001 standards and certified with BPA Free, LFGB, and NSF-169, this sensor ensures safety and quality especially applicable in medical devices such as CPAP machines, ventilators, and blood analysis equipment. It is also suited for pneumatic control, valve feedback, coffee makers, commercial appliances, and process gas monitoring in industrial systems.

With its compact dimensions (length 7.3 mm, width 6.3 mm, height 10.63 mm) and 6-pin SMT package type, it integrates easily onto circuit boards for efficient pressure sensing tasks.

Provides ratiometric analogue or 12-bit digital output compatible with I2C or SPI protocols. Operates on a single 3.3 V or 5 V supply for versatile system integration. Features compensated output across temperature range from -40°C to +85°C for stable readings.

Supports fast sampling with up to 1 kHz analogue and 2 kHz digital update rates. Equipped with a single axial barbed port suitable for compatible dry gases or non-corrosive liquids when coated. Manufactured to ISO 9001 standards ensuring quality and reliability.

Low-power sleep mode enables battery-powered device usage. Ideal for medical, industrial, and consumer appliance pressure monitoring applications. Explore more industrial sensors and electronic components at EnvMart for comprehensive technical solutions.
