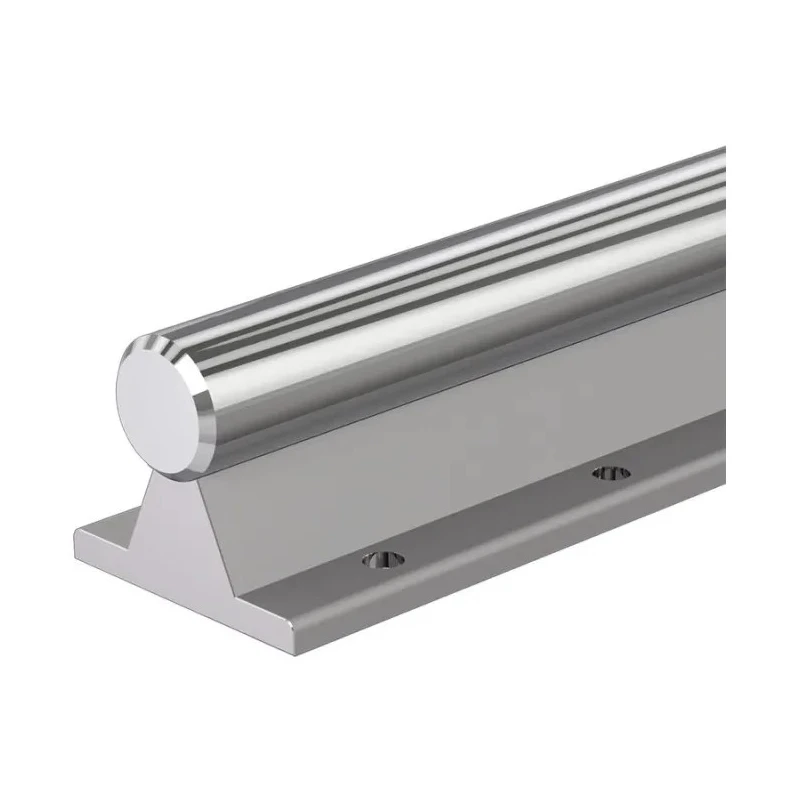

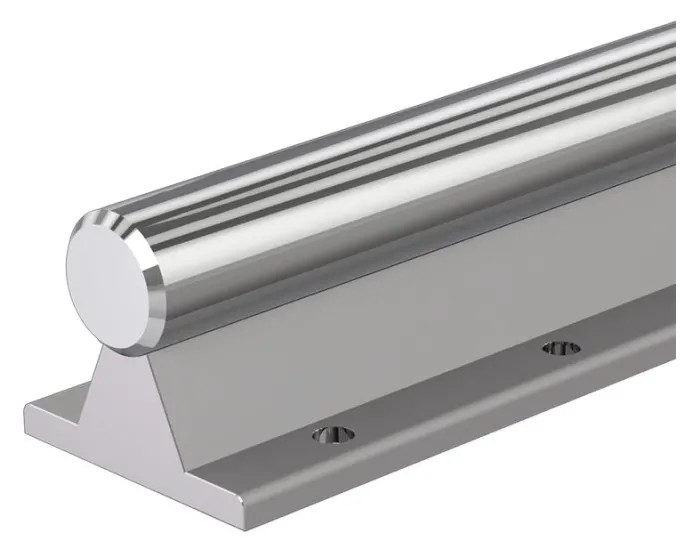

Bosch Rexroth 1 m Long Steel, Aluminium Round Shaft, 30 mm Shaft Diameter, Hardness 60 HRC, h6 Tolerance R101403000, 1000 MM

Bosch Rexroth R101403000, 1000 MM is a 1 meter long steel and aluminium round shaft designed for precision linear motion applications. The shaft features a 30 mm diameter and a hardness rating of 60 HRC, with a tight h6 tolerance ensuring high precision and minimal deviation. It is constructed as an open linear shaft with flanged aluminium support rails to provide exceptional rigidity and height tolerance.

This product is engineered for use with open Linear Bushings and support rails made from aluminium, allowing for additional degrees of freedom in the circumferential direction compared to profiled guide rails. It is ideal for industrial and manufacturing environments where long guides or high loads are involved, and where self-supporting shafts might warp due to load or substructure imperfections.

The shaft support rails enable creation of very low height linear guides, making the shaft suitable for applications demanding compact, rigid, and precise linear motion solutions. The design includes large fastening bolts that, combined with the carefully adapted support rails to the Linear Bushing size, ensures optimal pressure angles for shaft fitting and enhances rigidity.

Bosch Rexroth R101403000, 1000 MM shafts can be interconnected to create shafts of unlimited length. This flexibility supports diverse industrial applications, from mechanical engineering and fluid power systems to automation and robotics.

Precision steel shaft with aluminium support rails for enhanced rigidity. 1 meter length and 30 mm diameter suitable for various industrial uses. Hardness of 60 HRC and h6 tolerance for precise linear motion control. Flanged design and large fastening bolts for high mounting stability.

Support rails provide additional circumferential degrees of freedom. Compatible with Linear Bushings for compact and precise guides. Prevents warping in applications with imprecise substructures. Ideal for manufacturing, construction, and automation industry uses.
