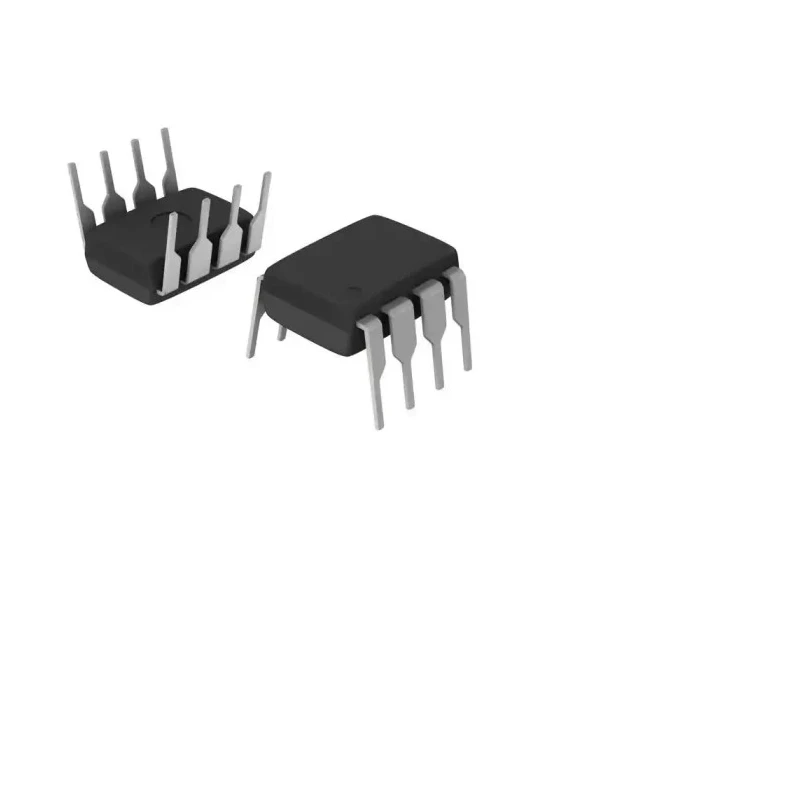

Broadcom DC Input Optocoupler Surface Mount, 8-Pin DIP HCPL-3150-000E

Broadcom HCPL-3150-000E DC Input Optocoupler is a surface mount device in an 8-pin DIP package offering optically isolated gate drive capability for power transistors such as IGBTs and MOSFETs. It features a LED optically coupled to an integrated circuit with a power output stage, providing precise gate drive voltage for inverter motor control applications and other industrial power electronics.

The device supports a maximum forward voltage of 1.8 volts at the LED input with a DC input current up to 16 mA. It ensures isolation voltage of 3.75 kV between input and output, enabling safety in industrial environments. Typical rise and fall times are fast at 0.1 microseconds, improving response time in switching operations.

Operating temperature range from -40°C to 100°C suits harsh industrial conditions. It includes under voltage lock-out protection with hysteresis to prevent erroneous triggering and supports a wide operating supply voltage range from 15 to 30 volts, making it highly versatile.

This optocoupler outputs logic-level signals eliminating the need for negative gate drive and can deliver a minimum peak output current of 0.5 A, suitable for driving power devices directly. It achieves a minimum common mode rejection of 15 kV/µs at 1500 V, ensuring noise immunity in challenging electrical environments.

The HCPL-3150 series complies with UL, CSA, EN, and IEC standards for quality and safety. Its packaging in tubes facilitates automated assembly and inventory management.

This device is ideal for industrial, motor control, power inverter, HVAC, and manufacturing applications requiring isolated gate drive of IGBTs or MOSFETs. It delivers reliable performance in demanding environments where electrical isolation and fast switching are essential.

The device features a maximum forward voltage of 1.8 volts. It operates with a DC input current up to 16 mA. Provides strong isolation voltage of 3.75 kV for safe operation. Typical rise and fall times are both 0.1 microseconds for fast switching.

Industrial temperature range supports operation from -40 to 100 degrees Celsius. Incorporates under voltage lock-out protection with hysteresis for robust performance. Wide operating supply voltage range from 15 to 30 volts.

Outputs logic-level signals suitable for gate driving of IGBTs and MOSFETs. Designed for motor control inverter and other high power switching applications. Packaged in tubes and complies with UL, CSA, EN, and IEC standards.
