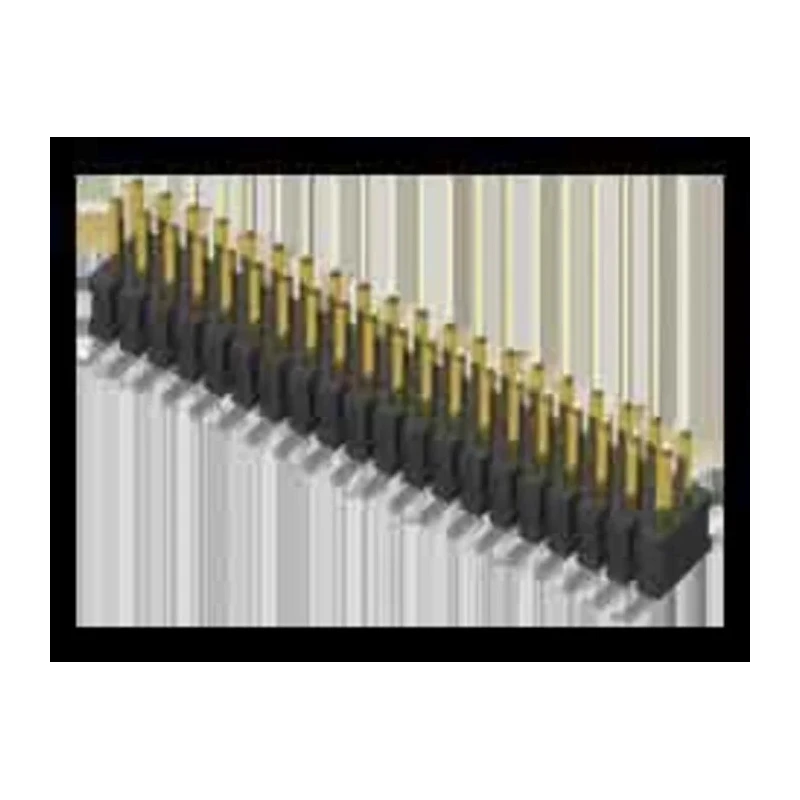

Samtec Pin Header 26 Contact, 1.27 mm Pitch, 2 Row, Straight Surface Mount, Unshrouded FTSH-113-01-L-DV-K-P-TR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Current | 3.4A |
| Model | FTSH-113-01-L-DV-K-P-TR |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | FTSH |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 26 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 0.1mm |
| Mating Pin Length | 3.05mm |
Key Features
- Constructed with phosphor bronze contacts plated in gold for enhanced conductivity.
- Housing is made of liquid crystal polymer, providing durability and insulating properties.
- Designed with straight orientation for easy PCB integration and solder termination.
- Supports a current rating up to 3.4A with reliable performance.
- Operating temperature range from -55°C to 125°C for versatile environmental conditions.
- Unshrouded design allows for easy mating and inspection of contacts.
- Tail pin length is 0.1 mm and mating pin length is 3.05 mm for precise fitting.
- Surface mount technology suitable for automated PCB assembly processes.
Product Description
Samtec FTSH-113-01-L-DV-K-P-TR pin header is a straight, surface-mount connector featuring 26 male contacts arranged in 2 rows with a 1.27 mm pitch. This connector is designed specifically for wire-to-board PCB applications.
Constructed using phosphor bronze for contact material and plated with gold, the header ensures excellent electrical performance and corrosion resistance. The housing is made from liquid crystal polymer, providing mechanical strength and high-temperature resistance.
The product supports a current rating of 3.4A and operates reliably within a temperature range of -55°C to 125°C, making it suitable for various industrial and commercial electronics applications.
The tail pin length of 0.1 mm and mating pin length of 3.05 mm allow precise and secure connections on printed circuit boards. The unshrouded design facilitates easy mating and visual inspection of the contacts during assembly.
Samtec's FTSH series connectors include options with different post heights, vertical and horizontal row configurations, and hot pluggable versions (HPT Series) for enhanced versatility.
This pin header is ideal for applications in electronic manufacturing, industrial automation, and other PCB connector needs where high reliability and electrical performance are essential.
Constructed with phosphor bronze contacts plated with gold for enhanced conductivity and durability. Liquid crystal polymer housing ensures mechanical strength and thermal stability. 26 male contacts arranged in 2 rows with 1.27 mm pitch for precise PCB alignment.
Rated for 3.4A current under operating temperatures ranging from -55°C to 125°C. Solder termination tail pins of length 0.1 mm for secure surface mounting. Unshrouded straight connector design allows easy mating and inspection during assembly.
Suitable for wire-to-board applications using surface mount technology. Cost-saving flash gold plating option available for extended life. Micro header with versatile post heights and configurations in the FTSH series. Explore our extensive catalog of PCB Headers at EnvMart to find the right connectors for your electronics projects and industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 3.4A, making it suitable for various electronic applications.
It operates reliably within a temperature range of -55°C to 125°C, allowing for versatile use in different environments.
The contacts are made of phosphor bronze and are plated with gold, while the housing is constructed from liquid crystal polymer.
This model features 26 male contacts arranged in 2 rows with a 1.27 mm pitch.
The tail pin length is 0.1 mm, which is designed for secure surface mounting.
It uses solder termination, suitable for surface mount applications.
This model is unshrouded, allowing for easy mating and visual inspection of the contacts during assembly.
The contact pitch is 1.27 mm, which facilitates precise alignment on printed circuit boards.
It is designed for wire-to-board applications, making it suitable for various PCB connector needs.
The pin header is manufactured in India, ensuring quality in production.
This model is part of the FTSH series, which includes various configurations and post heights.
The mating pin length is 3.05 mm, allowing for precise fitting on PCBs.
