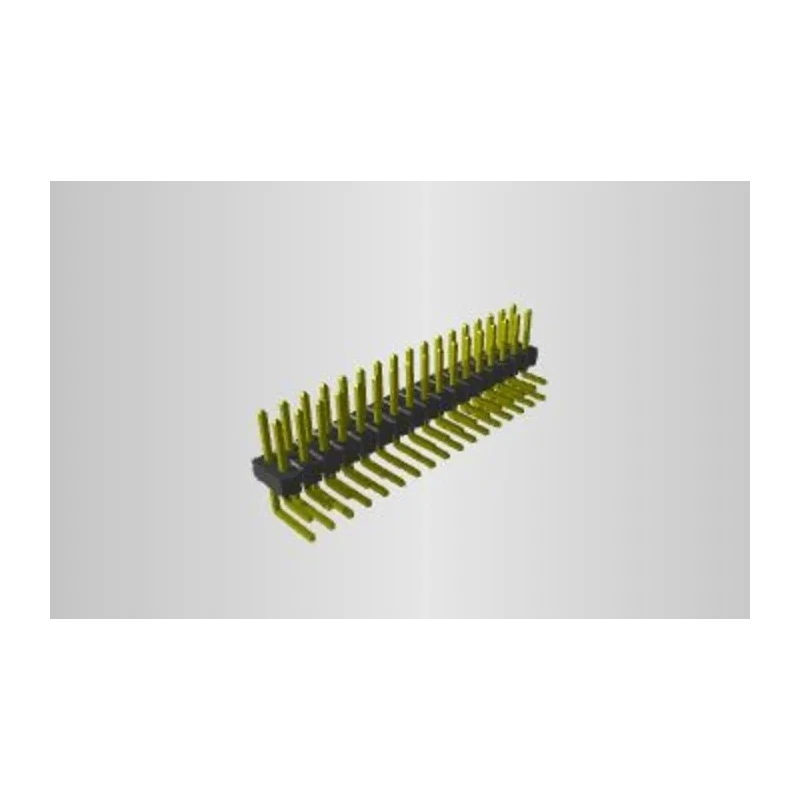

Samtec Pin Header 34 Contacts 2.54 mm Pitch 2 Row Unshrouded Through Hole Mount TSW-117-08-G-D-RA
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V |
| Brand | Samtec |
| Orientation | Straight |
| Model | TSW-117-08-G-D-RA |
| Mount Type | Through Hole |
| Special Features | Many options fo |
| Housing Material | Glass Filled Polyester |
| Contact Material | Phosphor Bronze |
| Series | TSW |
| Termination | Through-hole |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 34 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Contact System | .025" (0.635 mm) square post |
Key Features
- The pin header uses glass filled polyester housing for durability and insulation.
- Contact material is phosphor bronze with gold plating for reliable conductivity.
- The component supports a voltage rating of 550V and operates between -55°C and 125°C.
- Termination is solder type with a male contact gender designed for board-to-board connections.
- Row pitch matches the 2.54 mm contact pitch, ensuring compatibility with standard PCB footprints.
- The connector system supports through-hole mounting providing mechanical robustness.
- Ideal for industrial and electronic applications requiring precise pin spacing and reliable connections.
Product Description
Samtec TSW-117-08-G-D-RA is a high-quality pin header designed for electronic component applications. This model comprises 34 male contacts arranged in two rows with a standard 2.54 mm pitch, facilitating board-to-board connections.
The housing is made from glass filled polyester material ensuring electrical insulation and mechanical strength. Contacts are constructed from phosphor bronze and plated with gold to maintain optimal electrical conductivity and corrosion resistance during long-term use.
Operating temperature ranges from -55°C to 125°C, allowing the pin header to function effectively in harsh industrial and commercial environments. The header is unshrouded and designed for through-hole mounting, offering robust mechanical attachment to PCBs.
With a voltage rating of 550V, this connector is suitable for a wide range of electronic and electrical applications, including industrial controls, instrumentation, and assembly lines. The termination type is solder, providing a durable and reliable connection suitable for automated assembly processes.
The pin header features 34 contacts for extensive connectivity needs. Standard 2.54 mm pitch ensures compatibility with common PCB layouts. Durable glass filled polyester housing for mechanical and electrical reliability.
Phosphor bronze contacts with gold plating for enhanced conductivity and corrosion resistance. Operating temperature range from -55°C to 125°C fits demanding industrial environments. Unshrouded straight configuration suitable for various assembly applications.
Through-hole mount guarantees secure PCB attachment and mechanical stability.
This Samtec TSW series pin header is an excellent choice for engineers and designers requiring dependable and precise PCB connectors for electronic assemblies, prototyping, and mass production.
Explore more PCB headers and connectors on EnvMart for your electronic component needs.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pin header supports a voltage rating of 550V, making it suitable for a variety of electronic and electrical applications.
This model operates effectively within a temperature range of -55°C to 125°C, allowing it to function in harsh environments.
It features 34 male contacts arranged in two rows, facilitating extensive connectivity needs for board-to-board connections.
This pin header is designed for through-hole mounting, providing secure mechanical attachment to PCBs.
The housing is made from glass filled polyester for insulation and mechanical strength, while the contacts are phosphor bronze with gold plating for conductivity.
The contact pitch for this model is 2.54 mm, ensuring compatibility with standard PCB layouts.
It utilizes a solder termination type, which provides a durable connection suitable for automated assembly processes.
This model is unshrouded, which allows for easier access to the contacts during assembly.
The contact gender of this pin header is male, designed for board-to-board connections.
It supports a board-to-board connector system, making it suitable for various electronic applications.
The country of origin for this pin header is India.
This model belongs to the TSW series, which includes various options for PCB headers.
