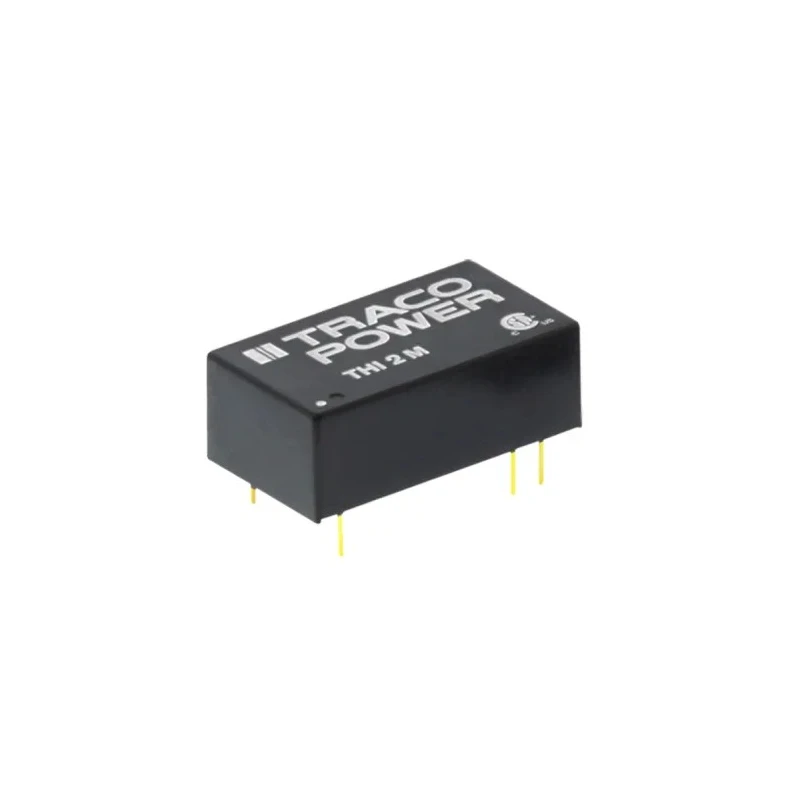

TRACOPOWER DC/DC Converter THI 2-0522M, 12V, -12V Output, 83 mA Current, 5V DC Input, 2W Power, PCB Mount, 71°C Max Temp
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER THI 2M DC/DC Converter, 12V, -12 V/ 83 |
| Brand | TRACOPOWER |
| Efficiency | 72% |
| Length | 23.8mm |
| Model | THI 2-0522M |
| Depth | 8.6mm |
| Mount Type | PCB |
| Series | THI 2M |
| Maximum Operating Temperature | 71°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 2000000h |
| Number of outputs | 2 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 5V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 0V |
| Number of Pins | 6 |
| Output Voltage 1 | 12, -12V |
| Output Current 1 | 83mA |
| Output Voltage Adjustment Range | 0/5 V |
| Isolation Voltage | 4kV dc |
| Input Ratio | 2:1 |
| Input Ratio 2 | 1 |
Key Features
- Operates at 72% efficiency within a temperature range of -40°C to 71°C.
- DIP package with 6 pins provides reinforced insulation and 4kV DC isolation voltage.
- Compact size with length 23.8mm and depth 8.6mm for PCB mounting.
- High reliability with MTBF rating of 2,000,000 hours according to MIL-HDBK-217F.
- RoHS compliant ensuring environmental safety and quality standards.
- Built-in pi-filter and short circuit protection enhance reliable operation.
- Manufactured in Taiwan, Province Of China, ensuring quality standards.
Product Description
TRACOPOWER THI 2-0522M is a compact and efficient DC/DC converter providing isolated dual outputs of 12V and -12V with a maximum output current of 83 mA and maximum output power of 2W. It is designed for robust PCB mounting applications requiring stable voltage conversion and isolation. The device operates with input voltages ranging from 0V to 5V DC and features an input ratio of 2:1, enabling versatile integration in various power supply designs.
The reliability is highlighted by a mean time between failures (MTBF) of 2 million hours, conforming to MIL-HDBK-217F standards. Its operating temperature range from -40°C to 71°C makes it suitable for industrial, medical, and laboratory environments.

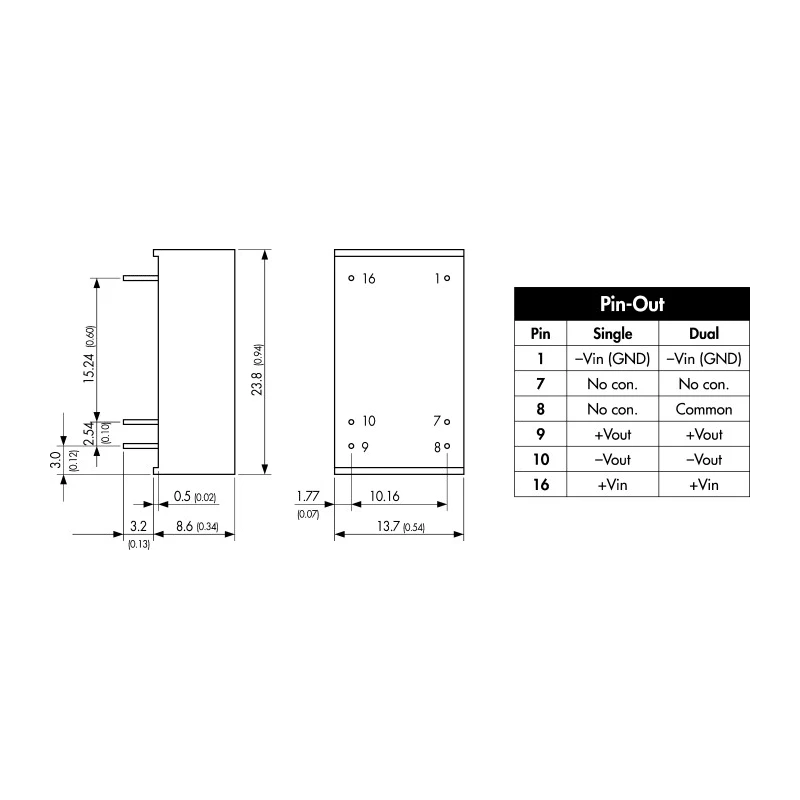

The package is a DIP with 6 pins, measuring 23.8 mm in length and 8.6 mm in depth. It includes high isolation voltage of 4kV DC ensuring safety in sensitive electronic systems. The converter is RoHS compliant and constructed with UL94V-0 material, ensuring flame resistance. The built-in pi-filter and short circuit protection enhance operational safety and electromagnetic compatibility.
This converter supports input voltages from 0V to 5V DC within a 2:1 input ratio. Output voltages are dual with positive and negative 12V outputs. The DIP package with 6 pins ensures easy PCB mounting and integration. Maximum output power rating is 2W with efficiency around 72%.
Operating temperature range is from -40°C minimum to 71°C maximum. Isolation voltage rating is 4kV DC for high voltage safety. MTBF rating of 2,000,000 hours supports reliability in demanding applications. Manufactured in Taiwan, Province Of China, ensuring quality standards.
This converter series is ideal for industrial automation, control systems, medical instrumentation, and other electronics requiring regulated isolated dual voltage outputs. Its compact size and protective features allow flexible integration in advanced PCB designs. For more options on DC/DC Converters and power supply components, browse the extensive EnvMart catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 2W.
It provides dual output voltages of 12V and -12V.
The efficiency of this converter is rated at 72%.
It accepts input voltages ranging from 0V to 5V DC.
The maximum operating temperature is 71°C.
The isolation voltage rating is 4kV DC.
This model features two outputs.
The DIP package measures 23.8 mm in length and 8.6 mm in depth.
The mean time between failures (MTBF) is rated at 2,000,000 hours.
It is designed for PCB mounting.
This model is RoHS compliant, ensuring environmental safety standards.
The input ratio is 2:1, allowing for versatile integration in power supply designs.
