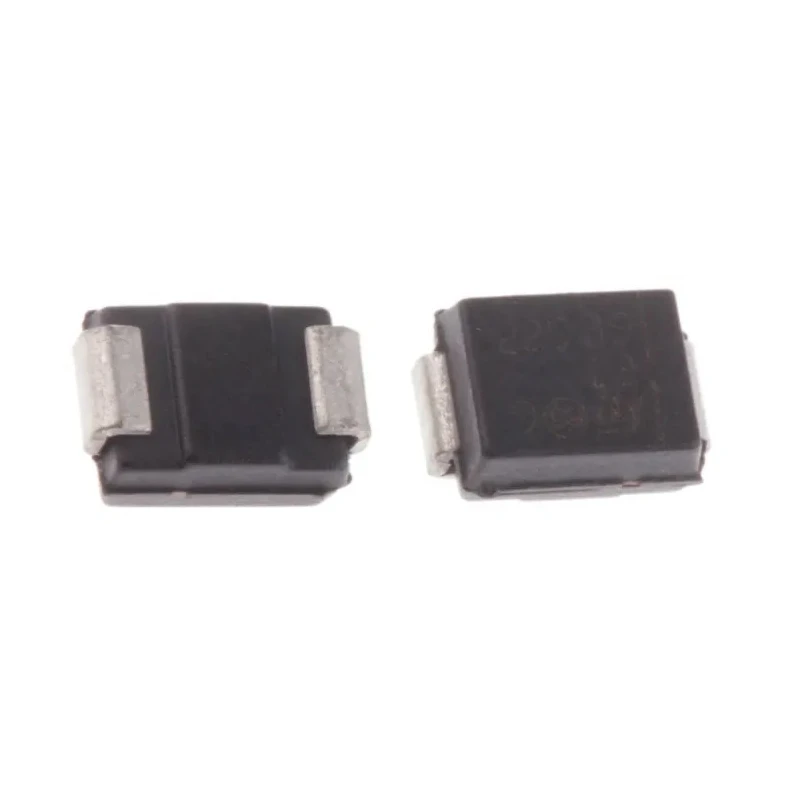

STMicroelectronics 1-Element Uni-Directional TVS Diode 600 W 2-Pin DO-214 SM6T33A
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 2.45mm |
| Length | 4.6mm |
| Model | SM6T33A |
| Width | 3.95mm |
| Mount Type | Surface |
| Series | SM6T |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 59V |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 31.4V |
| Maximum Reverse Stand-off Voltage Vwm | 28.2V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 68A |
| Maximum Reverse Leakage Current | 200nA |
Key Features
- This diode features a minimum breakdown voltage of 31.4 V and maximum reverse stand-off voltage of 28.2 V.
- It has a clamping voltage of 59 V and maximum peak pulse current of 68 A.
- The device supports a wide operating temperature range from -55°C to 150°C.
- The compact dimensions of 4.6 mm length, 3.95 mm width, and 2.45 mm height facilitate surface mounting.
- Designed for transient voltage suppression in electronic circuits to protect sensitive components.
- Single element chip configuration ensures reliable unidirectional protection.
- Maximum reverse leakage current is low at 200 nA for enhanced performance.
- Non-automotive standard device ideal for various industrial and consumer electronics applications.
Product Description
The STMicroelectronics SM6T33A is a robust 1-element uni-directional Transient Voltage Suppressor (TVS) diode designed to protect electronics from transient voltage spikes. With a peak pulse power dissipation capability of 600 W and housed in a compact 2-pin DO-214 surface mount package, it offers dependable performance in a variety of electrical protection applications.
This TVS diode features a minimum breakdown voltage (Vbr) of 31.4 V and a maximum reverse stand-off voltage (Vwm) of 28.2 V, which provides effective clamping and limits voltage spikes to a clamping voltage (Vc) of 59 V. It supports a test current (It) of 1 mA and can handle maximum peak pulse currents (Ippm) up to 68 A, making it well-suited for robust transient suppression needs.
The component operates reliably within a temperature range of -55°C to 150°C, ensuring stability in demanding industrial and commercial environments. Its compact size with dimensions 4.6 mm in length, 3.95 mm in width, and 2.45 mm in height permits easy surface mounting on printed circuit boards, facilitating design flexibility.
This diode is intended for transient voltage suppression and is widely used in electronics protection applications. Designed with a single-element chip for unidirectional surge protection functions. Lower maximum reverse leakage current of 200 nA enhances reliability and reduces power loss.
Non-automotive standard device suitable for general industrial and consumer electronics. The SM6T33A belongs to the SM6T series known for reliable transient suppression characteristics.
Ideal for use in industrial equipment, power supplies, consumer electronics, and various electronic systems requiring ESD and transient over-voltage protection. Applications include telecommunications, computing, and automotive electronics where transient voltage suppression is critical to protect sensitive circuitry.
For comprehensive design support, STMicroelectronics provides technical documentation, 3D models, and RoHS compliance certificates. This product is a dependable choice within the semiconductor discrete components category under TVS diodes.
Browse the Electronics & Electricals category at EnvMart for more semiconductor protection solutions including TVS Diodes, Zener diodes, and Schottky diodes to find the optimal device for your circuit protection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SM6T33A diode has a peak pulse power dissipation capability of 600 W.
The clamping voltage (Vc) for the SM6T33A is 59 V.
The maximum reverse stand-off voltage (Vwm) of the SM6T33A is 28.2 V.
This diode operates within a temperature range of -55°C to 150°C.
The dimensions of the SM6T33A are 4.6 mm in length, 3.95 mm in width, and 2.45 mm in height.
The maximum peak pulse current (Ippm) for the SM6T33A is 68 A.
The SM6T33A features a single element per chip configuration.
The minimum breakdown voltage (Vbr) of the SM6T33A is 31.4 V.
This model supports surface mounting due to its compact design.
The maximum reverse leakage current for the SM6T33A is 200 nA.
The SM6T33A is used in various applications including telecommunications, computing, and consumer electronics for transient voltage suppression.
The SM6T33A is housed in a DO-214 package type.
