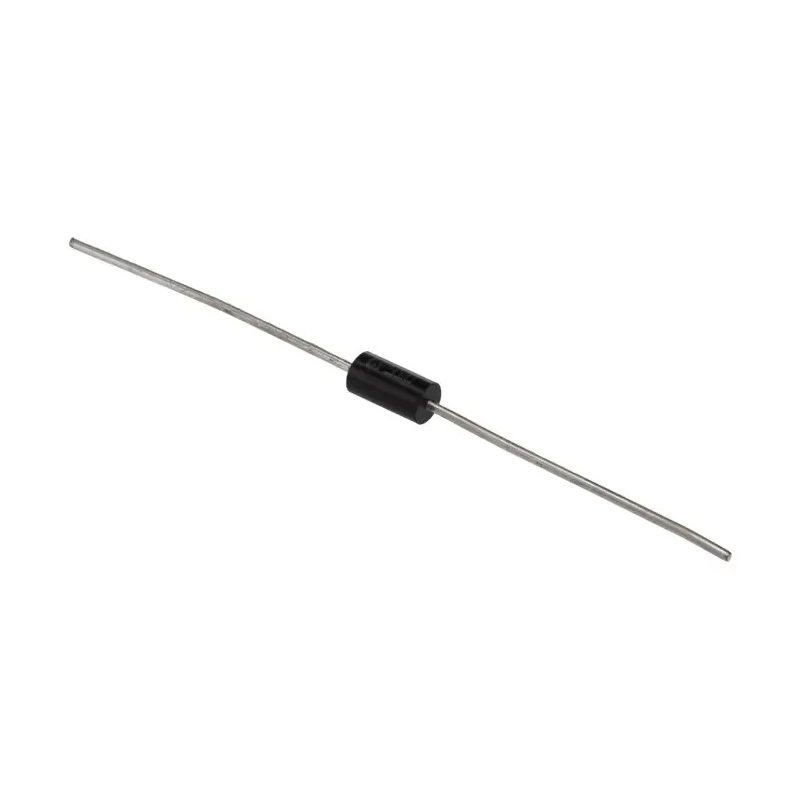

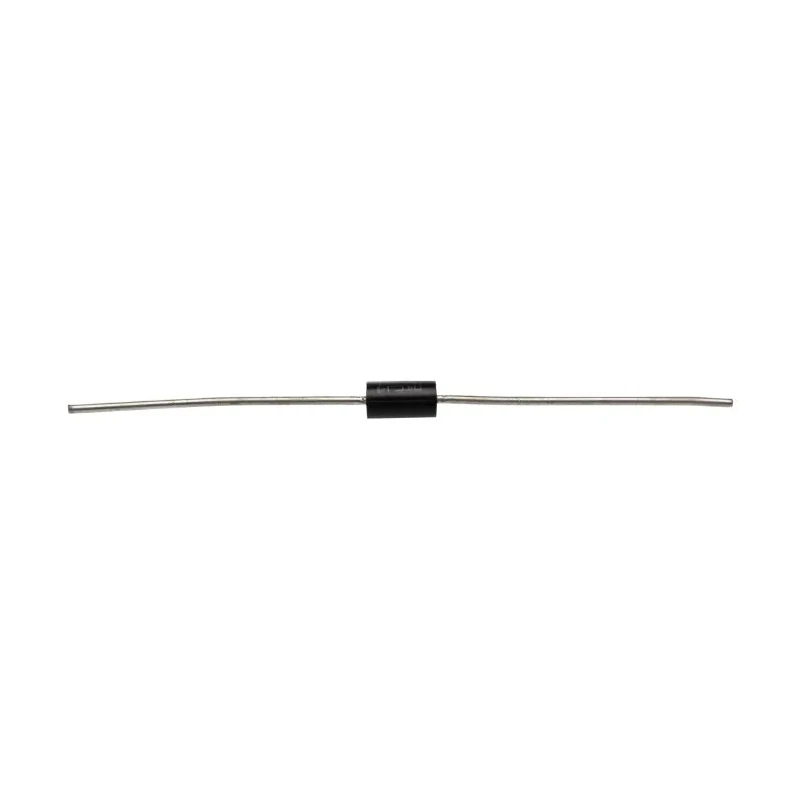

STMicroelectronics 1-Element Bi-Directional TVS Diode 600 W, 2-Pin DO-15 P6KE6V8CA
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3.53mm |
| Brand | STMicroelectronics |
| Height | 3.53mm |
| Length | 6.75mm |
| Model | P6KE6V8CA |
| Width | 3.53mm |
| Mount Type | Through Hole |
| Series | P6KE |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 13.4V |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 6.45V |
| Maximum Reverse Stand-off Voltage Vwm | 5.8V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 10mA |
| Maximum Peak Pulse Current Ippm | 298A |
| Maximum Reverse Leakage Current | 1mA |
Key Features
- Bi-directional configuration protects circuits from voltage transients in both polarities.
- Minimum breakdown voltage of 6.45 V ensures reliable triggering during transient events.
- Clamping voltage of 13.4 V limits voltage spikes effectively.
- Maximum reverse stand-off voltage of 5.8 V for optimal protection level.
- Wide operating temperature range from -65°C to 175°C for harsh environments.
- Through-hole mount type with a compact DO-15 package facilitates easy assembly.
- Rated peak pulse current of 298 A supports high surge currents.
- Maximum reverse leakage current of 1 mA minimizes power loss during normal operation.
Product Description
STMicroelectronics P6KE6V8CA is a 1-Element Bi-Directional Transient Voltage Suppression (TVS) Diode designed to safeguard electronic circuits against transient voltage spikes and surges. Featuring a peak pulse power dissipation of 600 W and housed in a DO-15 axial through-hole package, this component offers compact and reliable protection for sensitive electronic devices.
The diode configuration is single and bi-directional, allowing effective suppression of voltage transients in both polarities. It has a minimum breakdown voltage (Vbr) of 6.45 V and clamps voltage spikes at 13.4 V. The maximum reverse stand-off voltage (Vwm) is 5.8 V, with a remarkable maximum peak pulse current (Ippm) of 298 A, making it suitable for high surge current applications.
Its operating temperature range spans from -65°C to 175°C, making it appropriate for demanding industrial, automotive, and electronic applications that require durability under extreme temperatures.
The physical dimensions include a length of 6.75 mm and a diameter of 3.53 mm, fitting standard through-hole assembly methods. The maximum reverse leakage current is 1 mA, ensuring minimal leakage during normal operating voltages.
This TVS Diode is ideal for protecting power supplies, communication lines, and industrial equipment from ESD, lightning, and inductive load switching transients that could otherwise damage components.
Bi-directional configuration protects circuits from voltage transients in both polarities. Minimum breakdown voltage of 6.45 V ensures reliable triggering during transient events. Clamping voltage of 13.4 V limits voltage spikes effectively.
Maximum reverse stand-off voltage of 5.8 V for optimal protection level. Wide operating temperature range from -65°C to 175°C for harsh environments. Through-hole mount type with a compact DO-15 package facilitates easy assembly.
Rated peak pulse current of 298 A supports high surge currents. Maximum reverse leakage current of 1 mA minimizes power loss during normal operation. Axial leaded design with dimensions approximately 6.75 mm length and 3.53 mm diameter.
Single element per chip design for efficient transient protection.
Choose STMicroelectronics P6KE6V8CA for reliable transient voltage suppression in industrial, automotive, telecommunications, and consumer electronics applications. Explore more quality semiconductor devices to meet your design and manufacturing needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of this model is 600 W, providing effective protection against voltage transients.
The minimum breakdown voltage is 6.45 V, ensuring reliable triggering during transient events.
The clamping voltage is 13.4 V, which effectively limits voltage spikes.
The maximum reverse stand-off voltage is 5.8 V, providing optimal protection levels.
This model operates within a temperature range of -65°C to 175°C, suitable for harsh environments.
The maximum peak pulse current is 298 A, allowing it to handle high surge currents effectively.
The dimensions are approximately 6.75 mm in length and 3.53 mm in diameter, fitting standard through-hole assembly methods.
It features a through-hole mount type, facilitating easy assembly in electronic circuits.
This diode has a single element per chip design, providing efficient transient protection.
The maximum reverse leakage current is 1 mA, which minimizes power loss during normal operation.
It is suitable for protecting power supplies, communication lines, and industrial equipment from ESD, lightning, and inductive load switching transients.
The diode configuration is bi-directional, allowing effective suppression of voltage transients in both polarities.
