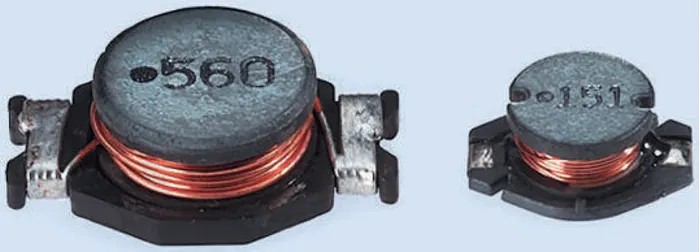

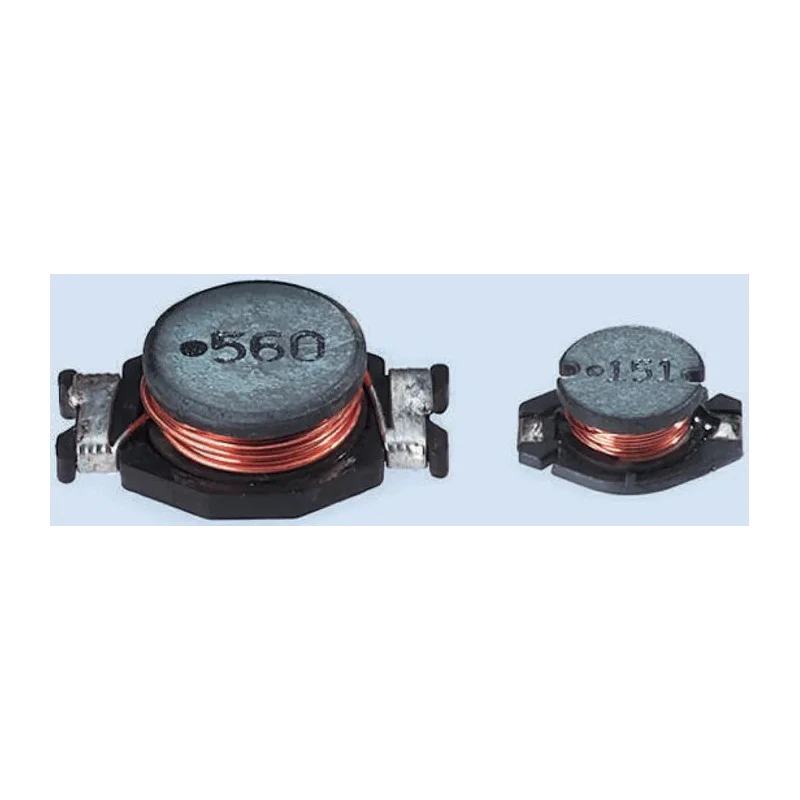

Wurth Elektronik Unshielded Wirewound Surface Mount Inductor with Ferrite Core, 68 μH ±10%, 1.6 A Idc, 12.7mm 74456168
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 7.6mm |
| Brand | Wurth Elektronik |
| Height | 5mm |
| Length | 12.7mm |
| Model | 74456168 |
| Depth | 10mm |
| Packaging | Tape & Reel |
| Series | WE-PD4 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 68μH |
| Standards/Approvals | RoHS, REACH, JEDEC JS709B |
| Maximum DC Current | 1.6A |
| Maximum DC Resistance | 240mΩ |
| Inductance Tolerance | ±10 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 8.5MHz |
| Inductor Construction | Wirewound |
Key Features
- The inductor has a compact size with 12.7mm length and 7.6mm diameter.
- It is designed for surface mount applications with tape and reel packaging.
- The ferrite core construction ensures low power loss and efficient operation.
- The product operates reliably between -40°C to 125°C with a maximum DC resistance of 240mΩ.
- This wirewound inductor series supports frequencies up to 8.5 MHz self-resonant frequency.
- The termination style is surface mount, compatible with SMT assembly processes.
- It conforms to RoHS, REACH, and JEDEC JS709B standards and is moulded for durability.
Product Description
The Wurth Elektronik 74456168 WE-PD4 series is an unshielded wirewound surface mount inductor equipped with a ferrite core. This inductor provides an inductance of 68 μH with a ±10% tolerance and supports a maximum DC current of 1.6 A, suitable for high efficiency switch mode power supplies (SMPS) and interference suppression applications.
Constructed with quality ferrite material, it offers low power loss and electrical stability across a wide operating temperature range from -40°C up to 125°C. The compact dimensions of 12.7mm length, 7.6mm diameter, 5mm height, and 10mm depth make it ideal for space-constrained electronics applications. The inductor is designed for surface mount technology (SMT) with tape and reel packaging, facilitating automated assembly processes.
This wirewound inductor has a maximum DC resistance of 240mΩ and a self-resonant frequency of 8.5 MHz, ensuring effective performance within its rated frequency range. The product complies with RoHS, REACH environmental and quality standards, as well as JEDEC JS709B, assuring reliable and safe deployment in automotive and industrial electronic circuits.
Applications include use in power supply filtering, power conversion, and electronic noise reduction in industrial, HVAC, manufacturing, and commercial electronic equipment. Its moulded construction adds mechanical robustness for demanding environments.
The inductor has a compact size with 12.7mm length and 7.6mm diameter. It is designed for surface mount applications with tape and reel packaging. The ferrite core construction ensures low power loss and efficient operation.
The product operates reliably between -40°C to 125°C with a maximum DC resistance of 240mΩ. This wirewound inductor series supports frequencies up to 8.5 MHz self-resonant frequency. The termination style is surface mount, compatible with SMT assembly processes.
It conforms to RoHS, REACH, and JEDEC JS709B standards and is moulded for durability. Discover our wide range of electronic components and Surface Mount Inductors at EnvMart for your industrial and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 68 μH with a tolerance of ±10%.
The maximum DC current for this unit is 1.6 A.
It has a length of 12.7 mm, a diameter of 7.6 mm, a height of 5 mm, and a depth of 10 mm.
The maximum self-resonant frequency is 8.5 MHz.
It operates reliably between -40°C and 125°C.
The maximum DC resistance is 240 mΩ.
It uses a ferrite core construction, which ensures low power loss and efficient operation.
This inductor is packaged in tape and reel, making it suitable for automated assembly processes.
It conforms to RoHS, REACH, and JEDEC JS709B standards.
It is suitable for power supply filtering, power conversion, and electronic noise reduction in various electronic equipment.
This model features a wirewound construction.
Yes, it is designed for surface mount applications and is compatible with SMT assembly processes.
