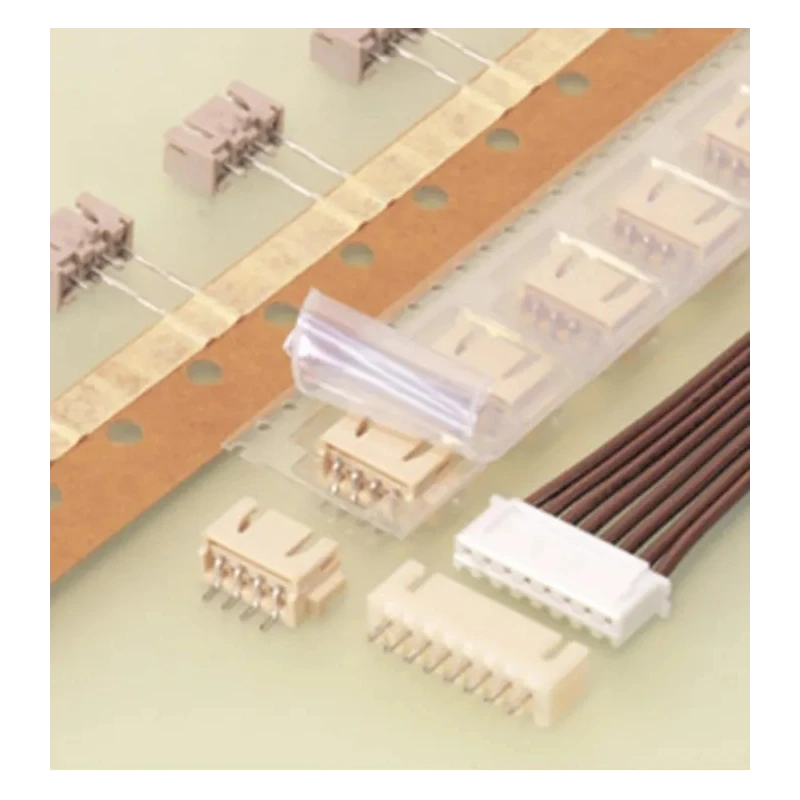

JST XH Series Straight Through Hole PCB Header, 14 Contacts, 2.5 mm Pitch, 1 Row, Shrouded B14B-XH-2 (LF)(SN)

JST B14B-XH-2 (LF)(SN) is a high-quality PCB Header from the XH series designed for reliable electronic board interconnection. Featuring 14 contact points arranged in a single row with a 2.5 mm pitch, this shrouded, straight orientation header is suitable for board-to-board connector applications, providing robust mechanical and electrical performance.

The housing is made from durable polyamide, offering excellent insulation and thermal resistance. Brass contact material with copper and tin plating ensures optimal conductivity and corrosion resistance, enhancing long-term reliability.

Designed for through-hole mount technology, this connector facilitates strong soldered connections and mechanical stability in densely populated circuit boards. The tail pin length of 3.4 mm is ideal for insertion and mounting reliability.

With an operating temperature range from -25°C up to 85°C and a voltage rating of 1000V, this header is suitable for a wide range of industrial, electronic, and manufacturing environments. The current carrying capacity is rated at 3 Amperes, making it fit for medium power electronic circuit applications.

The shrouded feature provides enhanced protection against accidental shorts and improves connector alignment during installation. This product complies with the HA terminal conformity and is manufactured in Japan, ensuring premium build quality and high performance.

Applications include PCB assembly in industrial controls, electronic equipment manufacturing, power supplies, and other board-to-board connectivity needs in commercial and laboratory electronics sectors.

The header features a straight orientation suitable for board-to-board connections. Constructed with a polyamide housing material providing durability. Current rating of 3A supports medium power electronics applications.

Contact material is brass plated with copper and tin for corrosion resistance. Designed for through-hole mounting ensuring stable mechanical and electrical connections. Compatible with solder termination for reliable assembly on PCBs.

Operates in temperature ranges from -25°C to 85°C. The tail pin length is 3.4 mm suitable for secure board insertion. This shrouded header ensures protection against accidental shorts and improved connection reliability.

Voltage rating up to 1000V supports high-voltage electronic circuits. Explore the Electronics Components category on EnvMart for more PCB connectors and related products from leading brands like JST.
