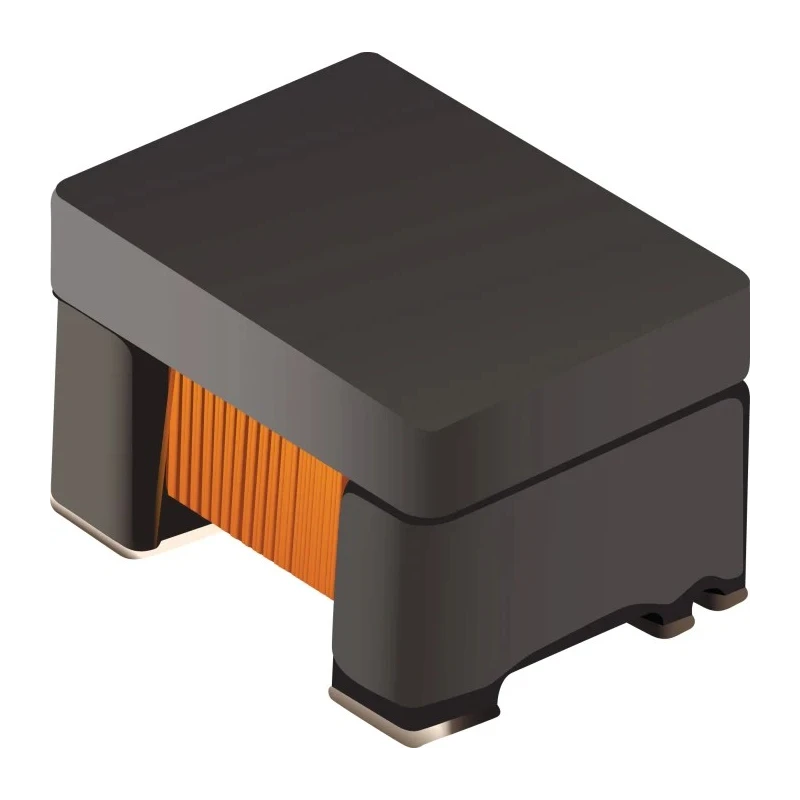

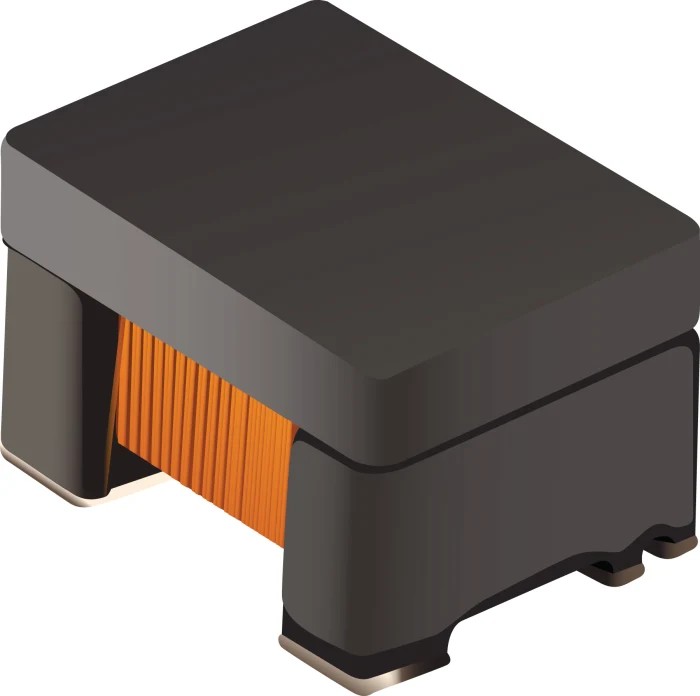

Bourns Surface Mount LAN Ethernet Transformer 230μH Inductance, 1 Output, Insertion Loss -1.5dB, 2.9mm SM453230-231N7YP
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Bourns |
| Model | SM453230-231N7YP |
| Depth | 2.9mm |
| Mount Type | Surface |
| Series | SM453230-231N7YP |
| Termination Type | N7 Termination |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | Ethernet compatible |
| Number of outputs | 1 |
| Inductance | 230μH |
| Standards/Approvals | IEEE 802.3 |
| Insertion Loss | -1.5dB |
| Turns Ratio | 1:1 |
| Turns Ratio1 | 1 |
Key Features
- Compatible with IEEE 802.3 Ethernet standards for reliable network performance.
- Insertion loss is rated at -1.5dB to minimize signal degradation.
- Surface mount type with a compact 2.9mm depth suitable for PCB layouts.
- Operates effectively between -40°C and 85°C for harsh industrial environments.
- Termination via N7 type ensures secure and standardized connections.
- Constructed to provide EMI suppression with discrete transformers and common mode chip inductors.
- Designed to be compliant with halogen-free materials and PoE+ capable operation.
Product Description
Bourns SM453230-231N7YP is a high-quality surface mount LAN Ethernet transformer engineered for industrial and commercial network hardware applications. Featuring an inductance of 230μH and designed for use with IEEE 802.3 Ethernet standards, this transformer supports both 1G and 2.5G Ethernet communication with excellent performance.
The device has a single output with a 1:1 turns ratio and a low insertion loss of -1.5dB to ensure signal integrity. Its compact surface mount form factor with a depth of only 2.9mm makes it suitable for dense PCB layouts commonly seen in network equipment.
Operating reliably within a wide temperature range from -40°C to 85°C, the SM453230-231N7YP is ideal for environments requiring robust thermal tolerance. The termination type is N7, securing proper electrical connections on printed circuit boards.
This transformer module integrates discrete components including a chip-LAN transformer and common mode chip inductor to minimize EMI and improve overall electromagnetic compatibility, making it halogen-free and PoE+ capable for modern power-over-Ethernet applications.
Common industrial use cases encompass Ethernet switches, routers, and network interface cards used in data centers, telecommunications facilities, manufacturing plants, and commercial networking systems.
Compatible with IEEE 802.3 Ethernet standards. Low insertion loss of -1.5dB for high signal quality. Single output with 1:1 turns ratio. Compact surface mount form factor with 2.9mm depth. Wide operating temperature range from -40°C to 85°C.
N7 termination type for secure PCB mounting. Chip-LAN transformer with EMI suppression capabilities. Halogen-free and PoE+ compatible design. Explore the full range of LAN Ethernet Transformers and related products at EnvMart to meet your industrial and commercial networking needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Bourns SM453230-231N7YP transformer has an inductance value of 230μH.
This model features an insertion loss rating of -1.5dB, which helps minimize signal degradation.
It operates effectively within a temperature range of -40°C to 85°C, making it suitable for harsh industrial environments.
The transformer uses N7 termination type, ensuring secure and standardized connections on printed circuit boards.
Yes, it is compatible with IEEE 802.3 Ethernet standards, supporting both 1G and 2.5G Ethernet communication.
The depth of this transformer is 2.9mm, making it suitable for dense PCB layouts.
This transformer has a single output with a 1:1 turns ratio.
It is designed for use in industrial and commercial network hardware applications, such as Ethernet switches and routers.
This transformer integrates discrete components, including a chip-LAN transformer and common mode chip inductor, to minimize EMI.
Yes, the design of this transformer is compliant with halogen-free materials.
The Bourns SM453230-231N7YP transformer is manufactured in Taiwan.
The N7 termination type ensures secure and standardized mounting on printed circuit boards.
