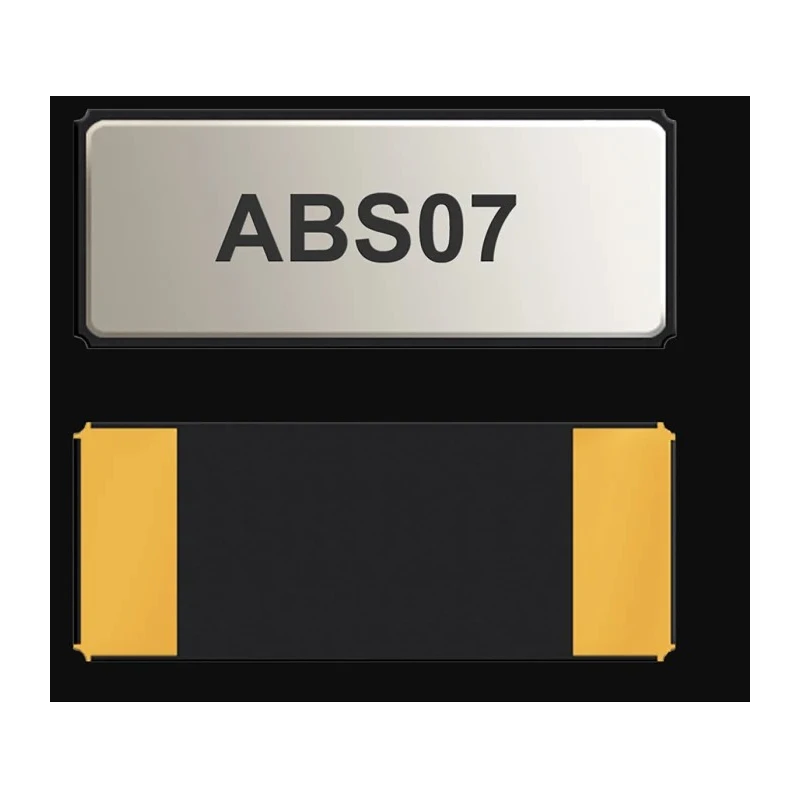

Abracon 32.768 kHz Crystal ±10 ppm Surface Mount 2-Pin 0.9 mm Height 3.2 mm Length 1.5 mm Width ABS07-166-32.768KHZ-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 0.9mm |
| Length | 3.2mm |
| Model | ABS07-166-32.768KHZ-T |
| Packaging | Tape & Reel |
| Width | 1.5mm |
| Mount Type | Surface |
| Series | ABS07 |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Standard Frequency | 32.768kHz |
| Load Capacitance | 7pF |
| Series Resistance | 70kΩ |
Key Features
- Standard frequency of 32.768 kHz for precise timekeeping applications.
- Surface mount package with compact dimensions of 3.2 mm length, 1.5 mm width, and 0.9 mm height.
- Load capacitance rated at 7 pF optimized for oscillator circuits.
- Two-pin configuration suitable for surface mount technology.
- Operating temperature range from -40°C to 85°C for robust environmental performance.
- Low series resistance of 70 kΩ enhancing signal quality and efficiency.
- Sealed ceramic package delivering excellent heat resistance and environmental protection.
- Ideal for wireless communications, PDA, smartphone applications, and measuring equipment.
Product Description
Abracon ABS07-166-32.768KHZ-T is a precision 32.768 kHz crystal designed for surface mount applications featuring a 2-pin configuration and ultra-compact dimensions of 3.2 mm length, 1.5 mm width, and 0.9 mm height. This crystal delivers excellent stability with ±10 ppm frequency tolerance and is optimized with a load capacitance of 7 pF, suitable for oscillator circuits in high-density PCB layouts.
The ceramic sealed package provides superior environmental resistance and heat tolerance, allowing operation across a wide temperature range from -40°C to 85°C. With a low series resistance of 70 kΩ, the crystal ensures minimal signal loss and reliable oscillation characteristics.
This component is ideal for industrial and commercial electronic equipment including wireless communication devices, personal digital assistants, smartphones, and various measuring instruments requiring precise timing and frequency stability.
Industry standard 32.768 kHz frequency with tight ±10 ppm tolerance. Surface mount 2-pin package designed for compact PCB layouts. Low profile at 0.9 mm height for high-density circuit board integration. Wide operating temperature range from -40°C to 85°C supporting harsh environments.
Seam-sealed ceramic package for durability and heat resistance. 7 pF load capacitance optimized for oscillator performance. 70 kΩ series resistance for efficient signal conduction. Suitable for wireless communication, PDA, smartphone, and measurement applications.
Explore further Abracon products and high-precision Crystal Units in the Electronics Components category on EnvMart for reliable industrial and commercial use.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 32.768 kHz, which is commonly used for precise timekeeping applications.
This model has compact dimensions of 3.2 mm in length, 1.5 mm in width, and 0.9 mm in height.
The load capacitance of this crystal is rated at 7 pF, optimized for oscillator circuits.
It has a low series resistance of 70 kΩ, which enhances signal quality and efficiency.
The operating temperature range for this crystal unit is from -40°C to 85°C, suitable for robust environmental performance.
This model features a sealed ceramic package designed for surface mount applications, providing excellent heat resistance and environmental protection.
The Abracon ABS07-166-32.768KHZ-T has a two-pin configuration suitable for surface mount technology.
This crystal unit complies with RoHS standards, ensuring it meets environmental regulations.
It is ideal for use in wireless communications, personal digital assistants (PDAs), smartphones, and various measuring instruments requiring precise timing.
The crystal unit is packaged in tape and reel format, which is common for surface mount components.
This crystal unit is part of the ABS07 series, which includes various surface mount crystals.
The country of origin for this crystal unit is India.
