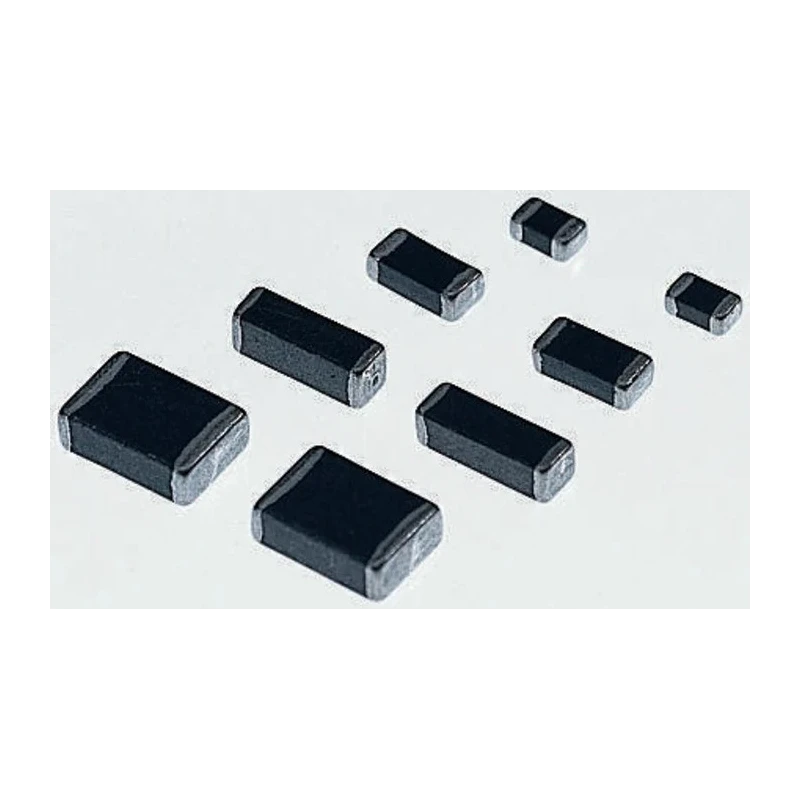

Wurth Elektronik WE-MI 0805 Unshielded Multilayer Surface Mount Inductor with Ferrite Core 100 nH ±10% 7447902
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Wurth Elektronik |
| Dimensions | 2.0 x 1.25 x 0.9 mm |
| Height | 0.9mm |
| Length | 2mm |
| Model | 7447902 |
| Depth | 1.2mm |
| Operating Temp | -25 to +85 °C |
| Packaging | Tape & Reel |
| Series | WE-MI |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 100nH |
| Standards/Approvals | IEC 61249-2-21, JEDEC JS709B, REACH, RoHS |
| Package/Case | 0805 |
| Maximum DC Current | 250mA |
| Maximum DC Resistance | 300mΩ |
| Inductance Tolerance | ±10 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 255MHz |
| Minimum Quality Factor | 20 |
| Inductor Construction | Multilayer |
Key Features
- The inductor features a maximum DC current rating of 250 mA.
- It offers a maximum DC resistance of 300 mΩ for efficient performance.
- The component has a maximum operating temperature of 125°C and minimum of -55°C.
- Packaging is provided in tape and reel format suitable for automated assembly.
- Constructed using a ferrite core with multilayer inductor construction for stable inductance.

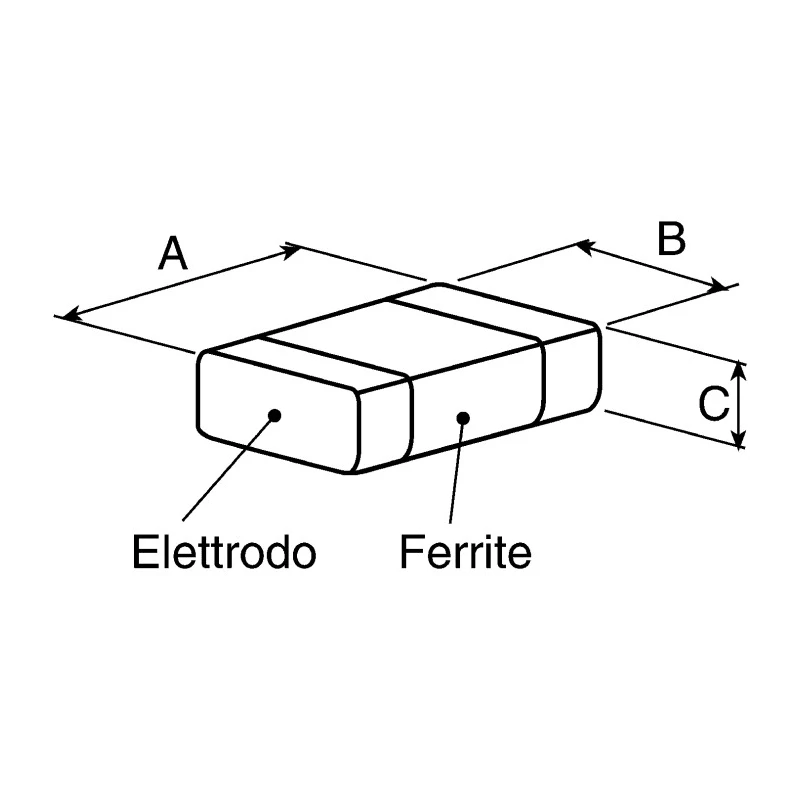

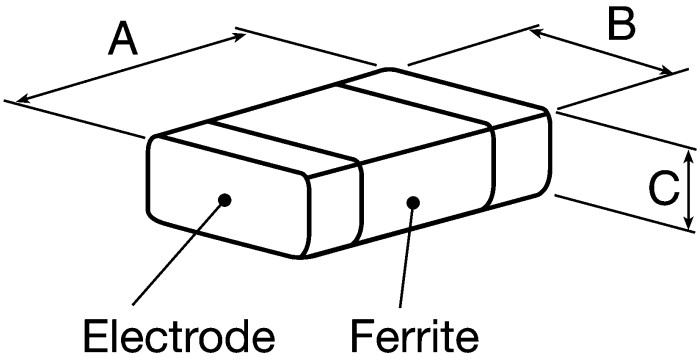

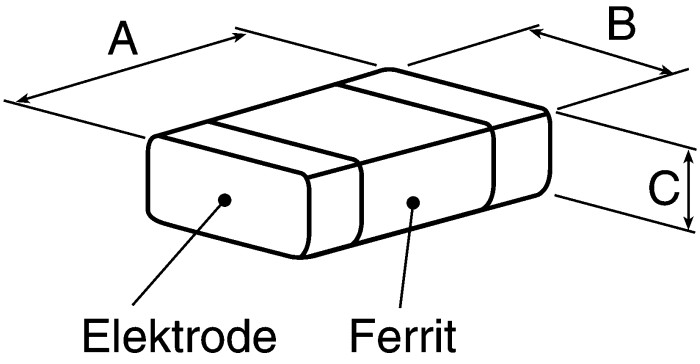

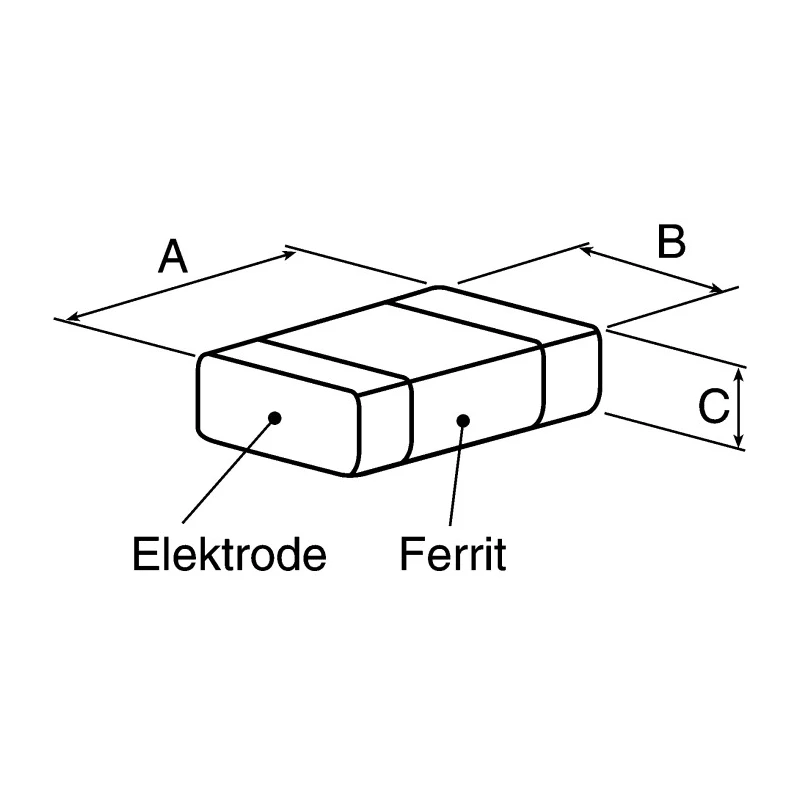

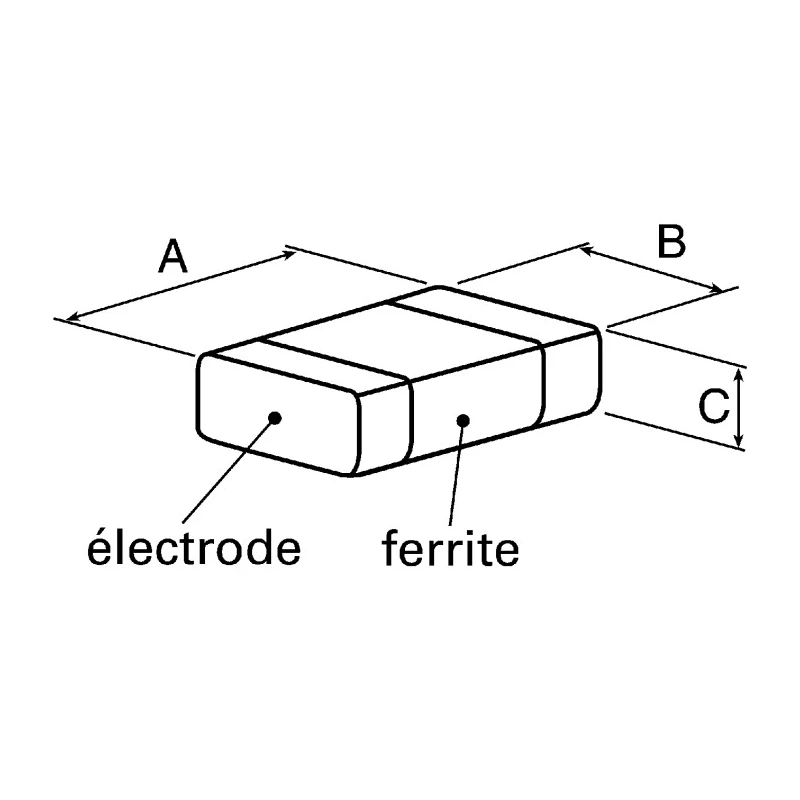

- The inductor's dimensions are compact, measuring 2.0 x 1.25 x 0.9 mm (LxWxH).
- It is RoHS compliant and meets IEC 61249-2-21, JEDEC JS709B, and REACH standards.
- Designed for telecommunications, computers, filter, oscillator, and adaptor network applications.
Product Description
Wurth Elektronik 7447902 is a precision 0805 unshielded multilayer surface mount inductor incorporating a ferrite core, providing an inductance value of 100 nH with a tolerance of ±10%. This multilayer construction ensures high inductance stability and low DC resistance rated at a maximum of 300 mΩ.
Operating between -55°C to 125°C, this inductor is well-suited for demanding environmental conditions. It features a compact form factor with dimensions of 2.0 x 1.25 x 0.9 mm (LxWxH) and is supplied in tape and reel packaging for efficient automated PCB assembly.
Compliant with IEC 61249-2-21, JEDEC JS709B, REACH, and RoHS standards, the WE-MI series inductors are designed specifically for applications in telecommunications, computing, filtering circuits, oscillators, and adapter networks. The ferrite core and multilayer build minimize undesirable coupling effects, providing excellent performance in dense PCB layouts.
The inductor supports up to 250 mA maximum DC current. Its magnetically screened design ensures low DC resistance and low temperature drift. Small self-resonant frequency of 255 MHz allows operation in high frequency circuits.
Minimum quality factor of 20 ensures efficient inductance behavior. Packaging in multiples of 10 units facilitates batch processing. Country of origin: Taiwan, Province Of China.
This surface mount inductor is ideal for industrial electronics, telecommunications infrastructure, and computer hardware manufacturing sectors. Discover more products in the Surface Mount Inductor category to support your design and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductor has an inductance value of 100 nH with a tolerance of ±10%.
This model measures 2.0 x 1.25 x 0.9 mm (LxWxH).
It supports a maximum DC current rating of 250 mA.
The maximum DC resistance is rated at 300 mΩ.
The inductor operates between -55°C and 125°C.
The maximum self-resonant frequency is 255 MHz.
It is packaged in tape and reel format, suitable for automated assembly.
It is compliant with IEC 61249-2-21, JEDEC JS709B, REACH, and RoHS standards.
This model features a multilayer construction using a ferrite core.
It is designed for telecommunications, computing, filtering circuits, oscillators, and adapter networks.
The minimum quality factor is 20, ensuring efficient inductance behavior.
The country of origin for this inductor is Taiwan, Province Of China.
