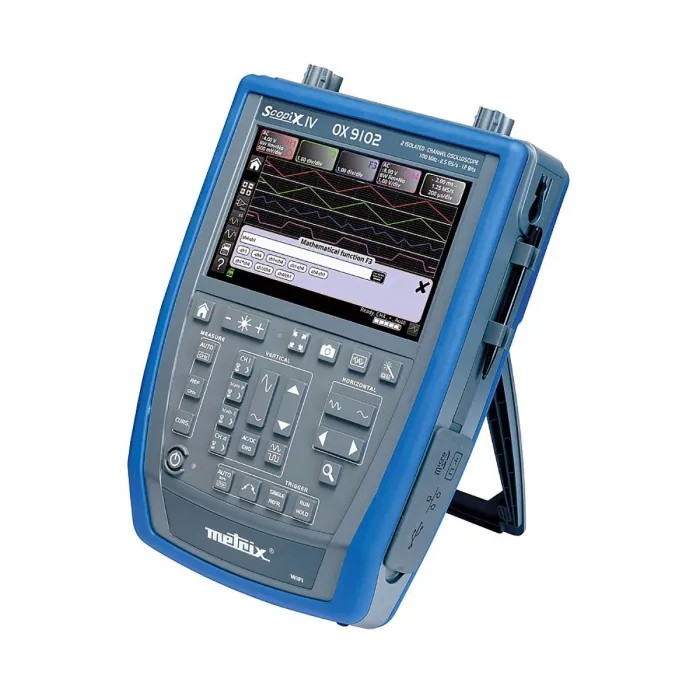

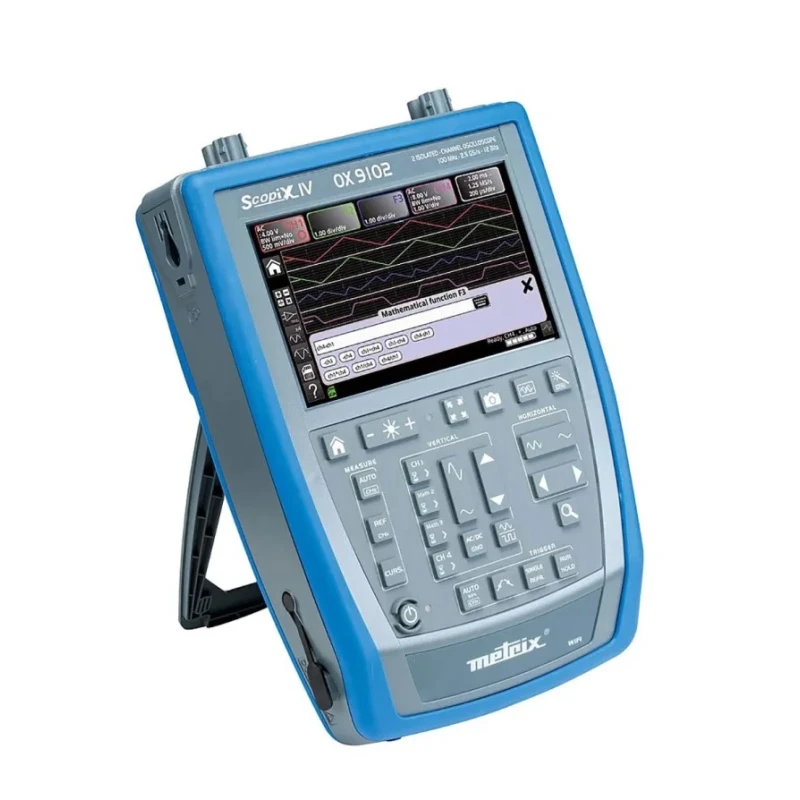

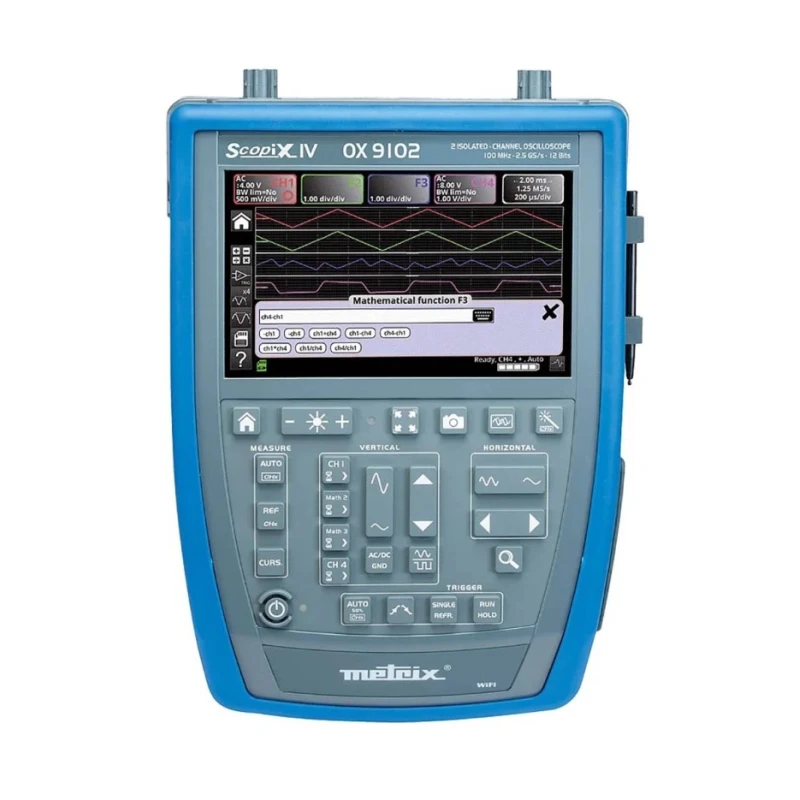

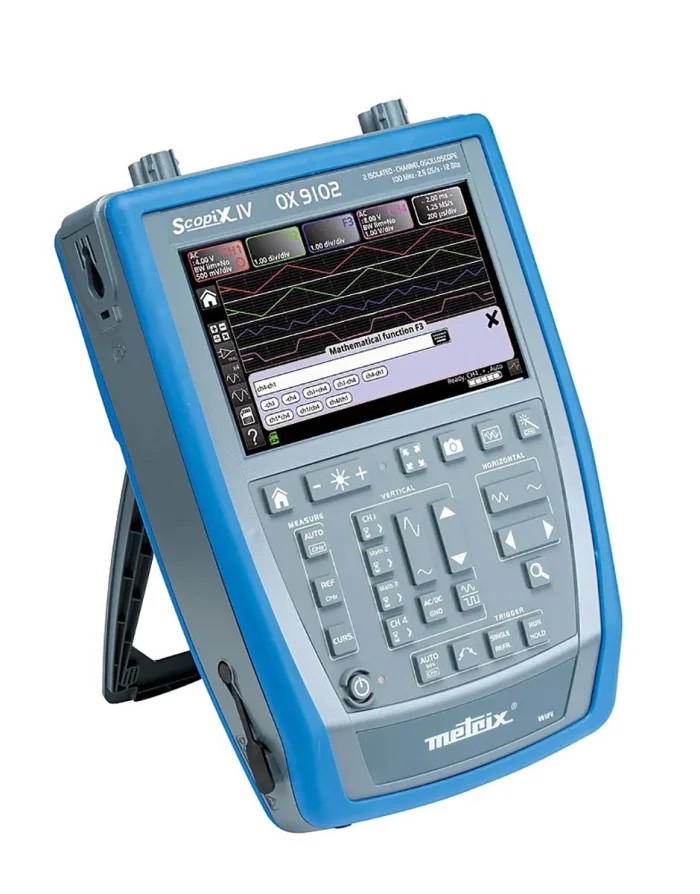

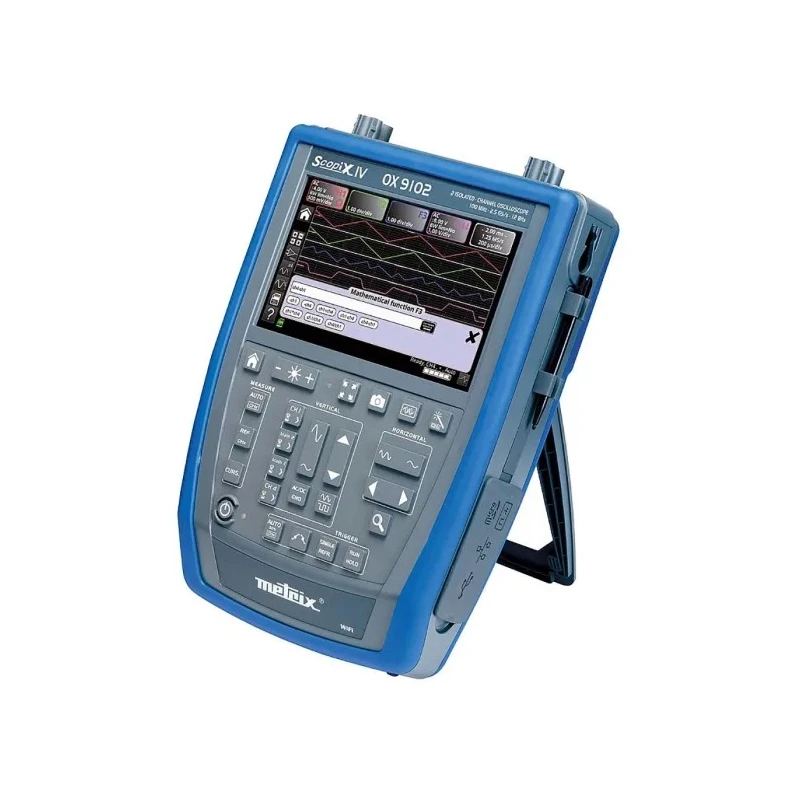

Metrix SCOPIX IV Series 100 MHz Handheld Digital Storage Oscilloscope 2 Channels OX9102
Specifications
| Country of Origin | France |
|---|---|
| Display Type | TFT LCD |
| Display | screen |
| Brand | Metrix |
| Battery Life | 8h |
| Battery type | Lithium-ion |
| Height | 292.5mm |
| Model | OX9102 |
| Depth | 210.6mm |
| Width | 66.2mm |
| Bandwidth | 100MHz |
| Sampling rate | 2 |
| Series | SCOPIX IV |
| Screen Size | 7 in |
| Number Of Channels | 2 |
| Vertical Resolution | 12 bit |
| Memory Depth | 100kpts |
| Rise Time | 3.5ns |
| Waveform Refresh Rate | 100per sec |
| Interface Type | Ethernet, USB, WiFi |
| Oscilloscope Type | Handheld |
| Minimum Vertical Sensitivity | 2.5mV/div |
| Safety Category Level | CAT III |
| Safety Category Voltage | 600V |
| Oscilloscope Form | Digital Storage |
| Minimum Time Base | 1ns/div |
| Maximum Vertical Sensitivity | 200V/div |
| Maximum Time Base | 200s/div |
| Large storage capacity | SD, SDHC, SDXC in addition to the 2 GB internal memory, μSD above 32 GB |
| All the means of communication are available to optimize your analyses | wired Ethernet and WIFI, USB and μSD |
Key Features
- Equipped with a 7-inch TFT LCD display providing clear visual output.
- Features 100,000 points memory depth for extended waveform recording.
- Supports Ethernet, USB, and WiFi interfaces for versatile connectivity.
- Powered by a rechargeable lithium-ion battery offering up to 8 hours of operation.
- Advanced 12-bit vertical resolution ensures high measurement accuracy.
- Includes multiple analysis modes such as oscilloscope, multimeter, recorder, and harmonic analysis.
- Safety rated CAT III with 600V voltage category for reliable field use.
- Compact dimensions of 292.5mm height, 210.6mm depth, and 66.2mm width for portability.
Product Description
Metrix OX9102 handheld digital storage oscilloscope from the SCOPIX IV Series features a 100 MHz bandwidth with 2 totally isolated channels, making it ideal for field and laboratory measurements requiring high safety and accuracy.
This oscilloscope supports advanced analytical modes including oscilloscope, multimeter, recorder, and harmonic analysis, allowing versatile testing of electrical signals with precise diagnostics capabilities.
The 7-inch TFT LCD display and 100k points memory depth enhance duration and clarity in recording signal waveforms, while the 12-bit converter provides a vertical resolution with sensitivity down to 0.0025%.
Connectivity options include Ethernet, USB, and WiFi interfaces, ensuring seamless data transfer and remote analysis. It operates on a rechargeable lithium-ion battery for up to 8 hours, suitable for on-site and extended use.
Safety is ensured by CAT III 600V certification, making the OX9102 suitable for industrial and commercial electrical testing environments requiring stringent safety levels. 7-inch TFT LCD touch display enhances user interface and visibility.
100 MHz bandwidth with 2 isolated channels supports diverse testing scenarios. Memory depth of 100k points per channel ensures detailed waveform capture. Multiple measurement modes and automatic functions facilitate efficient diagnostics.
Includes advanced trigger options such as pulse width, counting, and delay. Real-time FFT and harmonic analysis optimize noise and distortion identification. Powered by a lithium-ion battery enabling up to 8 hours of field operation.
Compact form factor with dimensions 292.5 x 66.2 x 210.6 mm supports portability. This model is suited for industrial, laboratory, HVAC, and electronic manufacturing environments where precision and safety in electrical testing are critical.
Explore the SCOPIX IV range and other high-performance Oscilloscopes at EnvMart for your measurement and diagnostics needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a bandwidth of 100 MHz, making it suitable for a variety of testing scenarios.
The OX9102 features 2 isolated channels for versatile measurements.
It has a memory depth of 100,000 points per channel, allowing for detailed waveform capture.
The oscilloscope supports Ethernet, USB, and WiFi interfaces for versatile connectivity options.
This model offers a 12-bit vertical resolution, ensuring high measurement accuracy.
It is powered by a rechargeable lithium-ion battery that provides up to 8 hours of operation.
The dimensions of this model are 292.5 mm in height, 210.6 mm in depth, and 66.2 mm in width.
The OX9102 is safety rated CAT III with a 600V voltage category, suitable for field use.
It includes multiple analysis modes such as oscilloscope, multimeter, recorder, and harmonic analysis.
The minimum vertical sensitivity is 2.5 mV/div, allowing for fine measurements.
The rise time for this model is 3.5 ns, enabling accurate signal measurement.
This oscilloscope is suited for industrial, laboratory, HVAC, and electronic manufacturing environments.
