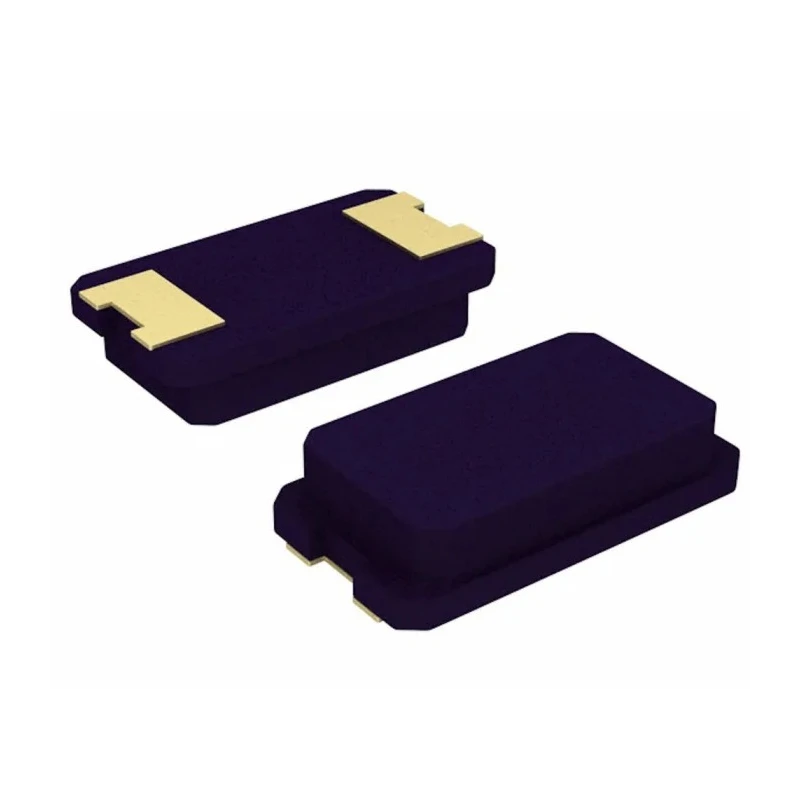

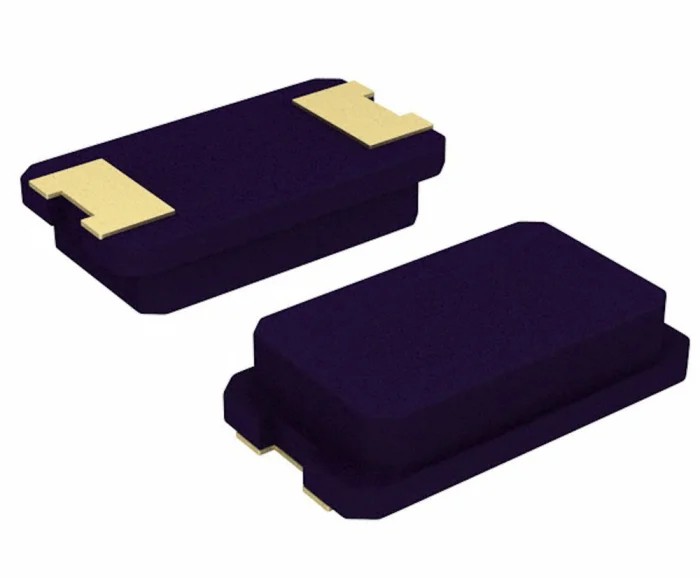

Abracon 18.432 MHz Crystal ±20 ppm Frequency Tolerance Surface Mount 1.4 mm Height 6 mm Length 3.5 mm ABM7-18.432MHZ-D2Y-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 1.4mm |
| Length | 6mm |
| Model | ABM7-18.432MHZ-D2Y-T |
| Packaging | Tape & Reel |
| Width | 3.5mm |
| Mount Type | Surface |
| Series | ABM7 |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS, REACH |
| Standard Frequency | 18.432MHz |
| Load Capacitance | 18pF |
| Series Resistance | 50Ω |
Key Features
- Operates as a ceramic SMD micro miniature crystal with a compact form factor.
- Features a height of 1.4 mm, length of 6 mm, and width of 3.5 mm for space-efficient PCB design.
- Load capacitance rating is 18 pF ensuring stable oscillation in circuits.
- Operates within a temperature range from -40°C to 85°C for industrial reliability.
- Has a frequency stability of ±30 ppm and series resistance of 50 Ω for precise performance.
- Compliant with RoHS and REACH standards ensuring environmental safety.
- Packaged in tape and reel format to facilitate automated SMT assembly processes.
- Designed for applications in thin equipment, computers, modems, and wide temperature industrial uses.
Product Description
The Abracon ABM7-18.432MHZ-D2Y-T is a ceramic surface mount crystal operating at a standard frequency of 18.432 MHz with a frequency tolerance of ±20 ppm. Its ultra-low profile of 1.4 mm height combined with the compact 6 mm length and 3.5 mm width makes it particularly suited for thin and dense electronic assemblies.
This ABM7 series crystal showcases superior heat resistant glass sealing, ensuring high reliability in demanding environments. The load capacitance of 18 pF supports stable oscillator performance, complemented by a frequency stability of ±30 ppm and series resistance of 50 Ω to maintain signal integrity across a broad temperature range from -40°C to 85°C.
Fully compliant with RoHS and REACH directives, this crystal suits environmentally conscious electronics manufacturing processes. It is supplied in tape and reel packaging to streamline surface mount technology (SMT) assembly lines, supporting high volume production efficiently.
Key industrial applications include use in thin equipment designs such as compact computers, modems, and various wide-temperature industrial electronics requiring precise timing components.
Operates as a ceramic SMD micro miniature crystal with a compact form factor. Features a height of 1.4 mm, length of 6 mm, and width of 3.5 mm for space-efficient PCB design. Load capacitance rating is 18 pF ensuring stable oscillation in circuits.
Operates within a temperature range from -40°C to 85°C for industrial reliability. Has a frequency stability of ±30 ppm and series resistance of 50 Ω for precise performance. Compliant with RoHS and REACH standards ensuring environmental safety.
Packaged in tape and reel format to facilitate automated SMT assembly processes. Designed for applications in thin equipment, computers, modems, and wide temperature industrial uses.
This Abracon ABM7-18.432MHZ-D2Y-T crystal is an ideal choice for engineers and manufacturers seeking a reliable and compact oscillator solution for high density printed circuit boards in industrial and commercial electronic assemblies.
Explore our comprehensive range of Crystal Units and other electronics components at EnvMart to enhance your designs and manufacturing capabilities.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this model is 18.432 MHz.
This unit has a height of 1.4 mm, a length of 6 mm, and a width of 3.5 mm.
The load capacitance rating is 18 pF, which ensures stable oscillation in circuits.
The frequency tolerance is ±20 ppm.
It operates within a temperature range from -40°C to 85°C.
The series resistance is 50 Ω, which helps maintain signal integrity.
It is packaged in tape and reel format to facilitate automated SMT assembly processes.
It is compliant with RoHS and REACH standards, ensuring environmental safety.
This model uses a surface mount type for installation.
This crystal belongs to the ABM7 series.
The country of origin for this crystal is India.
