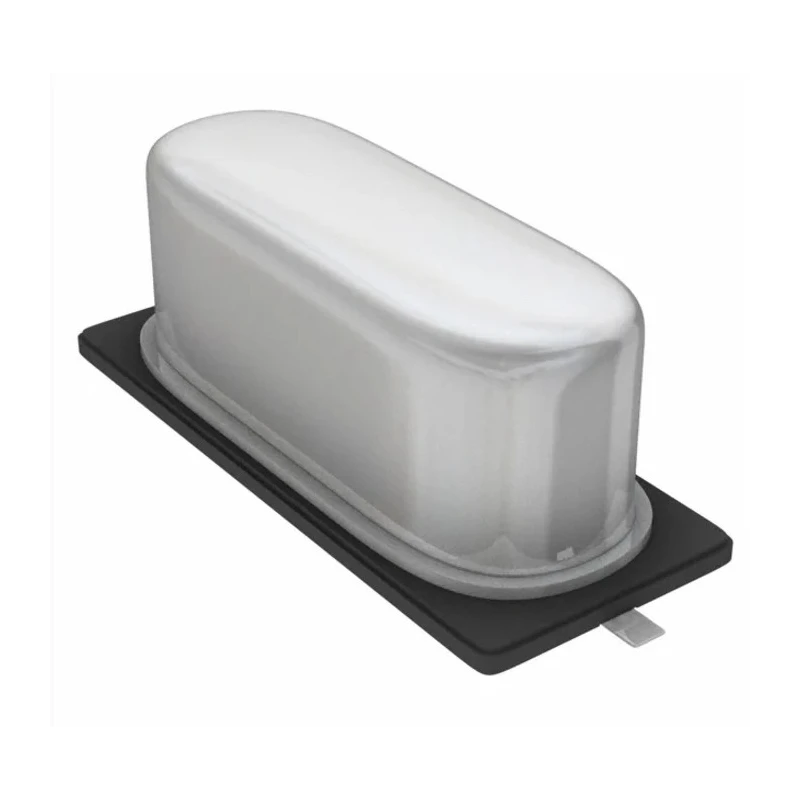

Abracon 12 MHz Surface Mount HC-49 Crystal ±30 ppm Frequency Tolerance Load Capacitance 18pF ABLS-12.000MHZ-B4-T

The Abracon ABLS-12.000MHZ-B4-T is a high-quality 12 MHz crystal unit designed with a surface mount HC-49 package. Featuring a frequency tolerance of ±30 ppm and load capacitance of 18pF, this device is ideal for demanding electronic components where frequency stability is critical.

Its compact form factor with dimensions of 11.4 mm length, 4.7 mm width, and 4.2 mm height aids in space-efficient PCB designs. The crystal operates efficiently over a temperature range of -20°C to 70°C, making it suitable for standard electronic applications including computers, modems, microprocessors, and wireless systems.

With a series resistance of 50Ω, this crystal ensures reliable signal integrity. The unit meets stringent standards such as REACH and RoHS, supporting environmentally responsible manufacturing and use.

Packaging in tape and reel format enhances compatibility with automated production lines, enabling efficient assembly processes in industrial and commercial electronics manufacturing.

Surface mount HC-49 package for optimal PCB integration. Frequency tolerance of ±30 ppm for precision timing. Load capacitance of 18pF for stable oscillator performance. Operational temperature range from -20°C to 70°C. Series resistance of 50Ω.

Compliance with REACH and RoHS directives. Tape and reel packaging for automated assembly. Dimensioned at 11.4 mm x 4.7 mm x 4.2 mm.

This Abracon crystal unit is extensively used in electronics industries for applications requiring high frequency stability and reliability, including industrial, communication, and computing equipment. Explore additional Abracon components and related Crystal Units at EnvMart for your design and manufacturing needs.
