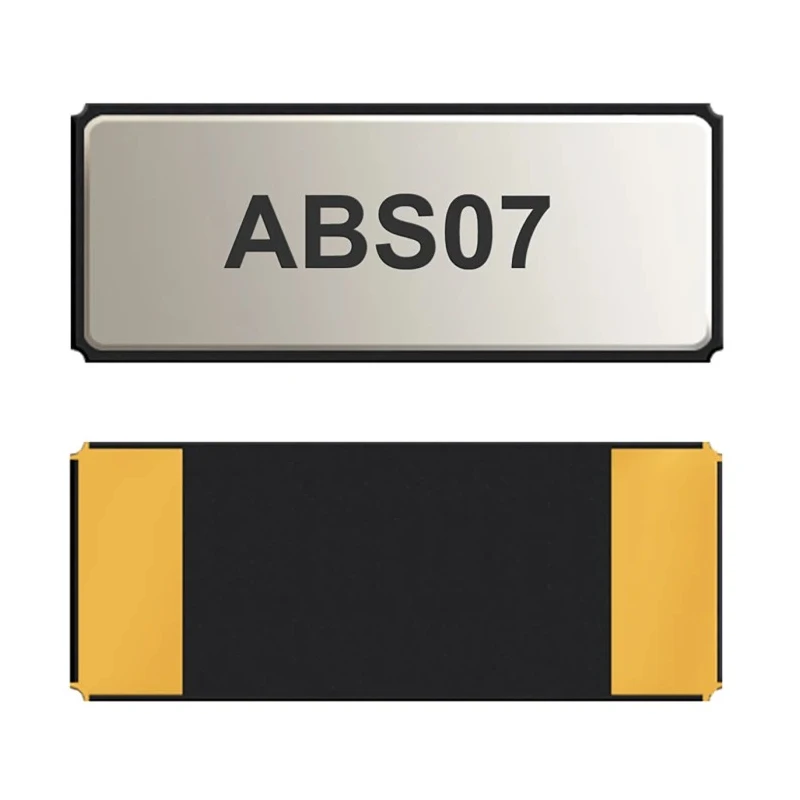

Abracon 32.768 kHz Crystal Unit ±10 ppm Surface Mount 2-Pin Plastic Package 3.2mm x 1.5mm x 0.9mm ABS07-32.768KHZ-1-T
Specifications
| Country of Origin | China |
|---|---|
| Brand | Abracon |
| Height | 0.9mm |
| Length | 3.2mm |
| Model | ABS07-32.768KHZ-1-T |
| Packaging | Tape & Reel |
| Width | 1.5mm |
| Mount Type | Surface |
| Series | ABS07 |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS, REACH |
| Pin Count | 2 |
| Standard Frequency | 32.768kHz |
| Load Capacitance | 12.5pF |
| Series Resistance | 70kΩ |
Key Features
- Operates at a frequency of 32.768 kHz suitable for low-frequency applications.
- Comes in a plastic surface mount package with dimensions 3.2 mm length, 1.5 mm width, and 0.9 mm height.
- Load capacitance of 12.5 pF ensures stable oscillator performance.
- Designed to operate reliably within a temperature range of -40°C to 85°C.
- Series resistance rated at 70 kΩ for optimal signal integrity.
- Packaged in tape and reel for automated PCB assembly efficiency.
- Complies with RoHS and REACH standards for environmental safety.
- Manufactured to the ABS07 series specification ensuring quality and consistency.
Product Description
Abracon ABS07-32.768KHZ-1-T 32.768 kHz Crystal Unit is a high-precision frequency component designed for surface mount applications. It features a 2-pin plastic package measuring 3.2 mm in length, 1.5 mm in width, and 0.9 mm in height, perfect for compact electronics.
This crystal unit offers ±10 ppm frequency tolerance, ensuring excellent signal accuracy and stability. Its load capacitance of 12.5 pF and series resistance of 70 kΩ make it suitable for low-frequency oscillator circuits requiring reliable performance.
Designed to operate in extreme temperature conditions from -40°C up to 85°C, it is ideal for industrial and commercial applications such as wireless communications, handheld devices including PDAs, and other electronic circuits demanding precise timing.
The product is packaged in tape and reel format to support efficient automated PCB assembly lines. It conforms to RoHS and REACH environmental standards guaranteeing chemical safety and compliance.
Manufactured in China as part of the ABS07 series, this crystal unit provides dependable performance tailored for commercial and industrial electronics needing robust and stable timing sources.
Operates at 32.768 kHz frequency with ±10 ppm tolerance. Compact surface mount package with precise dimensions. Wide operating temperature range prevents performance degradation. RoHS and REACH compliant for environmentally safe applications.
Packaged for automated machine insertion. This Abracon crystal unit is an excellent choice for industrial, laboratory, and commercial electronics projects that require accurate frequency timing. Browse our extensive selection of Crystal Units and related electronic components at EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crystal unit operates at a frequency of 32.768 kHz, making it suitable for low-frequency applications.
It has a length of 3.2 mm, a width of 1.5 mm, and a height of 0.9 mm, designed for compact electronics.
The load capacitance of this crystal unit is 12.5 pF, which ensures stable oscillator performance.
The series resistance is rated at 70 kΩ, which helps maintain optimal signal integrity.
It is designed to operate reliably within a temperature range of -40°C to 85°C.
It is packaged in tape and reel format, facilitating efficient automated PCB assembly.
It complies with RoHS and REACH standards, ensuring environmental safety and chemical compliance.
This model utilizes a surface mount type, suitable for compact electronic designs.
The pin count for this crystal unit is 2, allowing for straightforward integration into circuits.
It is part of the ABS07 series, ensuring consistent quality and performance.
It is ideal for applications in wireless communications, handheld devices, and other electronic circuits requiring precise timing.
This unit is manufactured in China, adhering to the specifications of the ABS07 series.
