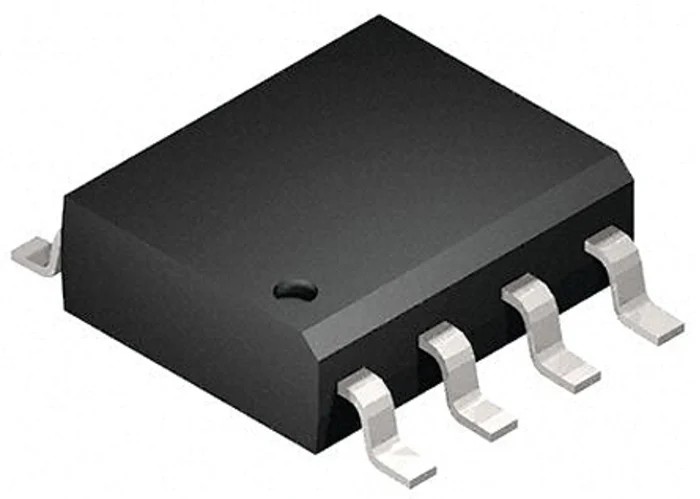

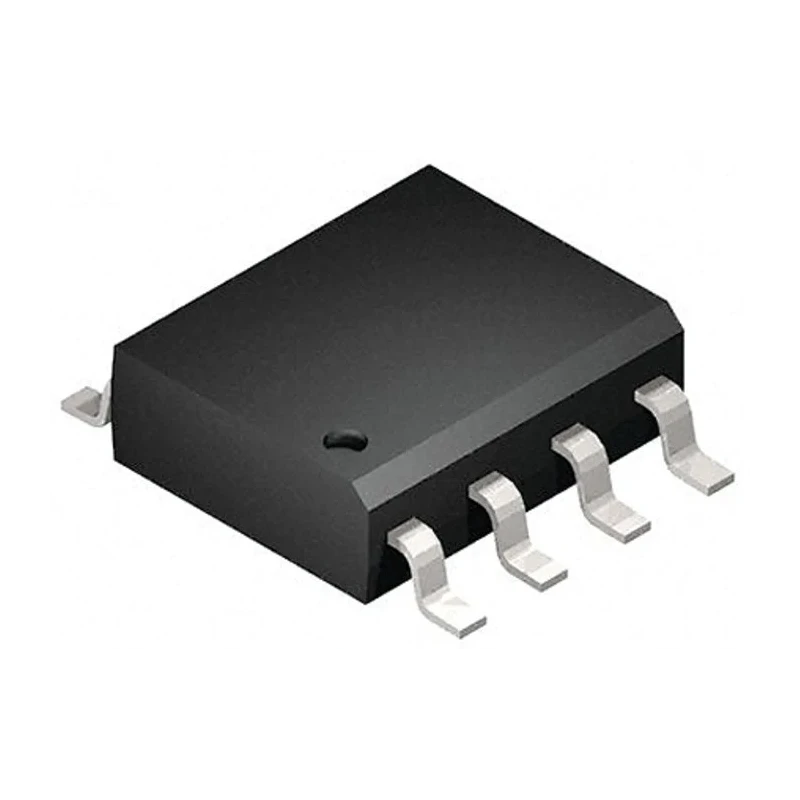

STMicroelectronics Operational Amplifier Dual Channel 400 kHz Gain Bandwidth Product 5.5 V SOIC 8-Pin TSZ122IYDT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.5mm |
| Length | 5mm |
| Model | TSZ122IYDT |
| Width | 4mm |
| Mount Type | Surface |
| Series | TSZ122 |
| Output Current | 18mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| GBP - Gain Bandwidth Product | 400kHz |
| Input Bias Current | 300 pA |
| Slew Rate | 0.19V/μs |
| Input Offset Current | 0.6 nA |
| Low supply voltage | 1.8 - 5.5 V |
| Extended temperature range | -40 to 125 °C |
| High tolerance to ESD | 4 kV HBM |
| Micro-packages | SC70-5, DFN8 2x2, and QFN16 3x3 |
Key Features
- Features rail-to-rail input and output for enhanced signal range.
- Operates at supply voltages from 1.8 V to 5.5 V.
- Ultra-low input bias current of 300 pA ensures precision.
- Includes automotive standard AEC-Q100 qualification for reliability.
- Compact SOIC 8-pin surface-mount package with dimensions 5mm x 4mm x 1.5mm.
- Low power consumption with maximum 40 μA current at 5 V supply.
- Wide operating temperature range from -40°C to 125°C.
- High tolerance to electrostatic discharge with 4 kV HBM rating.
Product Description
STMicroelectronics TSZ122IYDT is a high precision dual operational amplifier designed for sensor interfaces, battery-powered devices, and portable applications. It offers a gain bandwidth product of 400 kHz and supports rail-to-rail input and output, ensuring maximum dynamic range even at low supply voltages from 1.8 V up to 5.5 V.
The device consumes less than 40 μA current at a 5 V supply while providing excellent accuracy, with an input offset voltage of 5 μV max at 25 °C and 8 μV over the extended temperature range from -40 °C to 125 °C. Its ultra-low input bias current of 300 pA and low input offset current of 0.6 nA ensure minimal signal distortion and drift.
Compliant with automotive standard AEC-Q100, the TSZ122IYDT also provides robust protection against electrostatic discharge up to 4 kV HBM, enhancing device reliability in harsh environments. The compact SOIC 8-pin surface-mount package (5 mm length, 4 mm width, 1.5 mm height) facilitates space-efficient PCB layouts.
Typical applications include high-accuracy sensor signal conditioning, portable instrumentation, and low-power analog signal amplification. The TSZ12x series also includes the TSZ121 single and TSZ124 quad versions, sharing industry-standard pinouts for ease of integration.
Features rail-to-rail input and output for enhanced signal range. Operates at supply voltages from 1.8 V to 5.5 V. Ultra-low input bias current of 300 pA ensures precision. Includes automotive standard AEC-Q100 qualification for reliability.
Compact SOIC 8-pin surface-mount package with dimensions 5mm x 4mm x 1.5mm. Low power consumption with maximum 40 μA current at 5 V supply. Wide operating temperature range from -40°C to 125°C. High tolerance to electrostatic discharge with 4 kV HBM rating.
Explore the extensive range of Operational Amplifiers and semiconductors available on EnvMart for your electronic design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 400 kHz.
It operates at supply voltages ranging from 1.8 V to 5.5 V.
This model features an ultra-low input bias current of 300 pA.
The dimensions of the SOIC 8-pin package are 5 mm in length, 4 mm in width, and 1.5 mm in height.
The maximum output current is 18 mA.
It has a wide operating temperature range from -40°C to 125°C.
This operational amplifier complies with the automotive standard AEC-Q100.
The input offset voltage is a maximum of 5 μV at 25 °C.
It has a high tolerance to electrostatic discharge with a rating of 4 kV HBM.
The slew rate of this operational amplifier is 0.19 V/μs.
Typical applications include high-accuracy sensor signal conditioning, portable instrumentation, and low-power analog signal amplification.
The input offset current is 0.6 nA.
